Using innovative MPPT technology with high tracking efficiency up to 99 percent.The charge controller efficiently charges your off-grid solar battery bank safely day in, day out.LCD panel display design; Multiple load control modes.Feature:
Operating voltage: 12V / 24V can be automatically identifiedFloat voltage: 13.7V / 27.4V adjustableProtection voltage: 10.7V / 21.4V adjustableRecovery voltage: 12.6V / 25.2V adjustableSolar panel voltage: 50VIncreased charging voltage: 14.4 V / 28.8 VUSB output: 5V / 3AAir loss: 10mA
Details:1. Industrial-grade master chip, 16 AD sampling accuracy, temperatureCharging current, discharge current accurate real-time display, power generation at a glance;2. Automatic focusing MPPT tracking charging, high charging efficiencyNon-stop detection during charging, bidirectional focusing tracking;3. Large-screen LCD display, adjustable charging and discharging parameters;Ultra-wide charge and discharge adjustable, as long as you understand the characteristics of the battery set;And its corresponding charging parameters,you can charge a battery;When the output is off, the time can be adjusted, which is more convenient(on the market, there is no point adjustment);4. A complete three-phase charge management, effectively protect the battery, the battery is more durable;5. Built-in overheating, overcurrent, short circuit, open circuit protection, reverse connection protection;When the fault is eliminated, the controller automatically recovers, does not damage the device.6. Bidirectional MOS tube anti-backflow circuit, high-power charging mode, ultra-low heat;7. R5.0 solar charging DC plug, R5.0 DC lamp output DC plug, convenient connection.

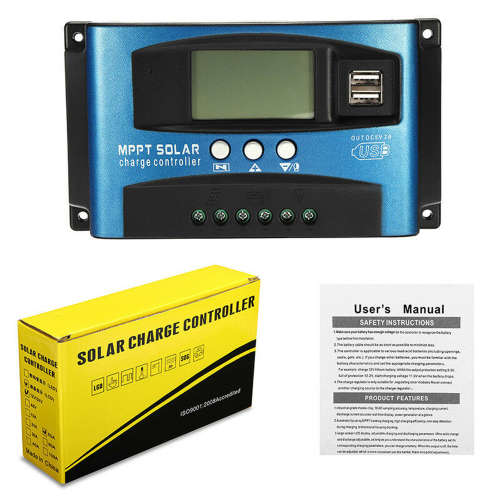

Package include:1*30A MPPT Smart Solar Charge Controller with LCD Display1*Manual user
Q&A:1.How many watts (W) of solar panels can be connected to 30A, and 60A?30A Within 360W, 60A within 720W
2. Q: Does this controller support lithium batteries?A: The new controller is available with lead acid and lithium batteries.
3. Q: My solar panel is 36V 200W, can I charge 12V battery?Answer: Charge 12V battery, solar panel working voltage can be between 17V and 23V; For 24V battery, solar panel working voltage can be between 36V and 46V.Please confirm that the power and Solar panel working voltage the are within this range. If it's too high, it will damage the controller.
4. Q: Can the inverter be connected to the load side of the controller?Answer: Please connect the inverter directly to the battery and not to the load terminal of the controller.
5. Q: Does the controller have a requirement for battery capacity?A: No, as long as the voltage corresponds to it (but the maximum current of the board and the battery capacity should correspond). For example, the current of the solar panel is 5 amps, the battery capacity is preferably 50 AH, the current of the solar panel is 10 A, and the battery capacity is preferably 100 AH. Do not use a large board to charge a small battery, which may be dangerous.

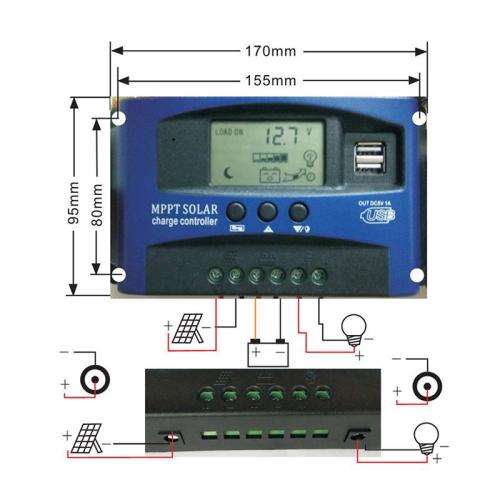

6. Q: How do you connect the solar panels, batteries, and controllers?A: Please be sure to connect the battery first (to ensure that the battery is fully charged), then connect the solar panel. When disassembling, please remove the solar panel first, then remove the battery, please connect it exactly as this order, otherwise the controller and other components probably damaged.
