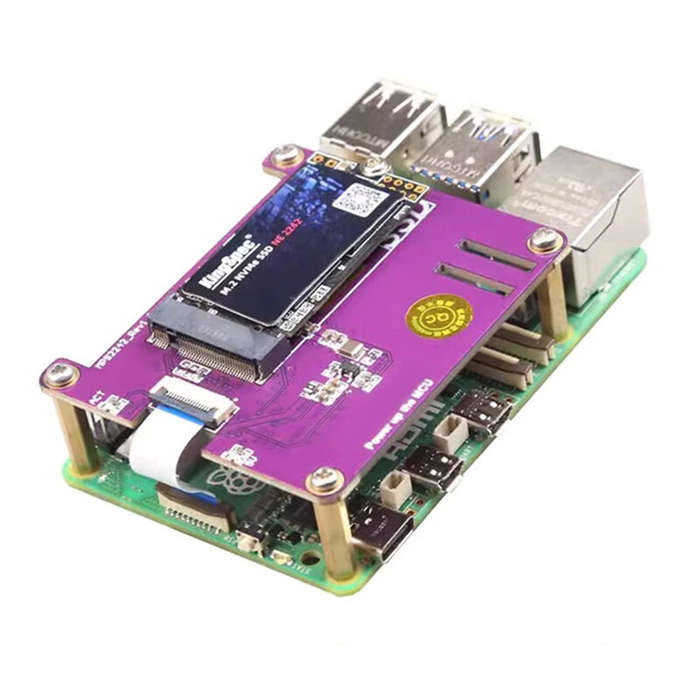

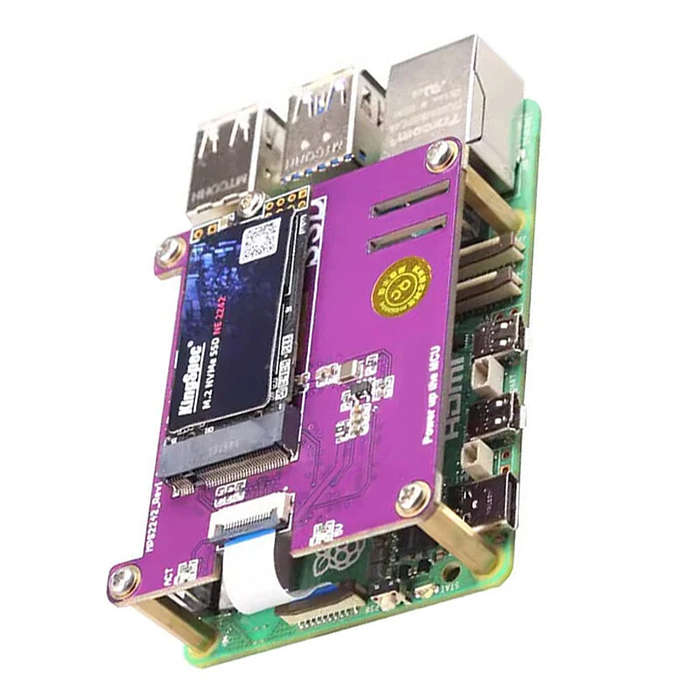

MPS2242-2242 - Raspberry Pi 5 Expansion Board PCIE to M.2 NVME SSD Pi5 PCIe MPS2242-2230 Solid State

Features:
1. Raspberry Pi 5 itself only supports PCle x1, and supports Gen2 and Gen3 modes.

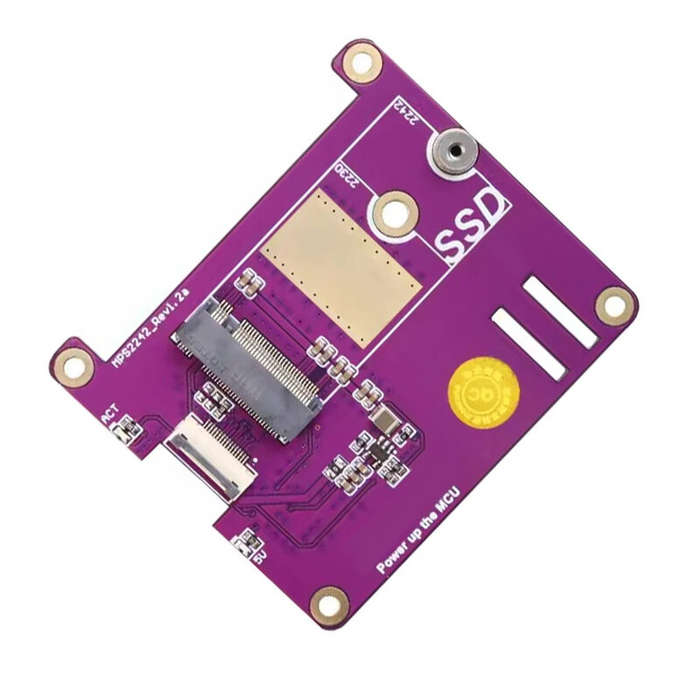

2. Support NVMe solid state disk and support 2242/2230 size SSD (only 2242 copper pillars are welded by default)
3. Supports booting the system from NVME SSD hard disk and storage expansion. SSD can also be used only for storage expansion and the system boots from TF.
4. The power supply circuit of the adapter board adopts a 2A current design, which is limited by the current limit of the PCIE interface of the Raspberry Pi 5 (5V1A). The adapter board can provide the solid-state drive with an output capability of more than 3.3V 1.5A.
5. Generally, the rated current marked on the solid-state disk may be 2.5A, 2.7A or even 3A, but this current corresponds to the limit value of the X4 mode, and the Raspberry Pi 5 only supports the X1 mode, so the actual current used is smalle
