Features : - Sensitive material MQ135 gas sensor is used in clean air low conductivity tin oxide (SnO2). When the sensor is kept in their environment In the polluting gases , the conductivity sensor with increasing air pollution in gas concentration increases. - Using a simple circuit can change the conductivity Conversion of an output signal corresponding to the gas concentration . - MQ135 sensor for ammonia, sulfide , benzene vapor high sensitivity of the smoke and other harmful monitor is also very good. This sensor can be seized measure a variety of harmful gases , is a low-cost sensors for a variety of applications .

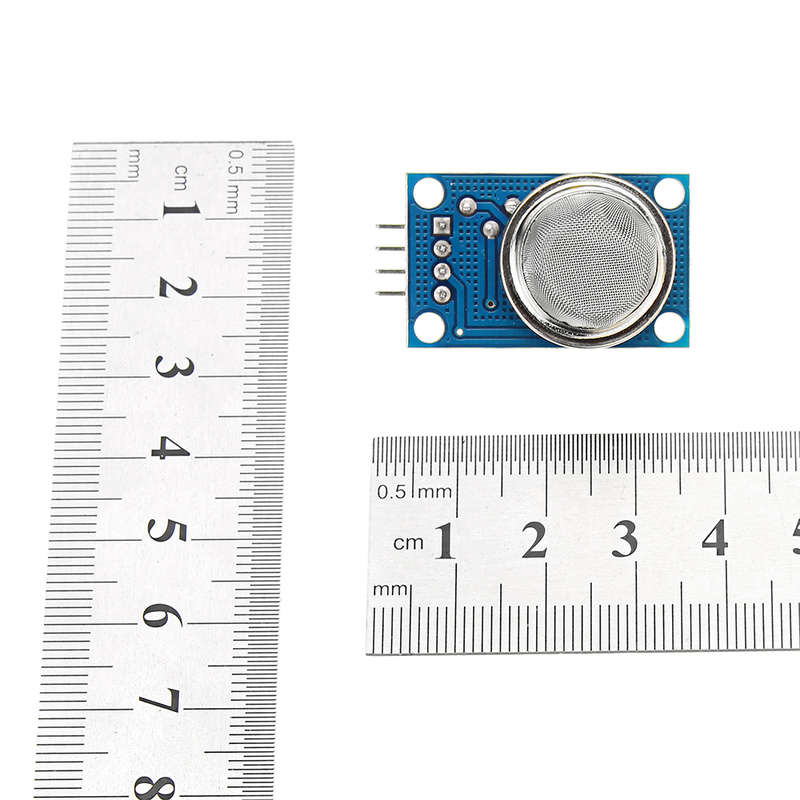

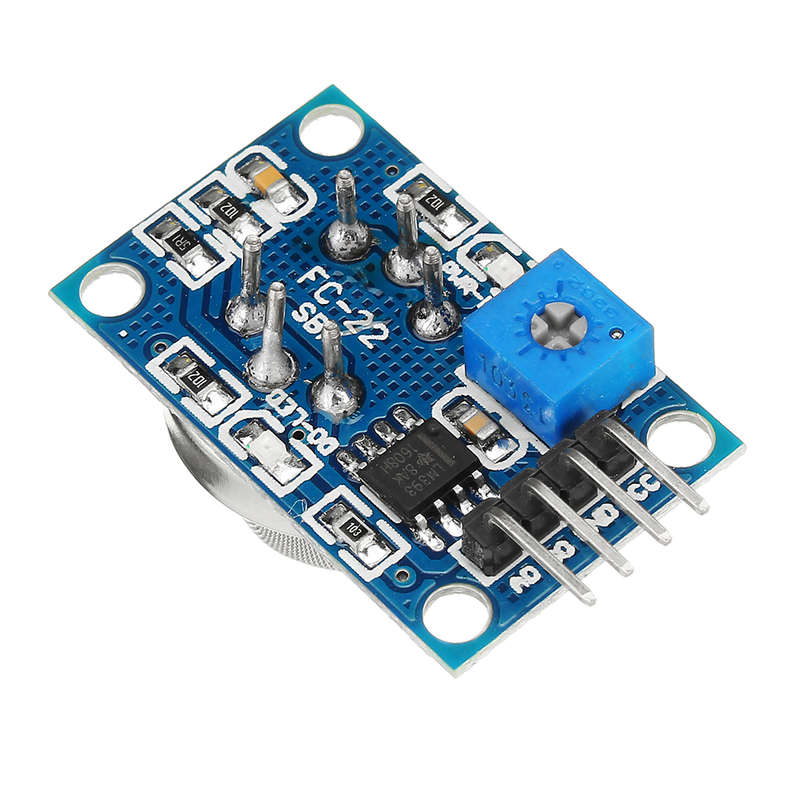

Speciffications: 1. It adopts high quality double panel design with power indication and TTL signal output indication; 2. It has DO switch signal (TTL) output and AO analog signal output; 3. The TTL output valid signal is low. (When the output is low, the signal light is on, it can be directly connected to the MCU or relay module) 4. The voltage of the analog output, the higher the concentration, the higher the voltage. 5. It has good sensitivity to gas and natural gas detection. 6, there are four screw holes for easy positioning; 7, product dimensions: 32 (L) * 20 (W) * 22 (H) 8, has a long service life and reliable stability 9, Quickly response recovery characteristics
Electrical Performance: Dection of gas: Ammonia /Sulfide/ Benzene vapor Dection of Concentration:10-1000ppm Input voltage: DC5V Power consumption (current): 150mA DO output: TTL digital quantities 0 and 1 (0.1 and 5V) AO output: 0.1-0.3V (relatively non-polluting), the highest concentration voltage is about 4V Using the chip: AT89S52 Crystal: 11.0592MHZ Baud rate: 9600 Compilation environment: Keil
Special Reminder: After the sensor is energized, it needs to be preheated for about 20S, and the measured data is stable. The heating of the sensor is a normal phenomenon, because there is a heating wire inside, if it is hot, it is not normal.
Package Included: 1 x MQ-135 Gas Sensor Module
If you want another model, you can click on the ID | Model | Gas Detection | Item ID |
| MQ2 | flammable gas/smoke | |
| MQ3 | alcohol steam | |
| MQ4 | Natural gas/Methane | |
| MQ5 | Liquefied gas/Methane/Coal gas /LPG | |
| MQ6 | Liquefied gas/Isobutane/Propane/LPG | |
| MQ7 | Carbon monoxide | |
| MQ8 | hydrogen | |
| MQ9 | Carbon monoxide flammable gas | |
| MQ131 | Ozone Concentration | |
| MQ135 | Ammonia/sulfide/benzene vapor | |
| A set of MQ | |
|
