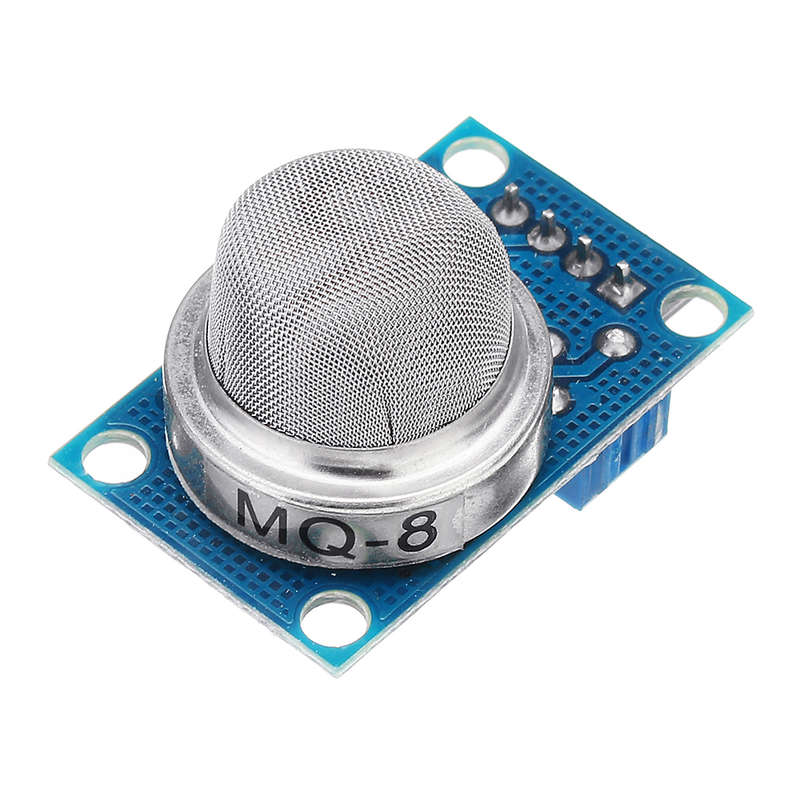

Features : - MQ-8 gas sensor sensitive material used in clean air conductivity is lower tin dioxide (SnO2). When the sensor is present in the environment in which the combustible gas, the sensor's conductivity increases with the concentration of combustible gases in air increases. - Using a simple circuit can be converted to the change in conductivity of the gas concentration with the corresponding output signal. MQ-8H
2gas sensor of high sensitivity, the monitoring of the other hydrogen-containing gas is also very satisfactory. - The sensor can detect a variety of hydrogen-containing gas, in particular, city gas, is a low-cost sensors for a variety of applications. - Suitable for domestic or industrialH
2leak on a monitoring device. Are not subject to ethanol vapor, soot, carbon monoxide and other gases interference.

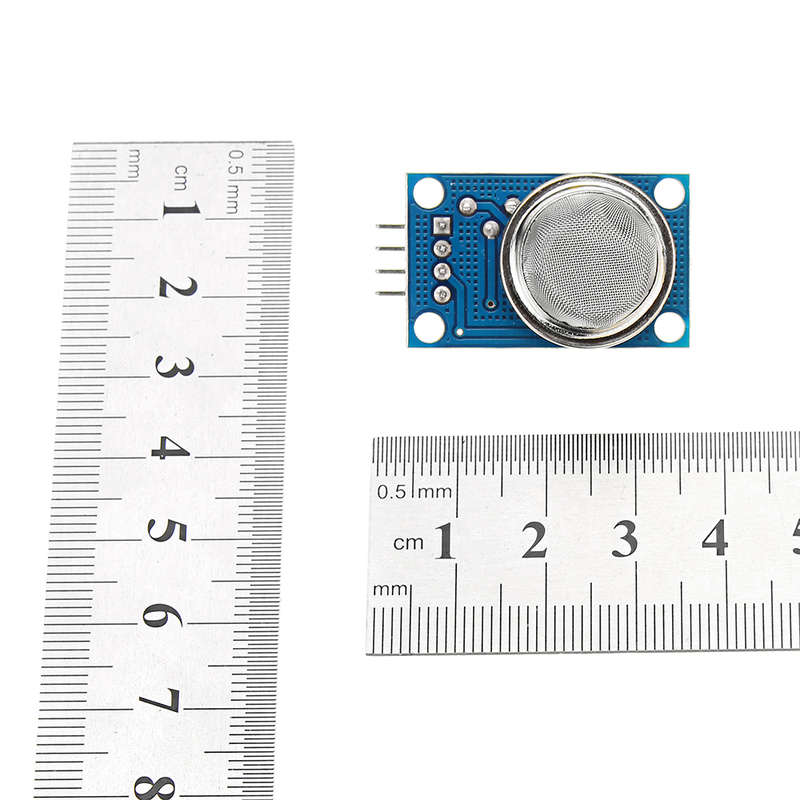

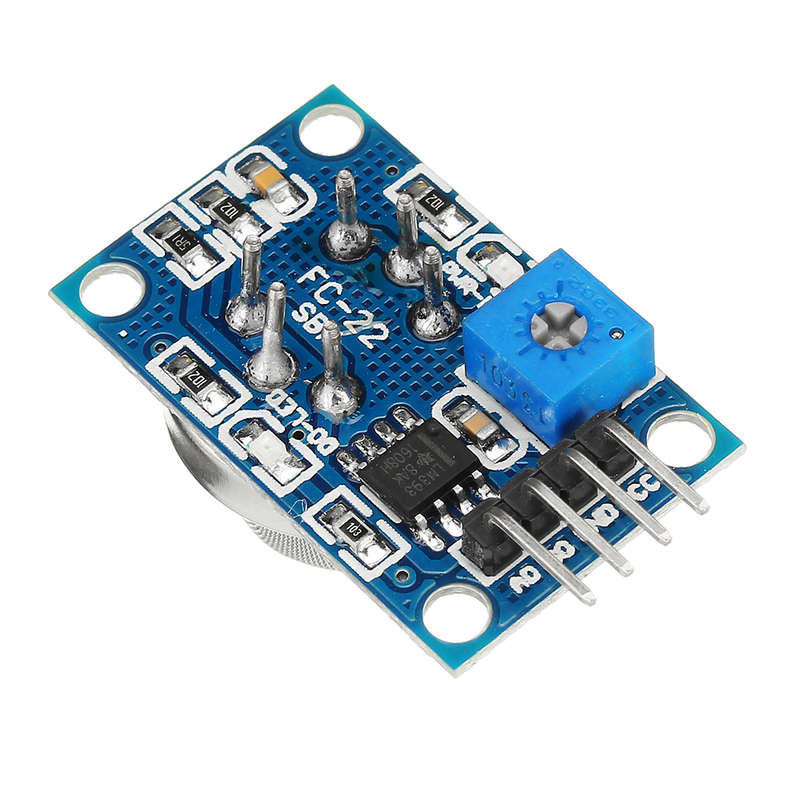

Speciffications: 1. It adopts high quality double panel design with power indication and TTL signal output indication; 2. It has DO switch signal (TTL) output and AO analog signal output; 3. The TTL output valid signal is low. (When the output is low, the signal light is on, it can be directly connected to the MCU or relay module) 4. The voltage of the analog output, the higher the concentration, the higher the voltage. 5. It has good sensitivity to gas and natural gas detection. 6, there are four screw holes for easy positioning; 7, product dimensions: 32 (L) * 20 (W) * 22 (H) 8, has a long service life and reliable stability 9, fast response recovery characteristics
Electrical Performance: Dection of gas:H
2 Dection of Concentration:100-1000ppm Input voltage: DC5V Power consumption (current): 150mA DO output: TTL digital quantities 0 and 1 (0.1 and 5V) AO output: 0.1-0.3V (relatively non-polluting), the highest concentration voltage is about 4V Using the chip: AT89S52 Crystal: 11.0592MHZ Baud rate: 9600 Compilation environment: Keil
Special Reminder: After the sensor is energized, it needs to be preheated for about 20S, and the measured data is stable. The heating of the sensor is a normal phenomenon, because there is a heating wire inside, if it is hot, it is not normal.
Package Included: 1 x MQ-8 Gas Sensor Module
If you want another model, you can click on the ID | Model | Gas Detection | Item ID |
| MQ2 | flammable gas/smoke | |
| MQ3 | alcohol steam | |
| MQ4 | Natural gas/Methane | |
| MQ5 | Liquefied gas/Methane/Coal gas /LPG | |
| MQ6 | Liquefied gas/Isobutane/Propane/LPG | |
| MQ7 | Carbon monoxide | |
| MQ8 | hydrogen | |
| MQ9 | Carbon monoxide flammable gas | |
| MQ131 | Ozone Concentration | |
| MQ135 | Ammonia/sulfide/benzene vapor | |
| A set of MQ | | |
