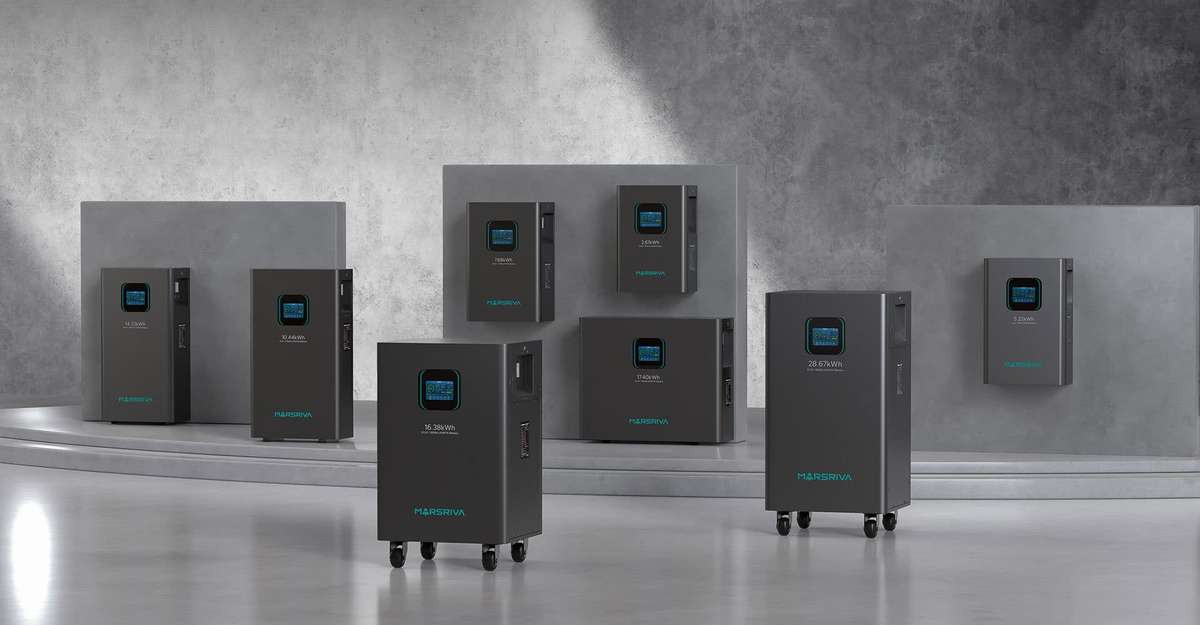

MR-LFP48-200-WMD – 10.44kWh LiFePO4 Lithium Battery (51.2V / 204Ah)

MR-LFP48-200-WMD 10.44kWh LiFePO4 Lithium Battery (51.2V / 204Ah)

Grade A Cells | Wall Mount or Floor Standing | Built-in BMS

Product Overview

The MR-LFP48-200-WMD is a premium LiFePO4 (Lithium Iron Phosphate) battery designed for reliable energy storage in residential, commercial, and backup power systems. Built with Grade A cells, this battery delivers exceptional cycle life, high efficiency, and enhanced safety, making it an ideal solution for modern solar and hybrid systems.

Key Features

• High Capacity 10.44kWh
  Provides extended backup time for homes and businesses.

• Grade A LiFePO4 Technology
  Offers superior safety, thermal stability, and long lifespan compared to traditional batteries.

• 6000+ Cycle Life
  Designed for long-term performance with 6000 cycles at 25°C.

• Built-in Battery Management System (BMS)
  Ensures protection against overcharge, over-discharge, overheating, and short circuits.

• Scalable System Design
  Supports parallel connection of up to 15 units for expanded energy storage.

• Wide Temperature Range Operation
  Reliable performance in diverse environmental conditions.

• Flexible Installation
  Suitable for wall-mounted or floor-standing configurations.

• Integrated 4.3-Inch Touchscreen
  Provides easy system monitoring and control.

• Built-in Aerosol Fire Extinguisher
  Enhances safety and protection in critical conditions.

• Robust Construction
  Manufactured using SPCC high-quality cold-rolled steel for durability and structural strength.

• Technical Specifications

  Battery

• Model: MR-LFP48-200-WMD

• Battery Type: LiFePO4 (Grade A)

• Nominal Voltage: 51.2V

• Capacity: 204Ah

• Storage Capacity: 10.44kWh

• Internal Resistance: 13.9m

• Performance

• Cycle Life: 6000 cycles @ 25°C (to 70% EOL)

• Design Life: 10 years

• Max Charging Current: 210A

• Max Discharging Current: 210A

• Peak Charging Current: 215A (2 seconds)

• Peak Discharging Current: 215A (2 seconds)

• Operating Conditions

• Charging Temperature: 0°C to 55°C

• Discharging Temperature: -20°C to 55°C

• Storage Temperature: -30°C to 35°C

• Humidity: 5% 95%

• Communication & Expansion

• Communication Protocols: RS485, CAN

• Parallel Capability: Up to 15 units

• Physical Specifications

• Dimensions (L × W × H): 485 × 200 × 850 mm

• Weight: 86 kg

• Applications

• Residential solar energy storage

• Hybrid and off-grid systems

• Backup power solutions

• Commercial energy storage systems

• Why Choose This Battery?

  The MR-LFP48-200-WMD combines high energy density, long lifespan, and advanced safety features in a durable, scalable design. Whether for backup or full energy independence, it delivers consistent and dependable performance.
