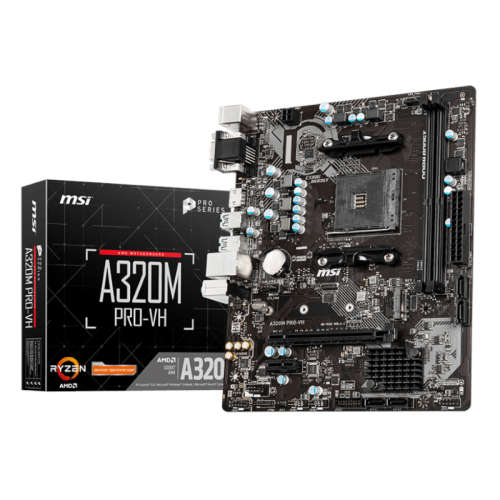

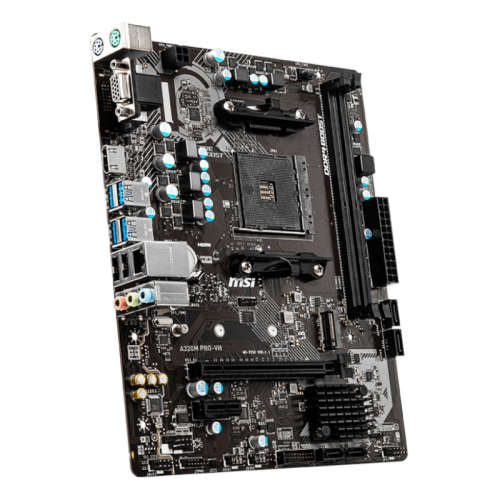

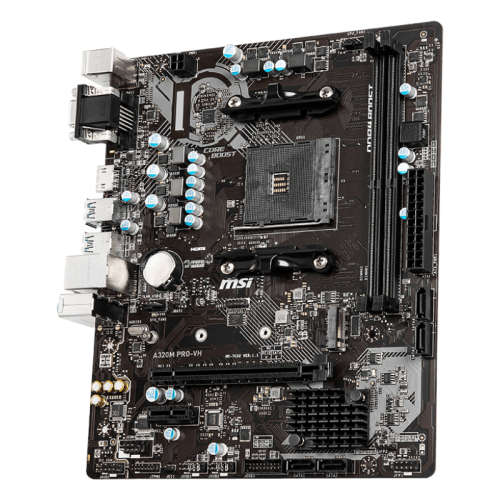

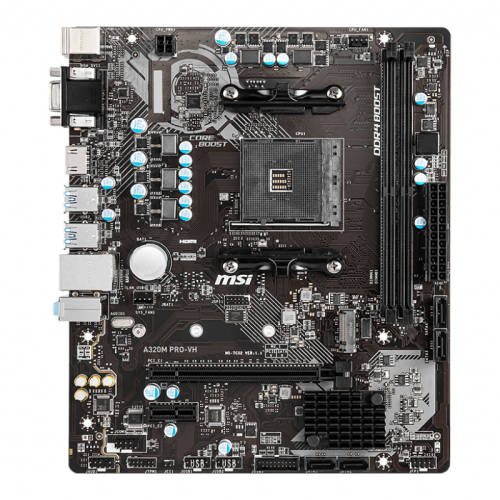

MSI A320M PRO-VH AMD AM4 M-ATX Gaming Motherboard

Combining quality you can rely on upon top performance and clever business solutions are key aspects of the MSI PRO Series motherboards. Engineered to gratify even the most demanding professional, these motherboards will fit in any PC. Making your life easier and supporting your business with super stable, reliable, and long-lasting top performance. Cooling your PC is essential for reliable performance as well. Weve made sure to include enough fan headers with full control to allow you to cool your system to the max.

Supporting the latest display connectors for new technologies (OLED, HDR) and legacy connectors for beamers, MSI motherboards are designed to make life easier for any professional user. Get the most immersive sound experience with MSI Audio Boost. MSI Audio Boost delivers the highest sound quality through the use of premium quality audio components. This lets you enjoy breathtaking, game-changing sound to create the most dynamic soundscapes.

Founded on experience and with a long history of creating the best-performing motherboards packed with smart features, you can count on this motherboard to deliver the best performance under the most extreme conditions. Countless system tuning and troubleshooting tools are at your disposal to push your system to new heights and satisfy even the most demanding tweaker.

Using only the finest quality components and integrating the latest technological innovations delivers the best possible professional experience. Rigorous quality testing under the most extreme conditions ensures a super reliable, long-lasting, and high-performance motherboard.

Features:

• Supports 1st, 2nd and 3rd Gen AMD Ryzen / Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics / Athlon with Radeon Vega Graphics and A-series / Athlon X4 Desktop Processors for Socket AM4
• Supports DDR4 Memory, up to 3200(OC) MHz
• Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs
• Core Boost: With premium layout and digital power design to support more cores and provide better performance
• DDR4 Boost: Advanced technology to deliver pure data signals for the best performance and stability
• Audio Boost: Reward your ears with studio grade sound quality

Specs:

• CPU (Max Support): Ryzen 9
• Socket: AM4
• Chipset: AMD® A320 Chipset
• DDR4 Memory: Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC, Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 MHz by A-XMP OC Mode
• Memory Channel: Dual
• DIMM Slots: 2
• Max Memory (GB): 64
• PCI-E X16: 1
• PCI-E Gen: Gen3
• PCI-E X1: 2
• SATAIII: 4
• RAID: 0/1/10
• TPM (Header): 1
• LAN: 1x Realtek® RTL8111H Gigabit LAN
• USB 3.1 Ports (Front): 2(Gen 1, Type A)
• USB 3.1 Ports (Rear): 4(Gen 1, Type A)
• USB 2.0 Ports (Front): 4
• USB 2.0 Ports (Rear): 2(Type A)
• Serial Ports (Front): 1
• Audio Ports (Rear): Realtek® ALC892/ALC897 Codec
• VGA: 1
• HDMI: 1
• DirectX: 12
• Form Factor: M-ATX
• Operating System: Support for Windows® 10 64-bit

What you get:

• MSI A320M PRO-VH AM4 m-ATX Motherboard x1
• I/O Shield x1
• Driver DVD x1
• SATA Cables x2
• Quick Installation Guide x1
