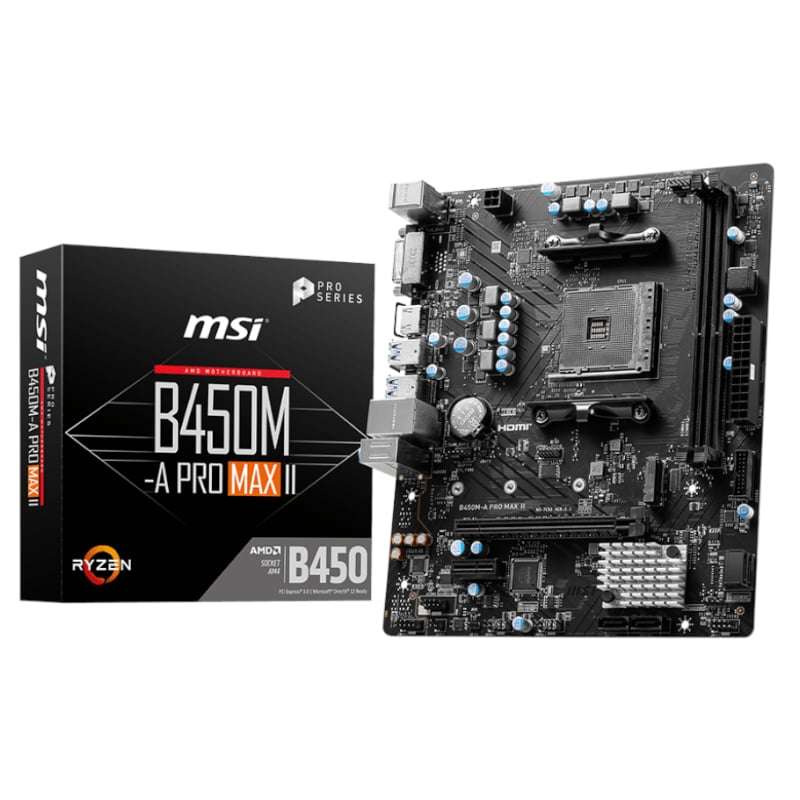

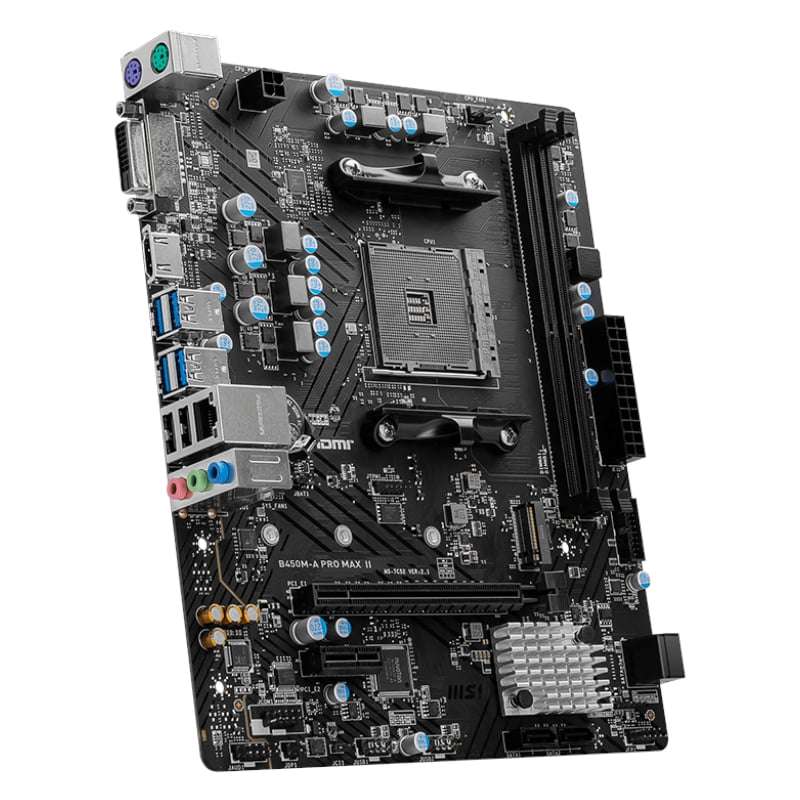

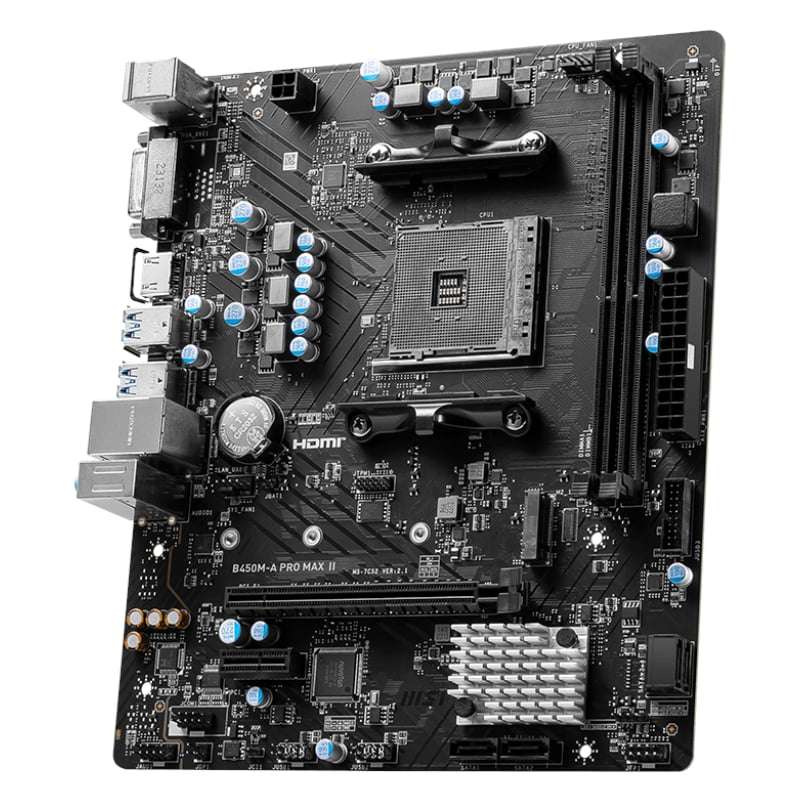

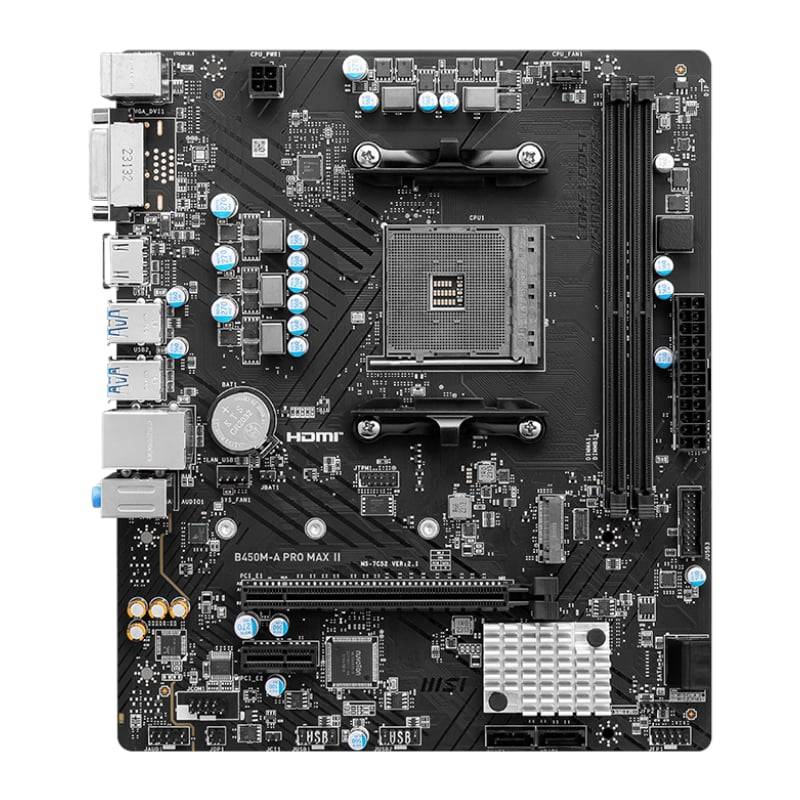

MSI B450M-APRO MAX II AMD AM4 MATX Gaming Motherboard

MSI B450M-APRO MAX II AMD AM4 MATX Gaming Motherboard

Description

The MSI B450M-A Pro Max II motherboard provides lightning-fast system boot-up, application, and game loading. Turbo M.2 is more than 5 times faster than a regular SATA III connection, with speeds up to 32 GB/s per device using Gen3 x4!

Core Boost is the most recent upgrade to MSI's motherboard CPU power delivery system. A reserved zone of premium power delivery components on an optimised circuit design results in a highly efficient power system that can output precise current to the CPU.

Reward your ears with studio-quality sound. MSI Audio Boost produces the best sound possible by utilising high-quality audio components. This allows you to enjoy stunning, studio-quality sound for the most immersive audio experience.

For clever business solutions, PRO Series motherboards combine stable functionality and high-quality assembly. PRO Series motherboards are designed to meet any professional workflow, making life easier for businesses and office use.

FEATURES:

• Supports 1st, 2nd and 3rd Gen AMD^® Ryzen / Ryzen with Radeon Vega Graphics, 2nd Gen AMD^® Ryzenwith Radeon Graphics / Athlon with Radeon Vega Graphics and A-series / Athlon X4 Desktop Processors for Socket AM4
• Supports DDR4 memory up to 4133 (OC) MHz
• Turbo M.2: Running at PCI-E Gen3 x4 maximises performance for NVMe-based SSDs.
• Audio Boost: Reward your ears with studio-grade sound quality.
• X-Boost: Software that auto-detects and allows you to boost the performance of any storage or USB device.
• Core Boost: With premium layout and fully digital power design to support more cores and provide better performance.

SPECIFICATIONS:

• Socket: AM4
• CPU Support:
• Supports 1st, 2nd and 3rd Gen AMD Ryzen / Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics
• Athlon with Radeon Vega Graphics and A-series / Athlon X4 Desktop Processors for Socket AM4
• Chipset: AMD B450
• DDR4 Memory: DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3733/ 3866/ 4000/ 4133 MHz (by A-XMP OC MODE), 1866/ 2133/ 2400/ 2667Mhz (by JEDEC)
• Memory Channel: Dual-Channel DDR4
• DIMM Slots: 2
• Max Memory (GB): 64
• PCI-E Gen: Gen3
• PCI-E x16: 1
• PCI-E x1: 1
• SATA III: 4
• M.2 Slot: 1
• TPM (Header): 1
• USB 3.2 Ports (Front): 2 (Gen1, Type A)
• USB 3.2 Ports (Rear): 4 (Gen1, Type A)
• USB 2.0 Ports (Front): 4
• USB 2.0 Ports (Rear): 2
• Serial Ports (Front): 1
• LAN port (Rear): Realtek® 8125 2.5Gigabit LAN controller
• Audio ports (Rear): Realtek® ALC897 Codec
• DVI-D: 1
• HDMI: 1
• DirectX: 12
• Form Factor: m-ATX
• Operating System: Support for Windows® 11 64-bit, Windows® 10 64-bit

WHAT'S IN THE BOX:

• MSI B450M-A PRO MAX II AMD AM4 mATX Gaming Motherboard Black x1
• Driver DVD x1
• I/O Shield x1
• SATA Cable x2
• Quick Install Guide x1
