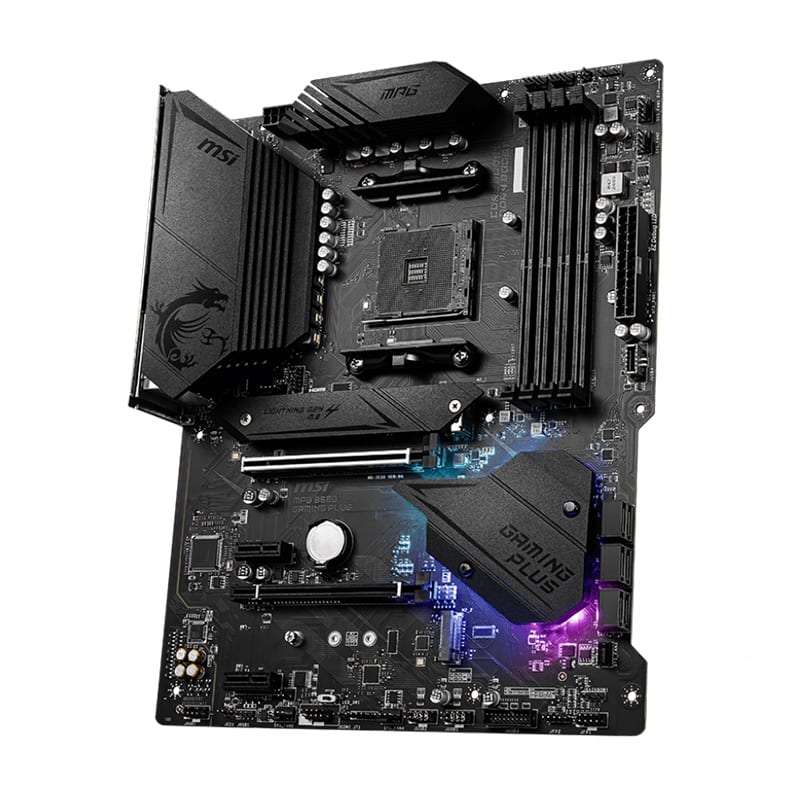

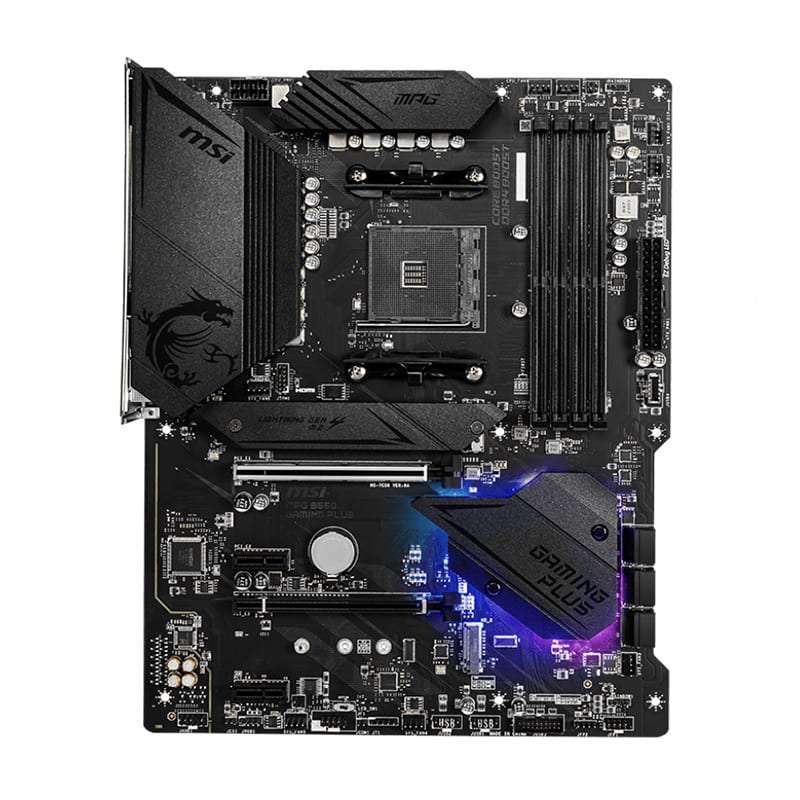

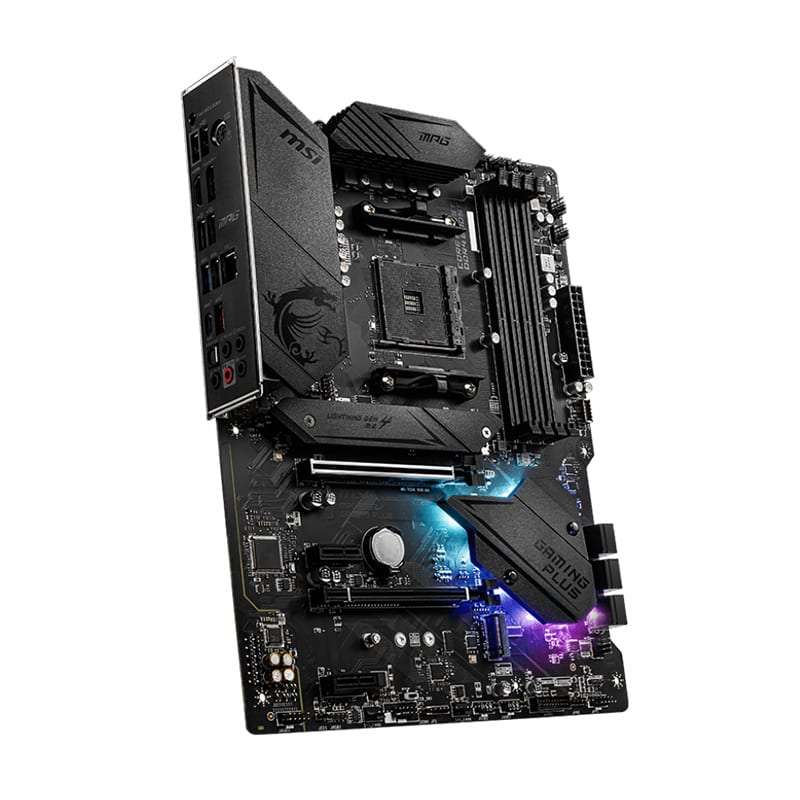

MSI B550 Gaming Plus AMD AM4 ATX Gaming Motherboard

The MPG series brings out the best in gamers by allowing full expression in colour with advanced RGB lighting control and synchronization. Experiment on another level of personalization with a front LED strip that provides convenient in-game and real-time notifications. With the MPG series, transform your equipment into the centre of attention and top leaderboards in style. With more cores� processors, thermal and power design is more important to make sure the temperature keeps lower. MSI extended PWM heatsink and enhanced circuit design ensures even high-end CPU to run at full speed with MSI motherboards. High-performance MSI motherboards are loaded with advanced features and the latest technology to overwhelm any challenge at hand no matter whether you're a gamer, prosumer, or PC enthusiast. Utilizing 3rd Gen Ryzen processors, MSI B550 motherboards feature the latest Lightning Gen 4 M.2 which is the fastest onboard storage solution on the market with up to 64 Gb/s transfer speed.
FEATURES:
Supports AMD Ryzen� 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen� 5 3400G & Ryzen� 3 3200G) and AMD Ryzen� 4000 G-Series desktop processors
Supports DDR4 Memory, up to 4400(OC) MHz
Lightning Fast Game experience: PCIe 4.0, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr, AMD Turbo USB 3.2 GEN 2
Enhanced Power Design: Core Boost, Digital PWM IC, 2oz Thickened Copper PCB, DDR4 Boost
Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr is built for a high-performance system and non-stop gaming experience
Pre-installed I/O Shielding: Better EMI protection and more convenience for installation
Flash BIOS Button with Optimized ClearCMOS Function: Simply use a USB key to flash any BIOS within seconds. Restore the BIOS to the default settings without any additional actions.
Audio Boost: Reward your ears with studio grade sound quality
SPECIFICATIONS:
Socket: AM4
CPU (Max Support): RYZEN 9
Chipset: AMD B550 Chipset
DDR4 Memory: Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC, Supports DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133/ 4266/ 4400+ MHz by A-XMP OC MODE
Memory Channel: Dual
DIMM Slots: 4
Max Memory (GB): 128
PCI-E x16: 2
PCI-E x1: 2
SATAIII: 6
M.2 Slot: 2
RAID: 0/1/10
TPM (header): 1
LAN: 1x Realtek� 8111H Gigabit LAN controller
USB 3.2 ports (Front): 1(Gen 1, Type C), 2(Gen 1, Type A)

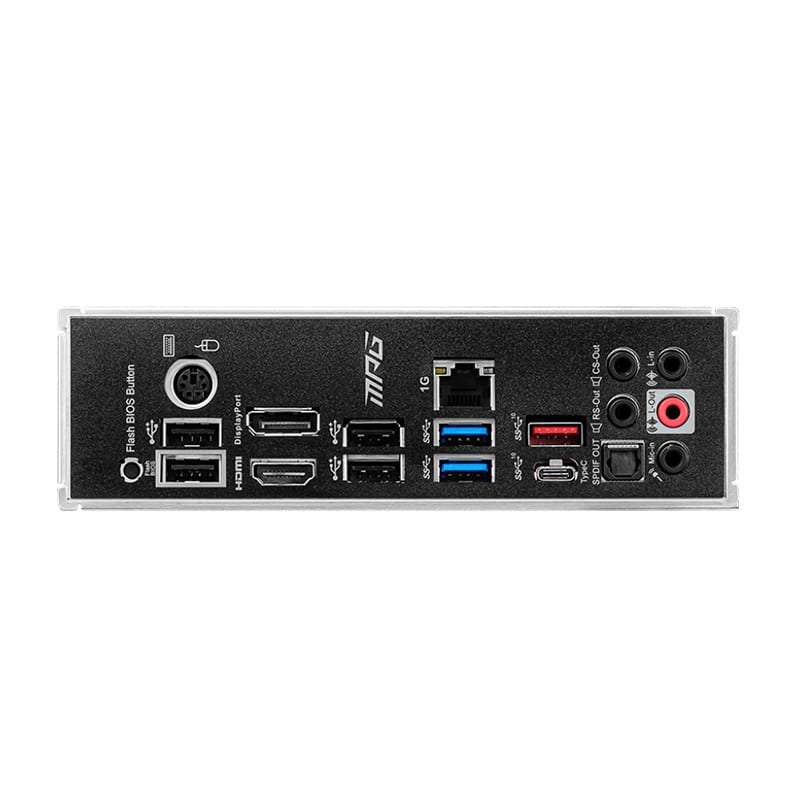

USB 3.2 ports (Rear): 1(Gen 2, Type C), 1(Gen 2, Type A), 2(Gen 1, Type A)
USB 2.0 ports (Front): 4
USB 2.0 ports (Rear): 4
Audio ports (Rear): Realtek� ALC892/ALC897 Codec
DisplayPort: 1
HDMI: 1
DirectX: 12
Form Factor: ATX
CrossFire: Yes
Operating System: Support for Windows� 10 64-bit
WHAT'S IN THE BOX:

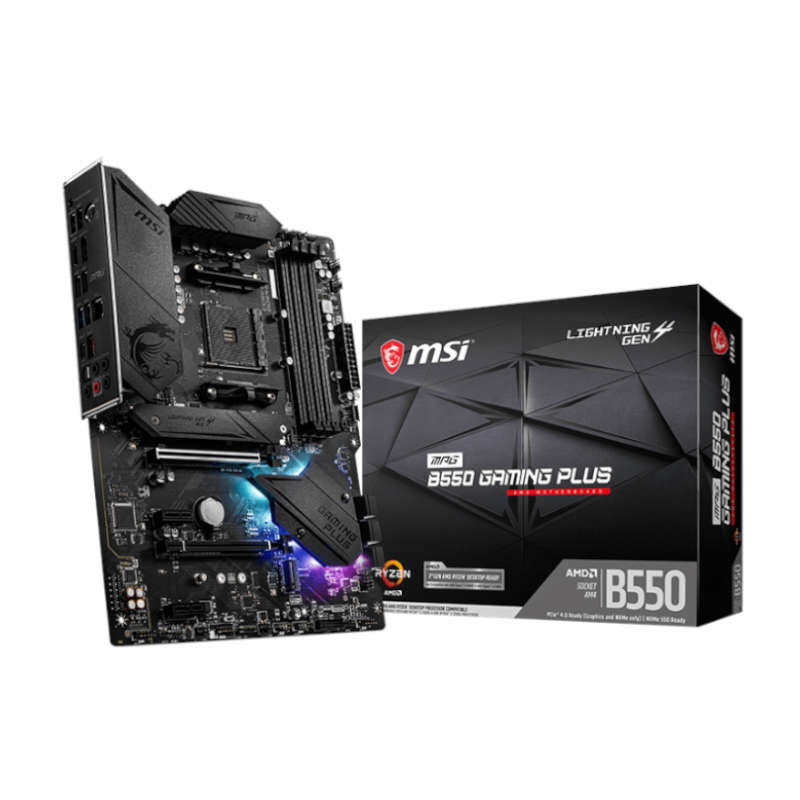

MSI MPG B550 Gaming Plus AM4 ATX Motherboard - Black x1
SATA cables x2
Driver DVD x1
User Manual x1
Quick Install Guide x1
