MSI PRO Series motherboards are designed to satisfy any professional workflow. Elevate your listening pleasure and enjoy the extreme sound quality. Moreover, with years of experience in creating performance enhancing tools that are easy to use, only the highest quality applications are at your disposal. The extensive features let you fine-tune your system to deliver reliable maximum performance. Stay connected with Intel® LAN, optimized for stable internet throughput ideal for championship level online plays.
MSI conducts thorough memory testing with the most popular memory brands under extreme conditions to ensure your system runs stable no matter what. Our memory partners include brands like Corsair, Crucial, Kingston, G.Skill and many more to optimize memory modules and configurations.
FEATURES:
Support for 3rd Gen AMD Ryzen processors and future AMD Ryzen processors with BIOS update
Supports DDR4 Memory, up to 4400(OC) MHz
Lightning Fast Experience: PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr
Premium Thermal Solution: 7W/mK pad, additional choke thermal pad and M.2 Shield Frozr are built for high-performance system and non-stop works
Powerful Design: Core Boost, Digital PWM IC, 2oz Thickened Copper PCB, Creator Genie, DDR4 Boost
Audio Boost: Reward your ears with studio grade sound quality
SPECIFICATIONS:
Socket: AMD Socket AM4
CPU (Max Support): Support for 3rd Gen AMD® Ryzen processors and future AMD® Ryzen processors with BIOS update
Chipset: AMD® B550 Chipset
DDR4 Memory: 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133/ 4266/ 4400 + Mhz by JEDEC and A-XMP OC MODE
Memory Channel: Dual
DIMM Slots: 4
Max Memory (GB): 128
PCI-E x16: 1
PCI-E GEN: Gen4 / Gen3
PCI-E x1: 2
SATAIII: 4
M.2 Slot: 2
TPM (Header): 1
RAID: 0/1/10
LAN: 1x Realtek® RTL8111HN Gigabit LAN
Wi-Fi and Bluetooth: Yes
USB 3.2 ports (Front): 1(Gen 1, Type C), 2(Gen 1, Type A)
USB 3.2 ports (Rear): 4(Gen 1, Type A)
USB 2.0 ports (Front): 4
USB 2.0 ports (Rear): 2
Serial Ports(Front): 1
Audio ports (Rear): Realtek® ALC892/ALC897 Codec
DisplayPort: 1
VGA: 1
HDMI: 1
DirectX: 12
Form Factor: M-ATX
Operating System: Support for Windows® 10 64-bit
WHAT'S IN THE BOX:

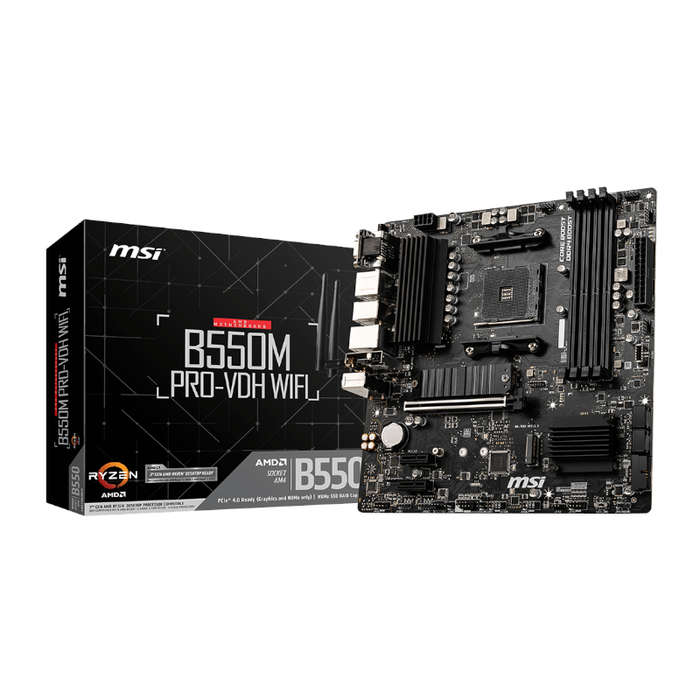

MSI B550M PRO-VDH Wi-Fi AM4 mATX Motherboard - Black x1
SATA cables x2
Wi-Fi Antenna x2
I/O Shield x1
Driver DVD x1
Quick Install Guide x1
What's in the box
Msi B550M Pro-Vdh Wifi Amd Am4 Matx Gaming Motherboard x1
