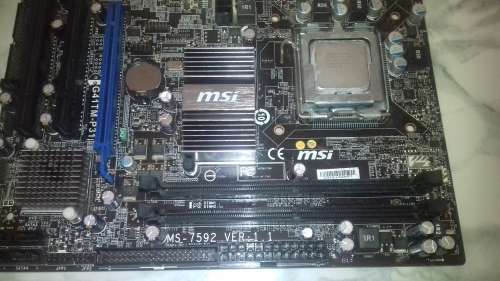

MSI G41TM-P31 MS-7592 VER 1.1 LGA775 Motherboard With BP

CPU

Supports Intel® Core 2 Quad/Core 2 Duo based processors in LGA775 package.

• Supports Intel® Yorkfield, Wolfdale in the LGA775 package.
• Supports Intel® next generation 45nm multi-core processors
• Supports FSB 1333/1066/800 MHz.
• Supports VRD 11.1 standard.
• Supports FMB 05a@95W

Please refer to CPU Support for compatible CPU; the above description is for reference only.

Chipset

•  Intel® G41 Chipset
  - Supports FSB 800/1066/1333 MHz.
  - Integrated Intel Graphics Media Accelerator (Intel® GMA X4500)
  - Supports Microsoft® DirectX 10
   .

Memory

• Supports two unbuffered DIMM of 1.8 Volt DDR2 667/800 DRAM, 8GB Max

Slots

• Supports PCI Express LAN 10/100 Fast Ethernet by Atheros AR8132M

Internal I/O Connectors

• ATX 24-Pin power connector
• 4-pin ATX 12V power connector
• CPU x1/ System x2 FAN connectors
• CD-in connector
• Front panel audio connector
• Front panel connector
• 1 x chasis intrusion connector
• 2 x USB 2.0 connectors
• 1 x Floppy disk drive connector
• 4 x Serial ATAII connectors
• 1 x ATA100 connector
• 1 x SPDIF-Out connector
• Clear CMOS Jumper
• 1 x Serial port connector
• 1 x TPM module connector

Back Panel I/O Ports

• 1 x PS/2 keyboard
• 1 x PS/2 mouse
• 1 x Serial port (COM 1)
• 1 x Graphics Card port
• 1 x 3 in 1 audio jack
• 4 x USB 2.0 ports
• 1 x RJ45 LAN jack
