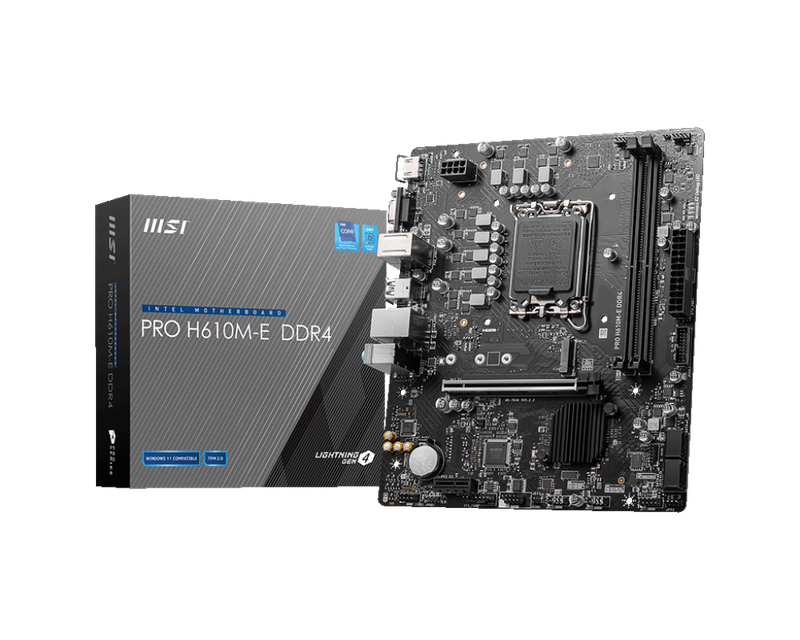

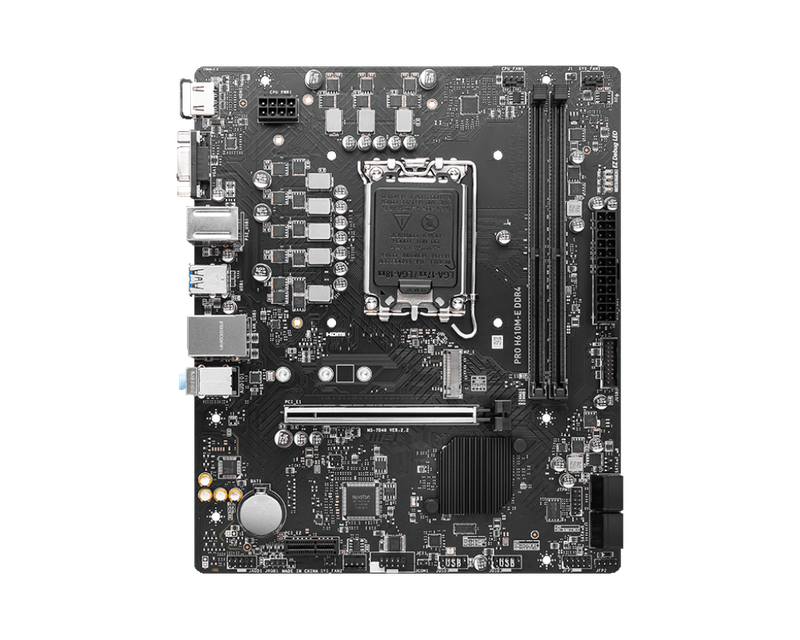

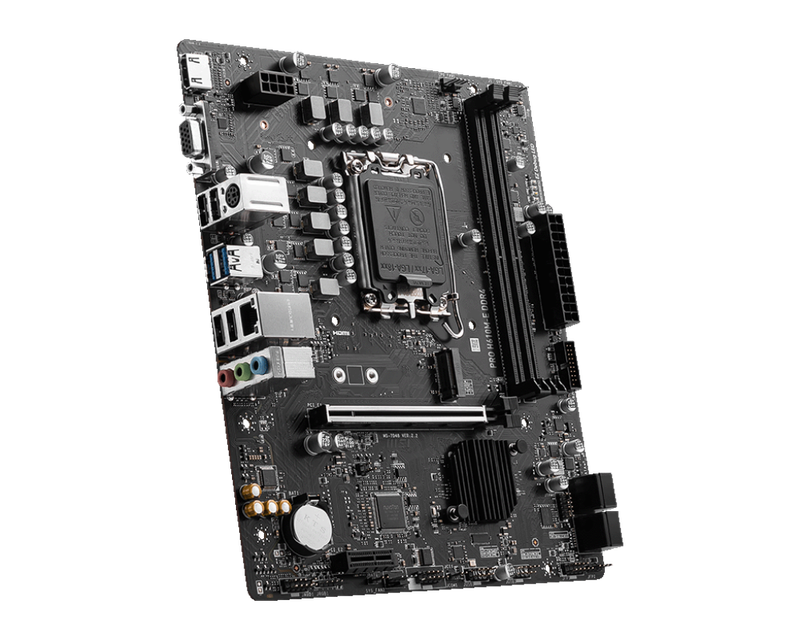

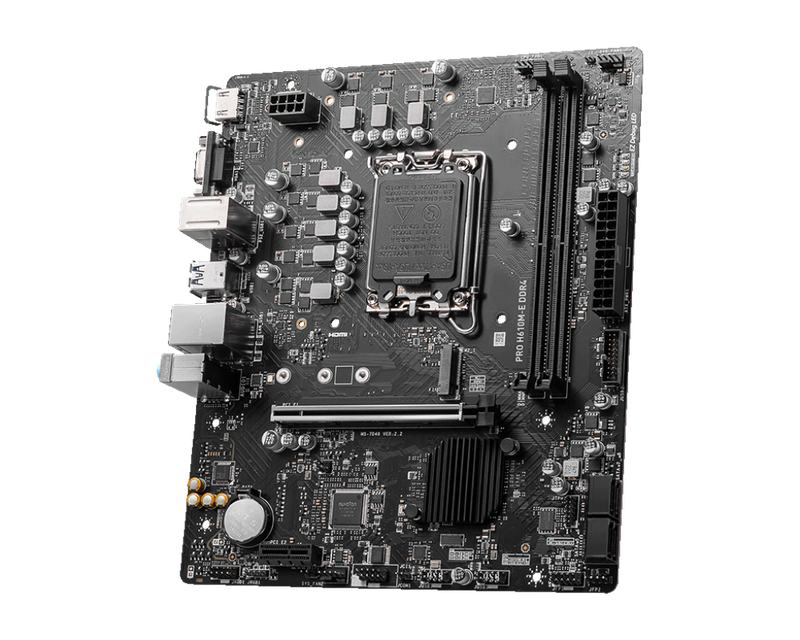

MSI H610M-E PRO Intel LGA1700 M-ATX Motherboard
Support Intel® Core 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors for LGA 1700 socket
Supports DDR4 Memory, up to 3200(MAX) MHz

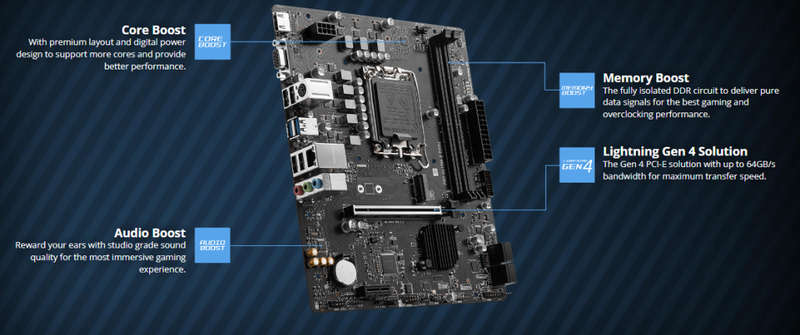

Core Boost: With premium layout and digital power design to support more cores and provide better performance
Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability, and compatibility
Lightning Fast Experience: PCIe 4.0
Audio Boost: Reward your ears with studio-grade sound quality
Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability, and strength.
SOCKET: 1700
CHIPSET: Intel® H610 Chipset
MEMORY CHANNEL: Dual
DIMM SLOTS: 2
MAX MEMORY (GB): 64
PCI-E X16: 1
PCI-E X1: 1
SATA III: 4
M.2 SLOT: 1
TPM (HEADER): 1

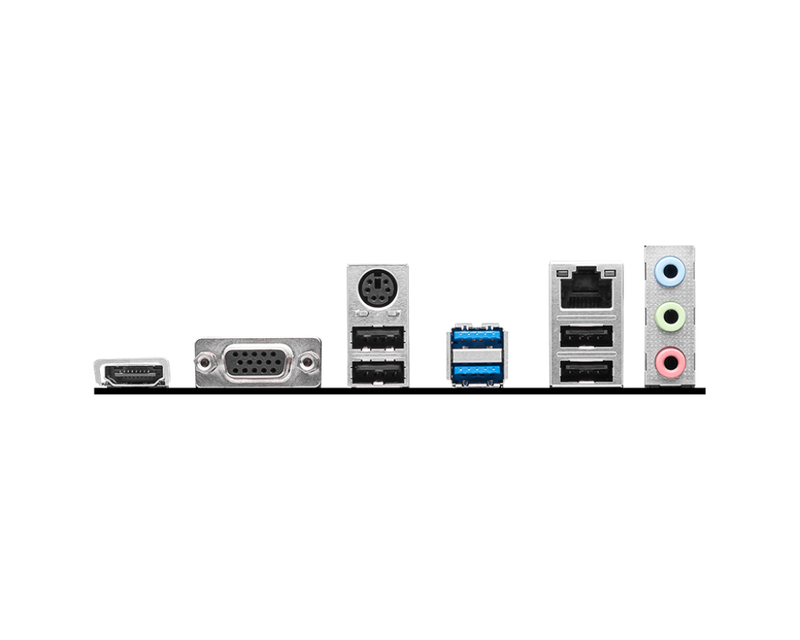

USB 3.2 PORTS (FRONT): 2(Gen 1, Type A)
USB 3.2 PORTS (REAR): 2(Gen 1, Type A)
USB 2.0 PORTS (FRONT): 4
USB 2.0 PORTS (REAR): 4
AUDIO PORTS (REAR): Realtek® ALC897 Codec
VGA: 1
HDMI: 1
DIRECTX: 12
CPU SUPPORT: Support for Windows® 11 64-bit, Windows® 10 64-bit
FORM FACTOR: Mirco-ATX
