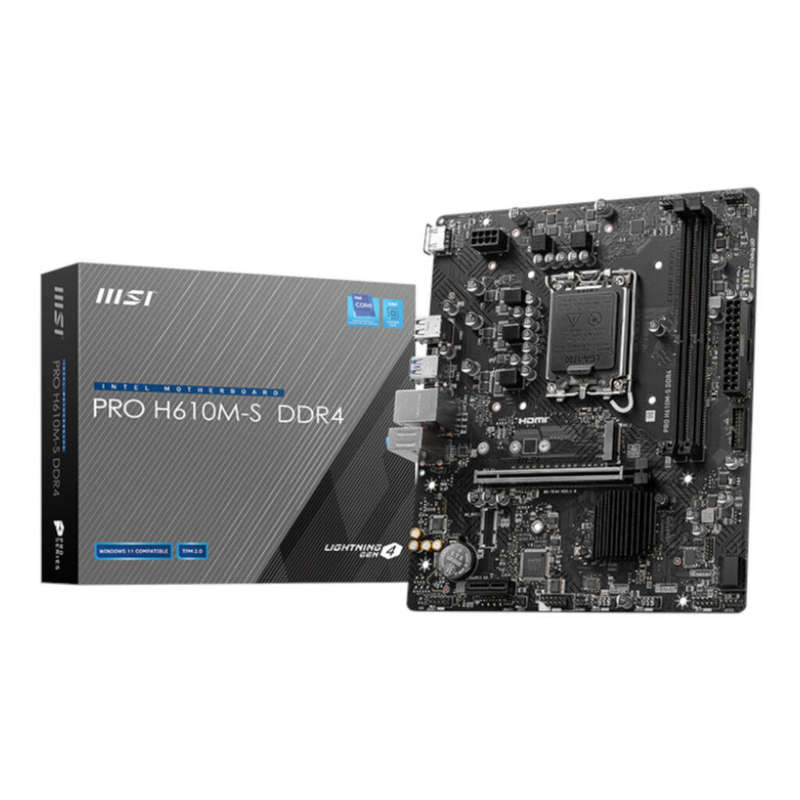

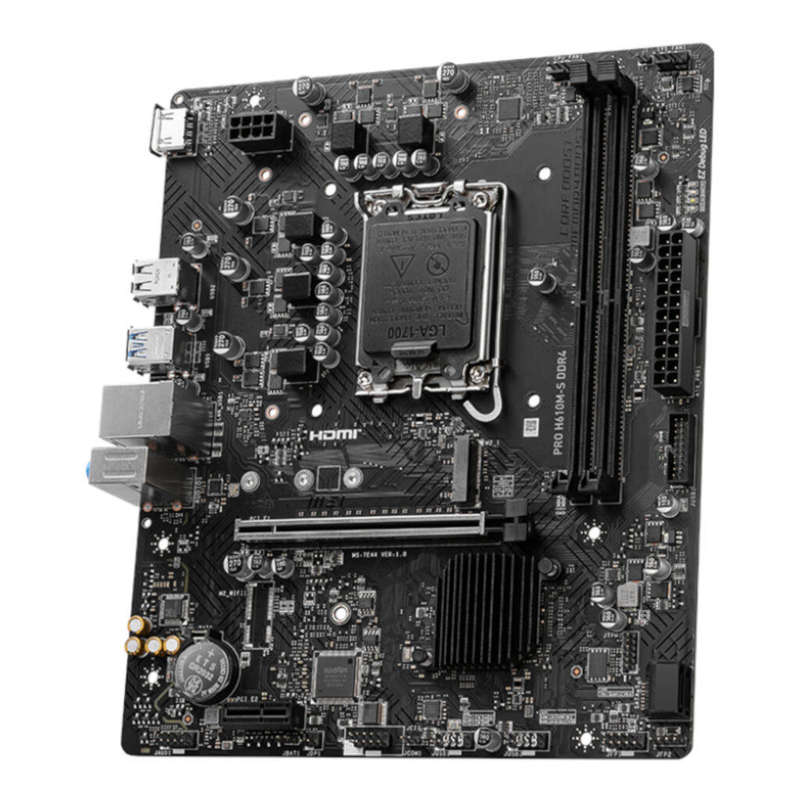

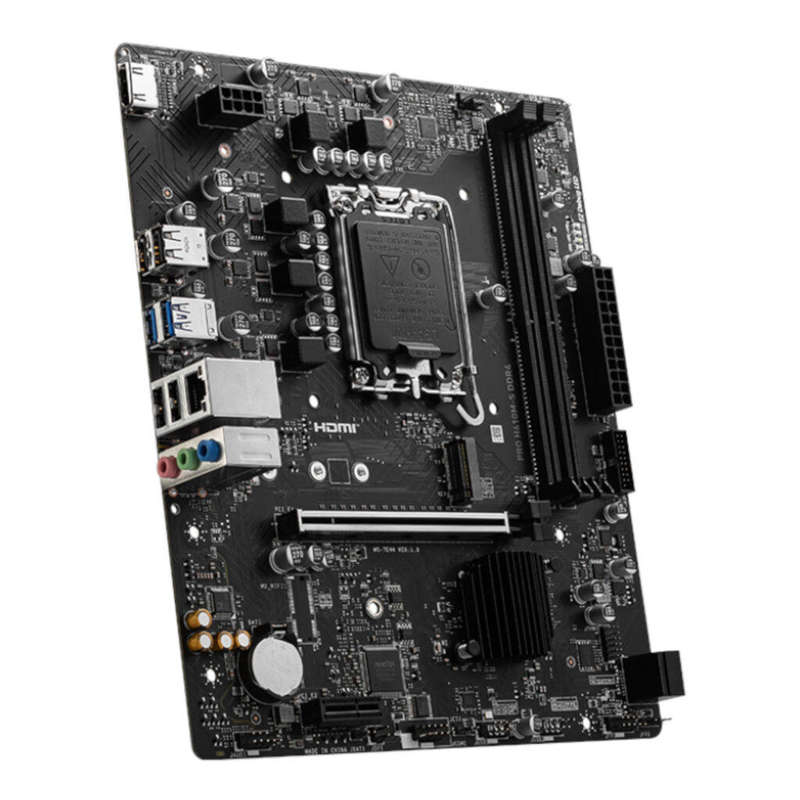

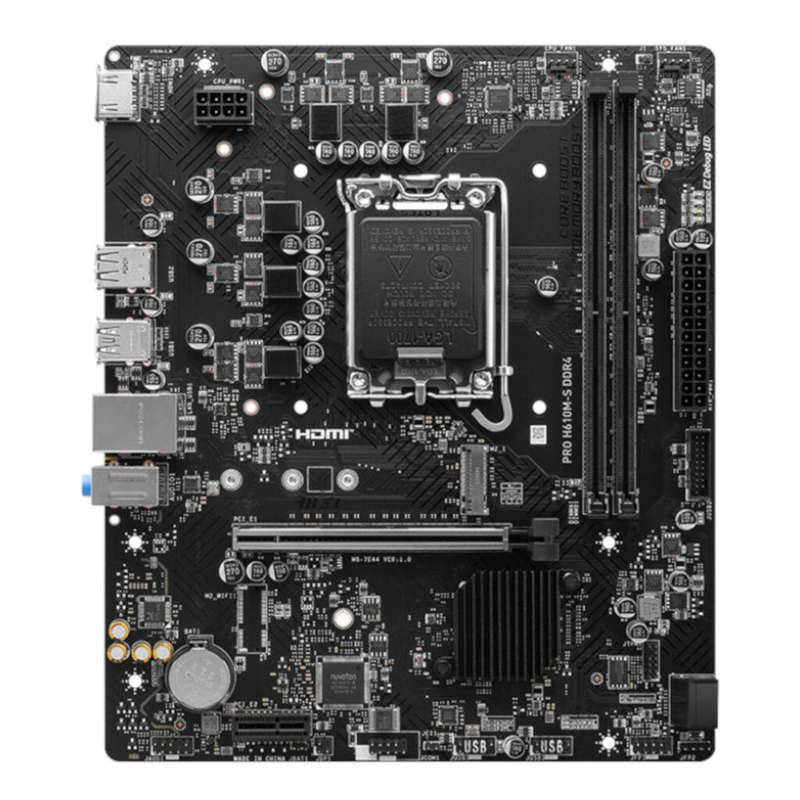

MSI H610M-S PRO LGA1700 M-ATX DDR4 Motherboard

FEATURES:

Support Intel® Core 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors for LGA 1700 socket

Supports DDR4 Memory, up to 3200(MAX) MHz

Core Boost : With premium layout and digital power design to support more cores and provide better performance

Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility

Lightning Fast Experience: PCIe 4.0

Audio Boost: Reward your ears with studio grade sound quality

Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength.

SPECIFICATIONS:

CPU Support: Support Intel® Core 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors

CPU Socket: LGA 1700 socket

Chipset Intel®: H610 Chipset

Graphics Interface: 1x PCIe 4.0 x16 slot, 1x PCIe 3.0 x1 slot

Display Interface: Support 4K@30Hz as specified in HDMI 1.4 Requires Processor Graphics

Memory Support: 2 DIMMs, Dual Channel DDR4-3200 MHz (MAX)

Storage: 1x M.2 Gen3 x4 32Gbps slot, 2x SATA 6Gbps ports

Slot:

1x PCI-E x16 slot

1x PCI-E x1 slot

PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)

PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)

USB Ports Front: 4x USB 2.0 | 2x USB 5Gbps Type A

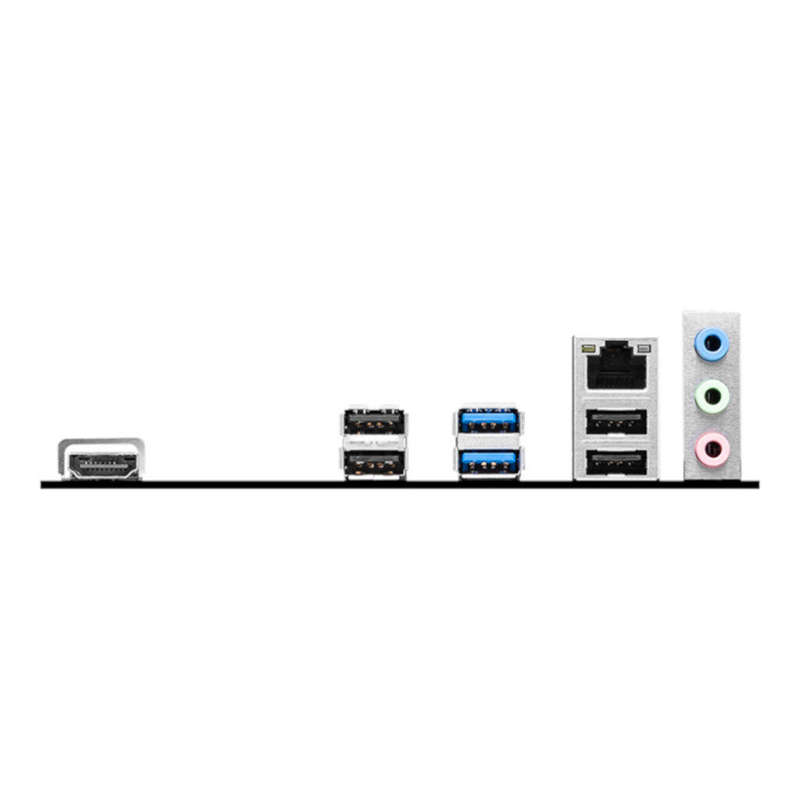

USB Ports Rear: 4x USB 2.0 | 2x USB 5Gbps Type A

LAN Realtek®: RTL8111H Gigabit LAN

Audio: 8-Channel (7.1) HD Audio with Audio Boost

LED: 4x EZ Debug LED

Operating System: Support for Windows® 11 64-bit, Windows® 10 64-bit

Form Factor: mATX

Product Dimensions: 20 x 23.61 cm

WHATS IN THE BOX:

MSI H610M-S PRO LGA1700 M-ATX DDR4 Motherboard x1

European Union Regulatory Notice x1

Quick Installation Guide x1

M.2 Screw/Standoff Set x1

SATA Cable x1

I/O Shield x1
