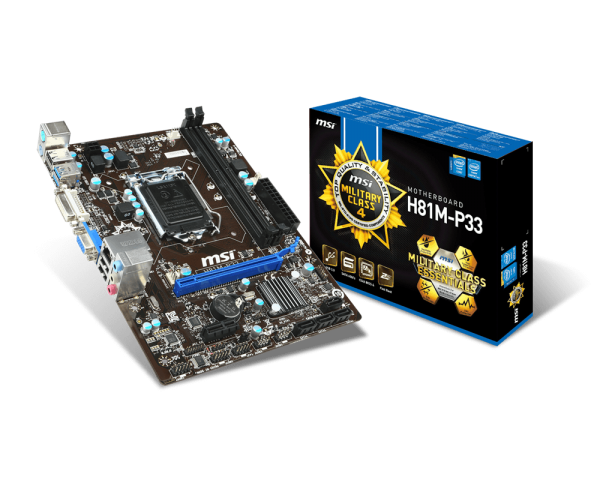

MSI Intel H81M-P33 H81 Chipset, Socket 1150 Motherboard

CPU
¿ 4th Generation Intel® Core¿ i7 / Core¿ i5 / Core¿ i3 / Pentium® / Celeron® processors for LGA 1150 socket
Please refer to CPU Support for compatible CPU; the above description is for reference only.

Chipset
¿ Intel® H81 Express Chipset

Main Memory
¿ Support two DDR3 DIMMs 1066/1333/1600 MHz, up to 16GB Max
- Supports Dual-Channel mode

Slots
¿ 1 x PCIe 2.0 x16 slot
¿ 1 x PCIe x1 slot

On-Board SATA
¿ SATAIII controller integrated in Intel® H81 chipset
- Up to 6Gb/s transfer speed.
- Supports two SATAIII ports (SATA1~2) by H81
¿ SATAII controller integrated in Intel® H81 chipset
- Up to 3Gb/s transfer speed.
- Supports two SATAII ports (SATA3~4) by H81

USB 3.0
¿ 2 x USB 3.0 ports on the back panel

Audio
¿ Chip integrated by Realtek® ALC887
- Flexible 8-channel audio with jack sensing
- Compliant with Azalia 1.0 spec

LAN
¿ Supports LAN 10/100/1000 Fast Ethernet by Realtek® RTL8111G

Internal I/O Connectors
- 1 x ATX 24-Pin power connector
- 1 x 4-pin ATX 12V power connector
- 2 x SATAIII connectors
- 2 x SATAII connectors
- 2 x USB 2.0 connectors
- 1 x Serial port connector
- 1 x Trusted Platform Module (TPM) header
- 1 x Chasis intrusion connector
- 1 x Front Panel Audio connector

Back Panel I/O Ports
- 1 x PS/2 keyboard port
- 1 x PS/2 mouse port
- 4 x USB 2.0 ports
- 2 x USB 3.0 ports
- 1 x RJ45 LAN Jack
- 1 x 3 in 1 audio jack
- 1 x Graphics card port
- 1 x DVI-D port

BIOS
¿ The motherboard BIOS provides "Plug & Play" BIOS which detects the peripheral devices and expansion cards of the board automatically.
¿ The motherboard provides a Desktop Management Interface(DMI) function which records your motherboard specifications.

Dimension
¿ 22.6cm(L) x 17.3cm(W) Micro-ATX Form Factor

Mounting
¿ 6 mounting holes
