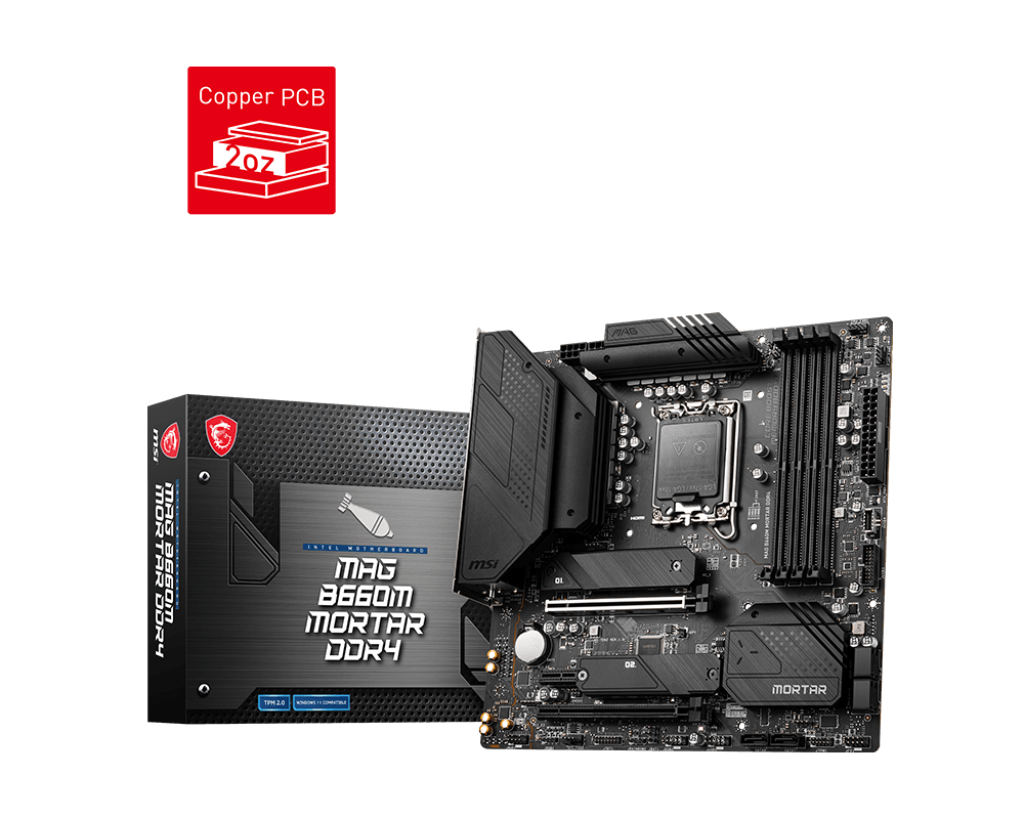

MSI MAG B660M Mortar DDR4 mATX LGA 1700 Motherboard

Condition:

This item is brand new and unused.

Box is different from the original

Comes with two HDD/SSD power connectors only

90 Day Warranty

Core Features

Socket: LGA 1700 (supports 12th Gen Intel Core, Pentium Gold, and Celeron processors)

Chipset: Intel B660

Form Factor: Micro-ATX

Memory: 4× DDR4 DIMM slots, up to 128GB, speeds up to 4800+ MHz (OC)

Expansion Slots:

1× PCIe 4.0 x16 (for GPU)

1× PCIe 3.0 x16 (x4 mode)

1× PCIe 3.0 x1

Storage:

2× M.2 slots (PCIe 4.0 x4)

6× SATA 6Gb/s ports

Networking: 2.5G LAN (Realtek RTL8125)

Audio: Realtek ALC1200 codec

Connectivity

USB Ports:

1× USB 3.2 Gen 2x2 Type-C (20Gbps)

3× USB 3.2 Gen 2 Type-A (10Gbps)

4× USB 2.0

Display Outputs:

1× HDMI 2.1

1× DisplayPort 1.4

Internal Headers:

1× USB 3.2 Gen 2 Type-C

1× USB 3.2 Gen 1

2× USB 2.0

Cooling & Power

VRM: 12+1+1 phase power design with 60A MOSFETs

Cooling: Extended heatsinks, M.2 Shield Frozr, 4× fan headers

RGB Support: 2× ARGB (3-pin), 1× RGB (4-pin) headers
