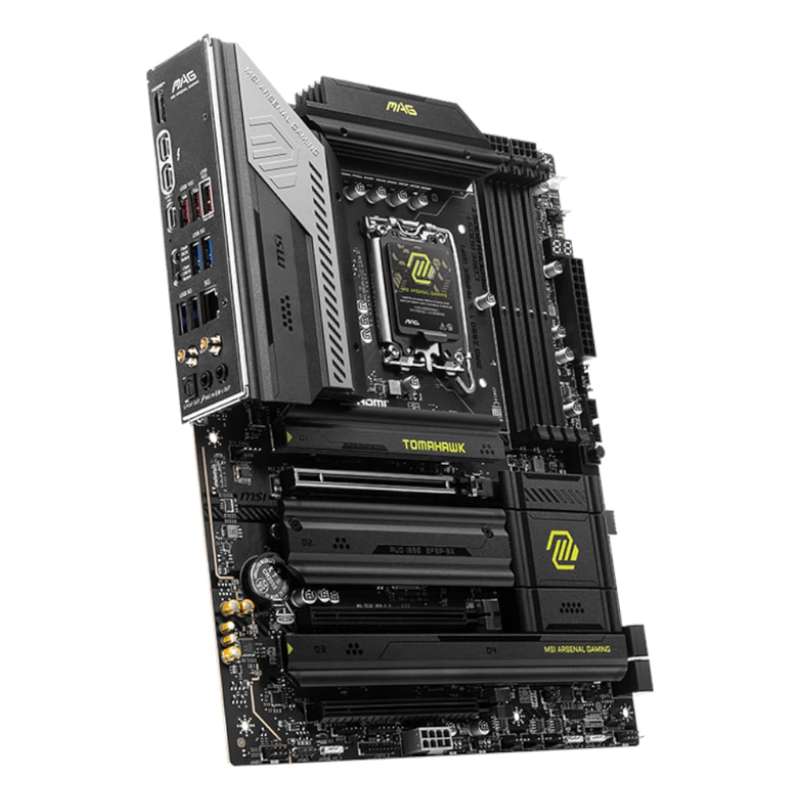

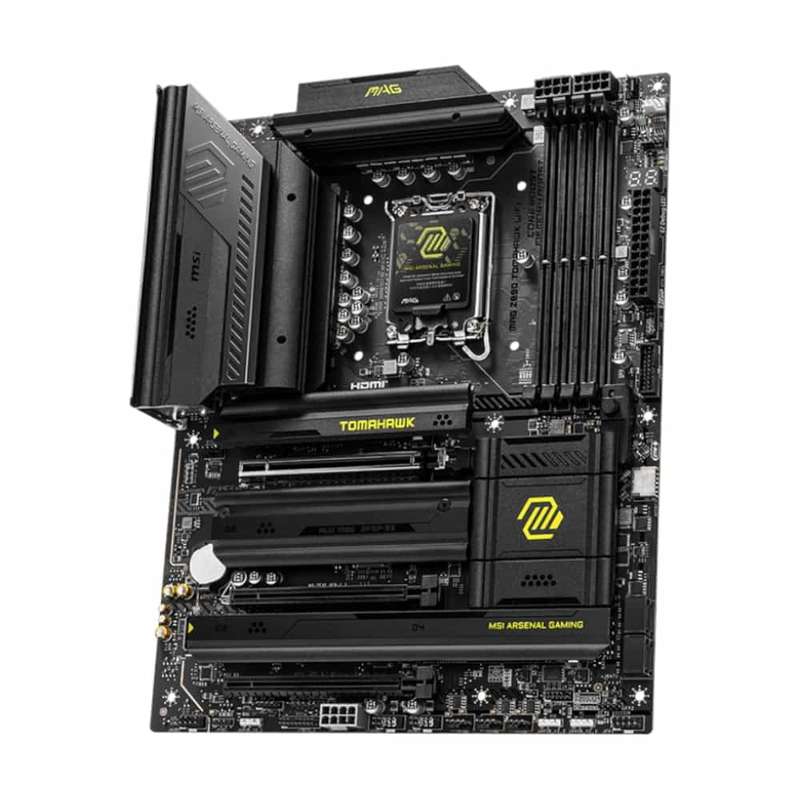

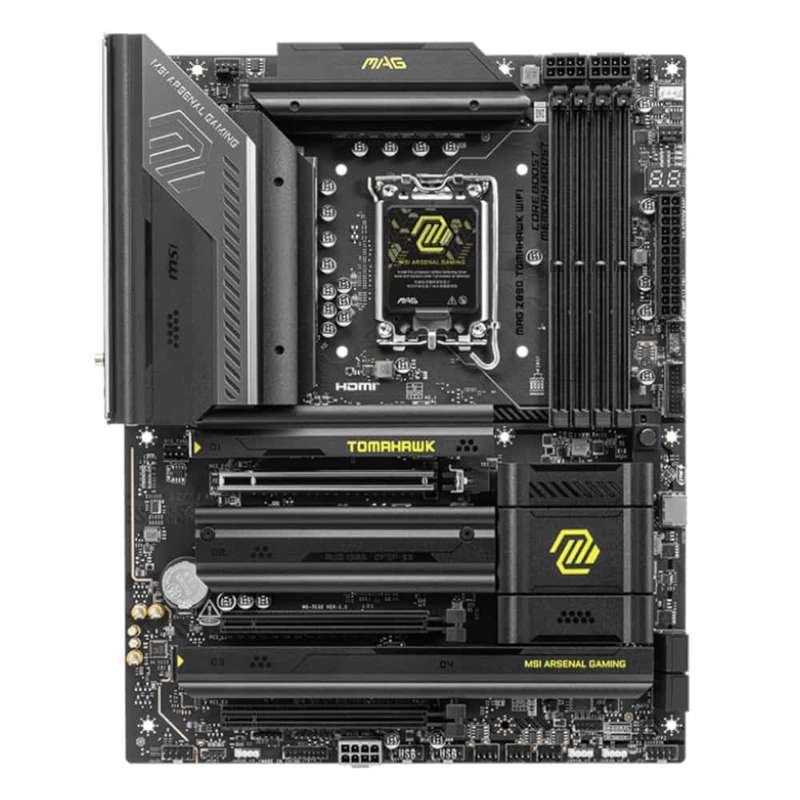

MAG Z890 TOMAHAWK WIFI is designed for gamers with a stable, durable and DIY friendly foundation for their PC builds. Coming up with Killer Wi-Fi 7 solution and 5G LAN, Thunderbolt 4, PCIe 5.0 solutions, Supplemental PCIe Power and exclusive EZ DIY features, it's ready for the battlefield of Intel Core Ultra processors.
The MSI ARSENAL GAMING (MAG) series is engineered to give gamers the edge they need to dominate on the virtual battlefield. Inspired by the rugged durability and unwavering reliability of military-grade equipment, the MAG series is built to provide an unwavering defense in every gaming scenario.
However, MAG isn't just about performance; it's a design language that conveys ruggedness and toughness, embodying the very essence of the MAG style. For gamers who are determined to dominate their digital battlegrounds, the MAG series is here to stand with you, establishing the ultimate defense.
MSI motherboards are designed with advanced hardware and technology, well-supporting the demanding computing usage of gaming and AI. Moreover, we also introduce AI to MSI Center and BIOS, making everything more effortless than before.
FEATURES:
Support Intel® Core Ultra Processors (Series 2) for LGA 1851 socket
Supports DDR5 Memory, Dual Channel DDR5 9200+ MT/s (OC)
Ultra Performance: 16+1+1+1 Duet Rail Power System 90A SPS, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 6-layer PCB made by 2oz thickened copper and server-grade level material
Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and EZ M.2 Shield Frozr II are built for high performance system and non-stop experience
EZ DIY: EZ PCIe Release, EZ M.2 Shield Frozr II, EZ M.2 Clip II and EZ Antenna
Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 x4 M.2
Ultra Connect: Thunderbolt 4 port, Intel® Killer 5G LAN & Intel® Killer Wi-Fi 7 Solution - the latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
Audio Boost 4: Reward your ears with studio grade sound quality for the most immersive gaming experience
SPECIFICATIONS:
Socket: LGA 1851
CPU: Supports Intel® Core Ultra Processors (Series 2)
Chipset: INTEL Z890
DDR5 Memory: 9200 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s
Memory Channel: Dual
DIMM Slots: 4
Max Memory Support: 256GB
PCI-E x16: 3
SATA 6G: 4
M.2 Slot: 4
RAID: 0/1/5/10
LAN: Intel® Killer E5000 5Gbps LAN
Wi-Fi and Bluetooth: Intel® Killer BE1750x Wi-Fi 7
USB 3.2 ports (Front): 1x (20Gbps Type C), 2x (5Gbps Type A)

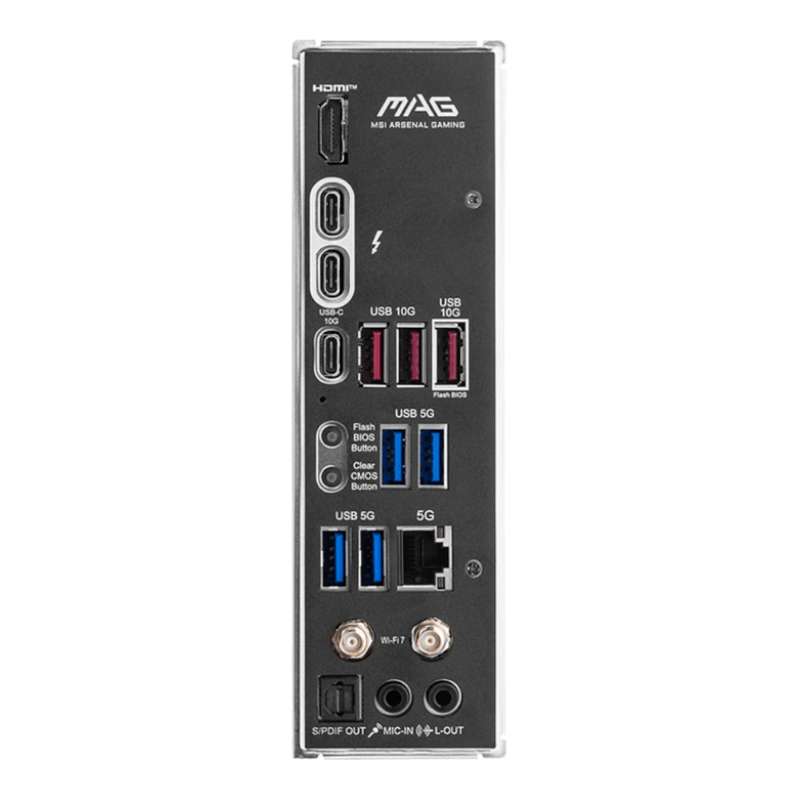

USB 3.2 ports (Rear): 1x (10Gbps Type C), 3x (10Gbps Type A), 4x (5Gbps Type A)
Thunderbolt: 2x (40Gbps Type C)
USB 2.0 ports (Front): 4
Audio ports (Rear): Realtek® ALC1220P Codec
HDMI: 1
Type-C (DisplayPort): 2
DirectX: 12
Form Factor: ATX
Operating System: Support for Windows® 11 64-bit
WHAT'S IN THE BOX

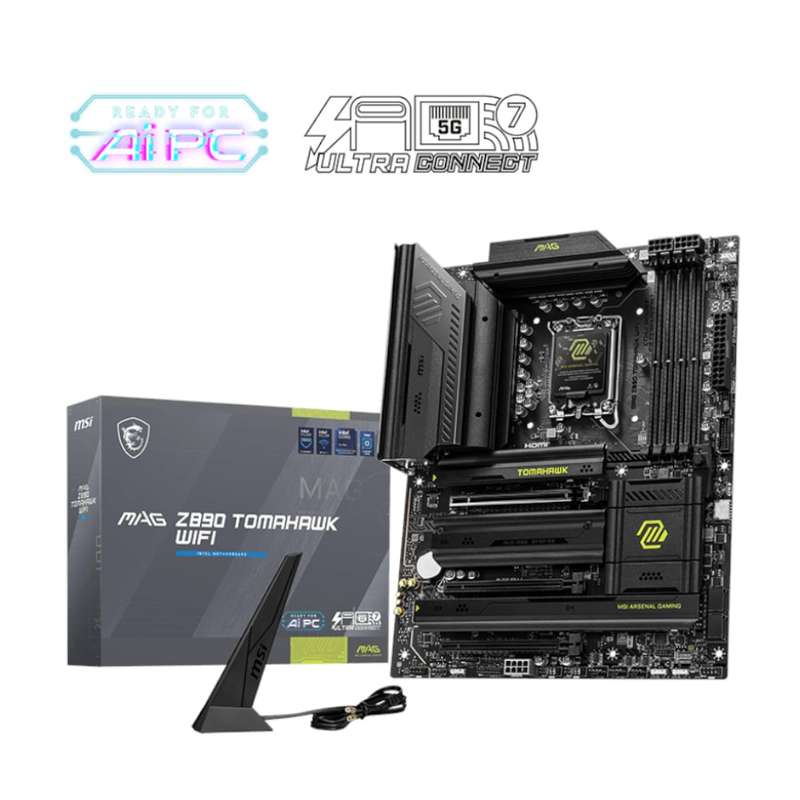

MSI MAG Z890 TOMAHAWK WIFI Intel LGA1851 ATX Gaming Motherboard x1
SATA Cables x2
EZ M.2 Clip II x2
EZ M.2 Clip II Remover x1
USB Drive x1
Cable Sticker Pack x1
EZ Wi-Fi Antenna
1 to 3 EZ Conn-Cable (V2) x1
EZ Front Panel Cable x1
