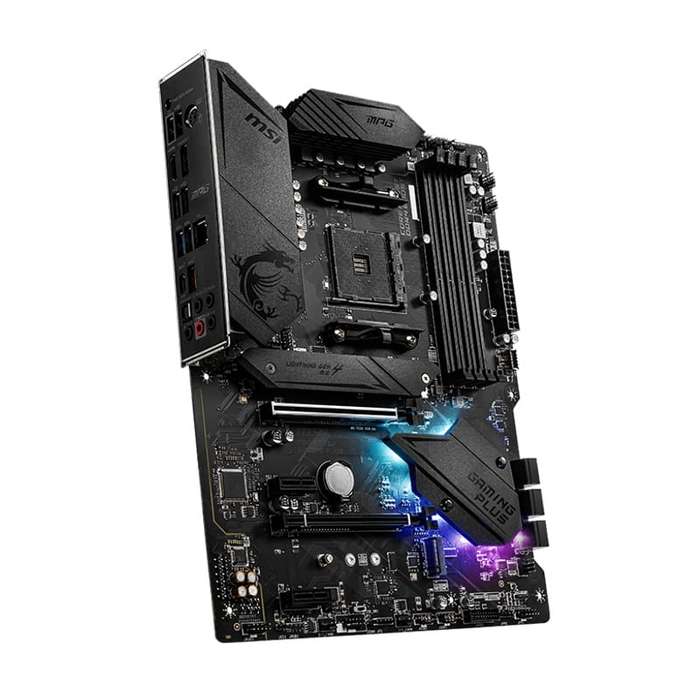

MSI MPG B550 Gaming Plus AM4 ATX Motherboard

The MPG series brings out the best in gamers by allowing full
expression in colour with advanced RGB lighting control and
synchronization. Experiment on another level of personalization with a
front LED strip that provides convenient in-game and real-time
notifications. With the MPG series, transform your equipment into the
centre of attention and top leaderboards in style. With more cores'
processors, thermal and power design is more important to make sure the
temperature keeps lower. MSI extended PWM heatsink and enhanced circuit
design ensures even high-end CPU to run at full speed with MSI
motherboards. High-performance MSI motherboards are loaded with advanced
features and the latest technology to overwhelm any challenge at hand
no matter whether you're a gamer, prosumer, or PC enthusiast. Utilizing
3rd Gen Ryzen processors, MSI B550 motherboards feature the latest
Lightning Gen 4 M.2 which is the fastest onboard storage solution on the
market with up to 64 Gb/s transfer speed.

FEATURES:

• Supports AMD Ryzen 5000 & 3000 Series desktop processors (not
  compatible with AMD Ryzen 5 3400G & Ryzen 3 3200G) and AMD Ryzen
  4000 G-Series desktop processors
• Supports DDR4 Memory, up to 4400(OC) MHz
• Lightning Fast Game experience: PCIe 4.0, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr, AMD Turbo USB 3.2 GEN 2
• Enhanced Power Design: Core Boost, Digital PWM IC, 2oz Thickened Copper PCB, DDR4 Boost
• Premium Thermal Solution: Extended Heatsink Design and M.2 Shield
  Frozr is built for a high-performance system and non-stop gaming
  experience
• Pre-installed I/O Shielding: Better EMI protection and more convenience for installation
• Flash BIOS Button with Optimized ClearCMOS Function: Simply use a
  USB key to flash any BIOS within seconds. Restore the BIOS to the
  default settings without any additional actions.
• Audio Boost: Reward your ears with studio grade sound quality

SPECIFICATIONS:

• Socket: AM4
• CPU (Max Support): RYZEN 9
• Chipset: AMD B550 Chipset
• DDR4 Memory: Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/
  3066/ 3200 MHz by JEDEC, Supports DDR4 2667/ 2800/ 2933/ 3000/ 3066/
  3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133/ 4266/ 4400+ MHz by A-XMP OC
  MODE
• Memory Channel: Dual
• DIMM Slots: 4
• Max Memory (GB): 128
• PCI-E x16: 2
• PCI-E x1: 2
• SATAIII: 6
• M.2 Slot: 2
• RAID: 0/1/10
• TPM (header): 1
• LAN: 1x Realtek® 8111H Gigabit LAN controller
• USB 3.2 ports (Front): 1(Gen 1, Type C), 2(Gen 1, Type A)
• USB 3.2 ports (Rear): 1(Gen 2, Type C), 1(Gen 2, Type A), 2(Gen 1, Type A)
• USB 2.0 ports (Front): 4
• USB 2.0 ports (Rear): 4
• Audio ports (Rear): Realtek® ALC892/ALC897 Codec
• DisplayPort: 1
• HDMI: 1
• DirectX: 12
• Form Factor: ATX
• CrossFire: Yes
• Operating System: Support for Windows® 10 64-bit

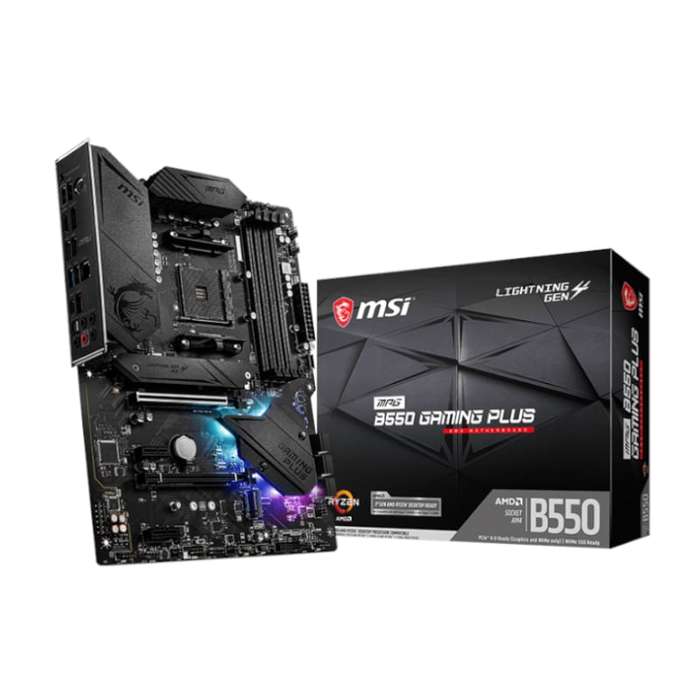

WHAT'S IN THE BOX:

• MSI MPG B550 Gaming Plus AM4 ATX Motherboard Black x1
• SATA cables x2
• Driver DVD x1
• User Manual x1
• Quick Install Guide x1
