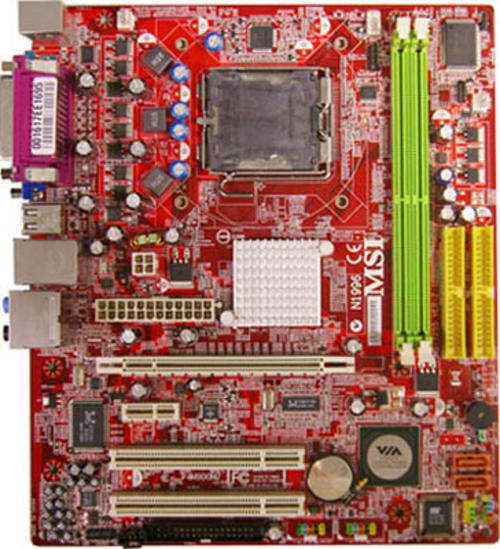

MSI P4M900 M2 MOTHERBOARD + INTEL CELERON 3.06GHz CPU + 2GB MEMORY

Chipset

• VIA® P4M900 Chipset
- Supports P4 processor FSB 1066/800/533MHz
- Supports DDR2 667/533/400 memory

• VIA® VT8237A/VT8237S Chipset
- Ultra DMA 33/66/100/133 master mode.
- ACPI & PC2001 compliant enhanced power management.
- Supports USB 2.0 up to 8 ports.



Main Memory

• Supports two unbuffered 240-pin DIMM of 1.8 Volt DDR2 DRAM
• Supports up to 2GB memory size.
• Supports DDR2 400/533/667 memory interface.



Slots
• One PCI Express x 16 slot & one PCI Express x 1 slot.
• Two PCI 2.2 32-bit PCI bus slots (support 3.3V/5V PCI bus interface).

Audio

• Chip integrated by Realtek® ALC883
- Flexible 8-channel audio with jack sensing
- Compliant with Azalia 1.0 spec.



LAN

• Supports 10/100/1000 Fast Ethernet by Realtek RTL8110SC



Internal I/O Connectors

- ATX 24-Pin power connector
- 4-pin ATX 12V power connector
- CPU / Power /System fan connectors
- CD-in connector
- Clear CMOS jumper
- Chassis intrusion switch connector
- 1 x SPDIF-out connector
- Serial port connector (JCOM2)
- 2 x USB 2.0 connector support additional 4 ports
- Front panel audio connector
- Front panel connectors
- 1 x Floppy disk drive connector
- 2 x Ultra DMA 133 IDE device connectors
- 2 x Serial ATA device connectors

Back Panel I/O Ports

- 1 x Parallel
- 1 x Serial port (COM 1)
- 1 x PS/2 Keyboard
- 1 x PS/2 Mouse
- 1 x Audio I/O (6 in 1)
- 4 x USB 2.0
- 1 x RJ45 LAN jack
- 1 x Graphics Card port



BIOS

• The mainboard BIOS provides "Plug & Play" BIOS which detects the peripheral devices
and expansion cards of the board automatically.
• The mainboard provides a Desktop Management Interface (DMI) function which records
your mainboard specifications.



Dimension

• 24.4 cm(L) x 21.0 cm(W) M-ATX Form Factor

Mounting

• 6 mounting holes.
