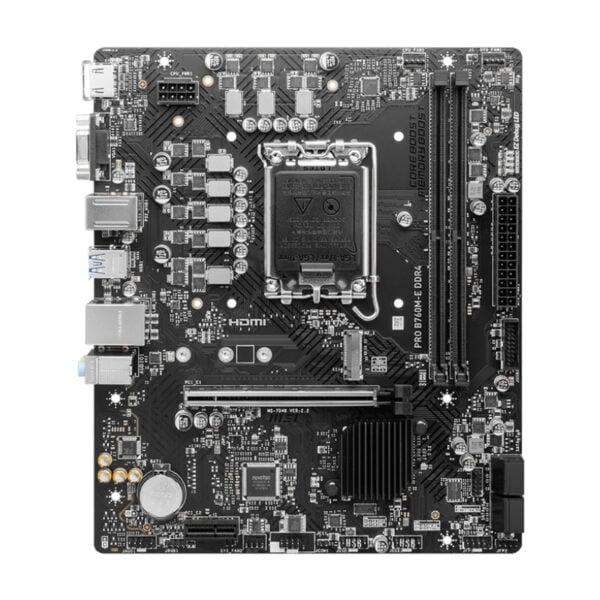

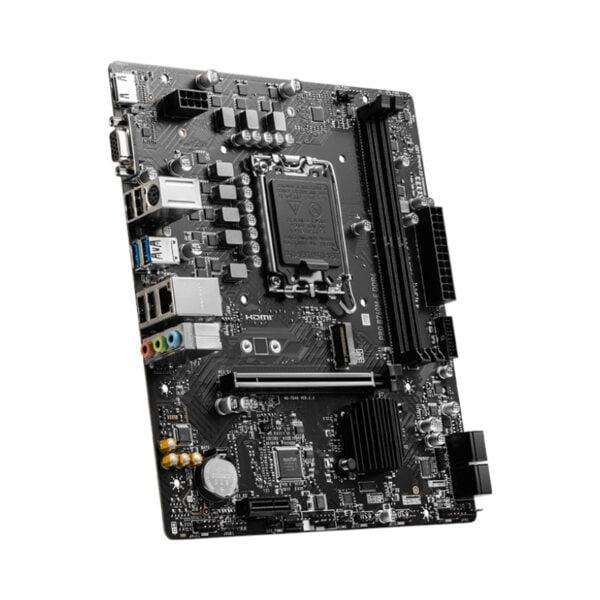

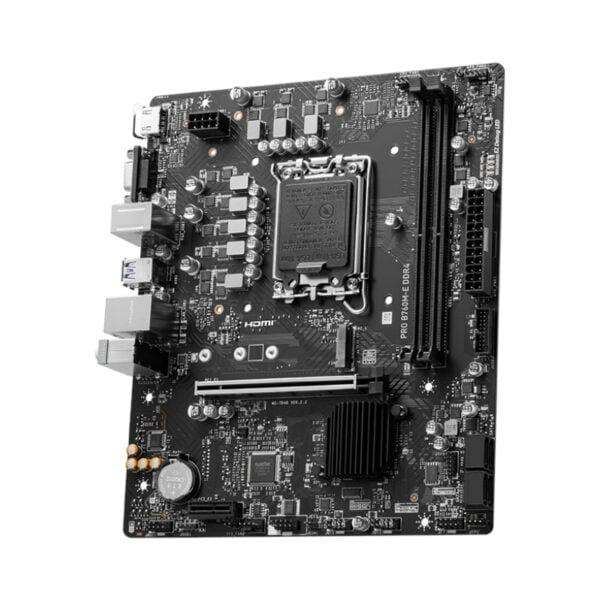

MSI PRO B760M-E DDR4 Intel LGA1700 mATX Motherboard

FEATURES:

Supports 12th/13th Gen Intel® Core, Pentium® Gold and Celeron® processors for LGA 1700 socket

Supports DDR4 Memory, Dual Channel DDR4 4800+MHz (OC)

Core Boost: With a premium layout and digital power design to support more cores

Memory Boost: Advanced technology to deliver pure data signals for the best performance

Lightning Fast Experience: PCIe 4.0, Lightning Gen4 x4 M.2

AUDIO BOOST: Reward your ears with studio-grade sound quality

Steel Armor: Protecting VGA cards against bending and EMI for better performance

SPECIFICATIONS:

Socket: LGA 1700

CPU (Max Support): Supports 12th/ 13th Gen Intel® Core Processors, Pentium® Gold and Celeron® Processors

Chipset: Intel® B760 Chipset

DDR4 Memory: 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC)

Memory Channel: Dual

DIMM Slots: 2

Max Memory (GB): 64

PCI-E x16: 1

PCI-E x1: 1

SATA6G: 4

M.2 Slot: 1

RAID: 0/1/5/10

TPM Header: 1

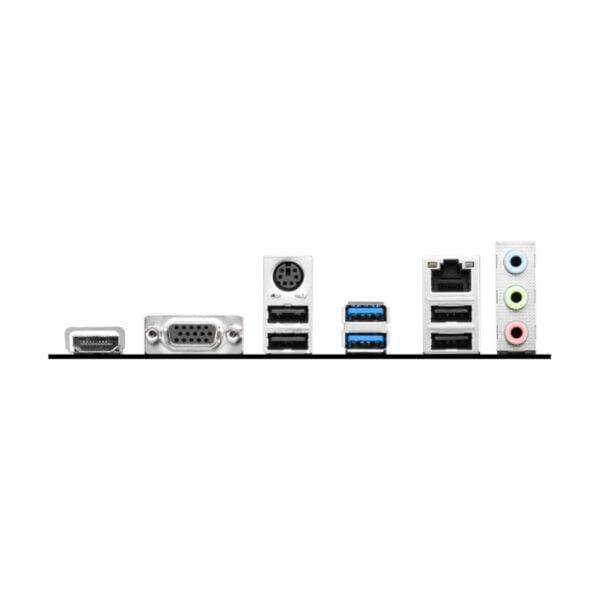

LAN: Realtek® RTL8111H Gigabit LAN

USB 3.2 ports (Front): 2(Gen 1, Type A)

USB 3.2 ports (Rear): 2(Gen 1, Type A)

USB 2.0 ports (Front): 4

USB 2.0 ports (Rear): 4

Serial Ports (Front): 1

Audio ports (Rear): Realtek® ALC897 Codec

VGA: 1

HDMI: 1

DirectX: 12

Form Factor: mATX

Operating System: Support for Windows® 11 64-bit, Windows® 10 64-bit

Product Dimensions: 20 x 23.6 cm

WHATS IN THE BOX:

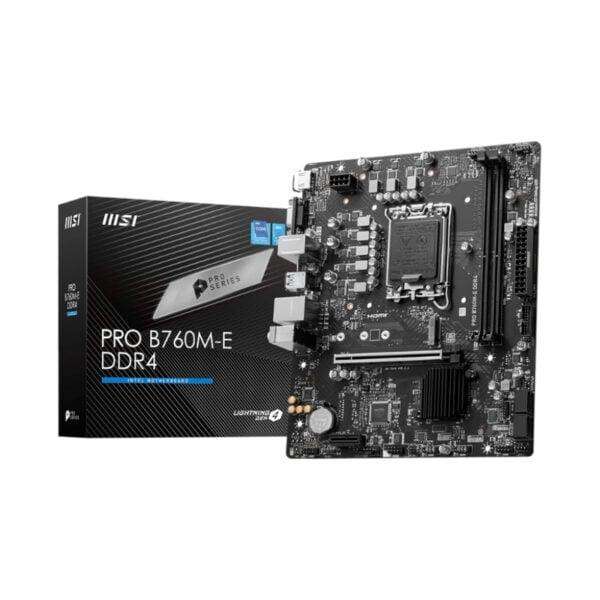

MSI PRO B760M-E Intel 1700 M-ATX Motherboard Black x1

I/O Shield x1

SATA cables x1

Driver DVD x1

EZ M.2 screw x1

Quick Install Guide x1
