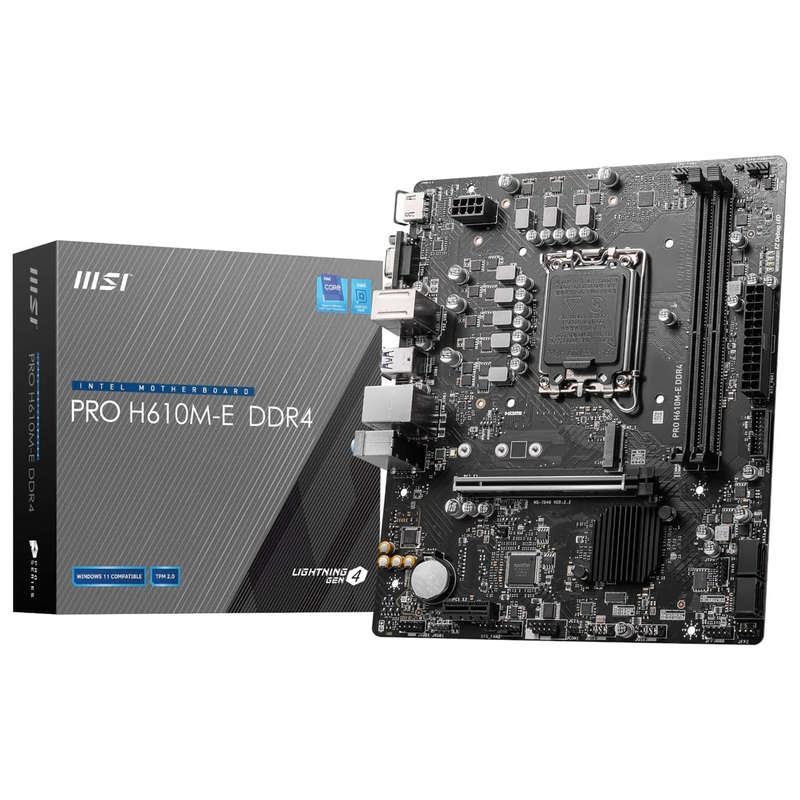

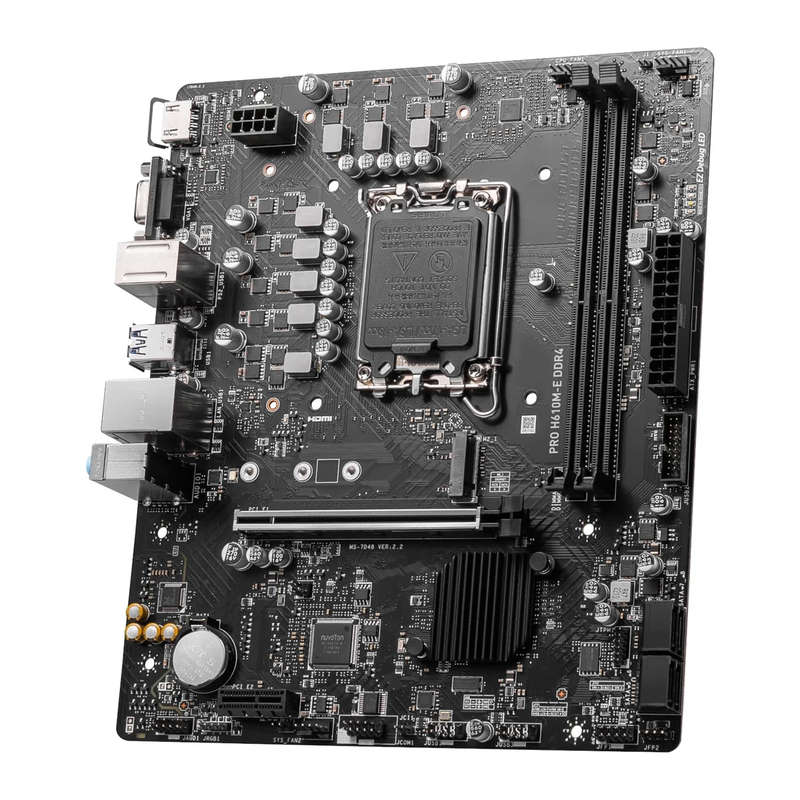

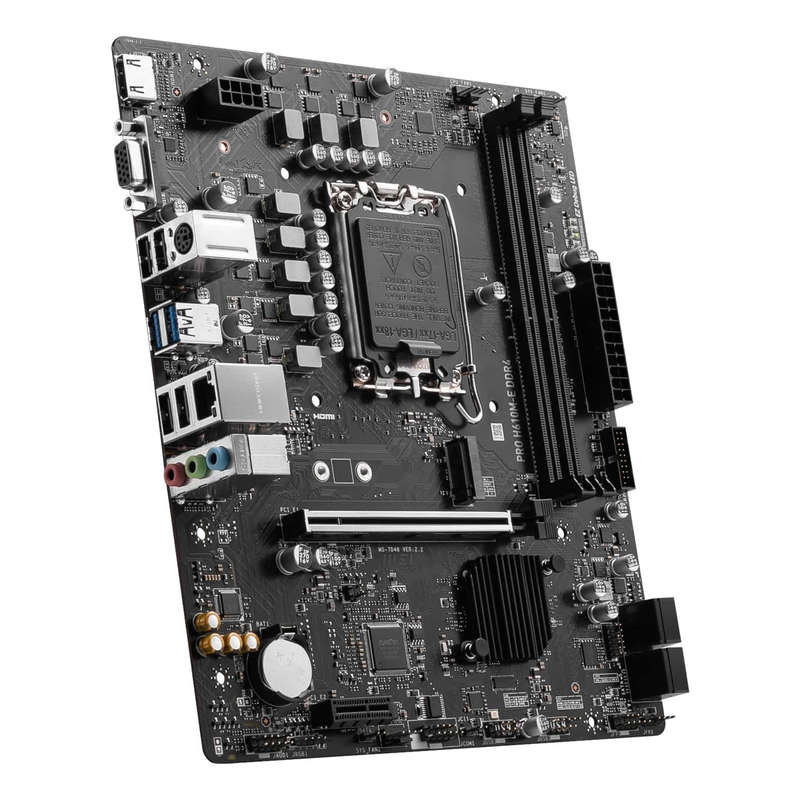

MSI PRO H610M-E DDR4 Intel H610 Alder Lake LGA 1700 Micro-ATX Desktop Motherboard
New
Shipping
Standard courier shipping from R30
R30 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30 surcharge. This will be calculated at checkout if applicable.
Check my rate
Check my rate
Ready to ship in
The seller has indicated that they will usually have this item
ready to ship within 3 business days. Shipping time depends on your delivery address. The most
accurate delivery time will be calculated at checkout, but in
general, the following shipping times apply:
Standard Delivery
| Main centres: | 1-3 business days |
| Regional areas: | 3-4 business days |
| Remote areas: | 3-5 business days |
Get it now, pay later
Seller
Product details
Condition
New
Location
South Africa
Product code
MSIMB
Bob Shop ID
610411496
- Micro-ATX Form Factor Motherboard
- Intel H610 Chipset
- LGA 1700 Socket Supports 12th Gen Core Processors
- Intel 13th Gen Processors Supported
- 2x DDR4 DIMM Slots, Up to 64GB (2x32GB) Max Memory
- Supports Up to DDR4-3200MT/s (JEDEC)
- 1x PCIe 4.0 x16 Slot
- 1x PCIe 3.0 x1 Slot
- 1x M.2 2280 PCIe 3.0 x4 NVMe SSD Slot
- 4x SATA 3.0 Ports
- 2x USB 5Gb/s Type-A Ports
- 4x USB 2.0 Type-A Ports
- 1x HDMI 2.0, 1x VGA D-Sub Port
- 3x 3.5mm Audio Jacks (Headphone, Line In, Microphone)
- Realtek RTL8111H Gigabit Ethernet RJ-45 LAN
- Realtek ALC897 High-Definition Audio Codec
- MSI Mystic Light RGB Sync
- MSI Center Software
- Supports Windows 10, Windows 11 64-bit
- 3 Year Warranty
| SPECIFICATIONS | |
| Brand | MSI |
| Series | PRO Series |
| Model | PRO H610M-E DDR4 |
| CPU Support | LGA1700 socket: Support for 12th Generation Intel Core, Pentium Gold and Celeron Processors |
| LGA1700 socket: Support for 13th Generation Intel Core, Pentium Gold and Celeron Processors | |
| Intel 13th Gen Support requires BIOS update for compatibility. | |
| Chipset | Intel H160 Express |
| Memory Support | |
| Intel 12th & 13th Gen Series | 2x DDR4 memory slots, support up to 64GB |
| Supports 1R 2133/ 2666/ 3200 MHz (by JEDEC & POR) | |
| Supports Dual-Channel mode | |
| Supports non-ECC, un-buffered memory | |
| Video | |
| VGA D-Sub | 1x VGA port, supporting a maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz |
| HDMI | 1x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz, Support for HDMI 2.1 TDMS and HDCP 2.3 |
| Integrated Intel graphics required. Actual support may vary by CPU. | |
| Expansion Slots | |
| CPU Direct | 1x PCIe 4.0 x16 Physical, x16 Electrical Slot |
| Intel H610 Chipset | 1x PCIe 3.0 x1 Physical, x1 Electrical Slot |
| Storage | |
| CPU Direct | 1x M.2 slot (Key M) supports up to PCIe 3.0 x4, Supports 2242/ 2260/ 2280 storage devices |
| Intel H610 Chipset | 4x SATA 6Gb/s connectors |
| Networking | |
| LAN | Realtek RTL8111H Gigabit LAN 10/100/1000 |
| WiFi | N/A |
| Bluetooth | N/A |
| Audio | |
| Codec | Realtek ALC897 High-Definition Audio Codec |
| Supports 7.1-Channel High Definition Audio | |
| Connectivity | |
| Ports | 1x PS/2 Combo Port |
| 2x USB 3.2 Gen 1 ports | |
| 4x USB 2.0/1.1 ports | |
| 1x VGA D-Sub | |
| 1x HDMI 2.0 port | |
| 1x RJ-45 port | |
| 3x audio jacks | |
| General | |
| Internal Connectors | 1x 24-pin ATX main power connector |
| 1x 8-pin ATX 12V power connector | |
| 1x Front panel audio connector | |
| 2x System panel connectors | |
| 1x Chassis Intrusion connector | |
| 1x TPM module connector | |
| 1x Serial port connector | |
| 1x 4-pin CPU fan connector | |
| 2x 4-pin system fan connectors | |
| 1x USB 3.2 Gen 1 5Gbps connector (From H610 chipset), Supports additional 2 USB 3.2 Gen 1 5Gbps ports | |
| 2x USB 2.0 Type-A connectors (From Hub-GL850G), Supports additional 4 USB 2.0 ports | |
| 1x 4-pin RGB LED connector | |
| 4x EZ Debug LED | |
| 1x Clear CMOS jumper | |
| I/O Controller | NUVOTON NCT6687-D Controller Chip |
| LED Displays | MSI EZ Debug LED Array |
| BIOS | 1x 256 Mbit flash |
| Use of licensed AMI UEFI BIOS | |
| ACPI 6.4, SMBIOS 3.4 | |
| Form Factor | Micro-ATX Form Factor, 236 x 200 mm (H x W) |
| Operating System Support | Windows 10 64-bit |
| Windows 11 64-bit | |
| Boxed Accessories | 1x M.2 Clip |
| 2x SATA 3.0 Cables | |
| 1x I/O Shield | |
| Quick Installation Guide | |
| Warranty Information | |
| Warranty | 3 Year Warranty |
