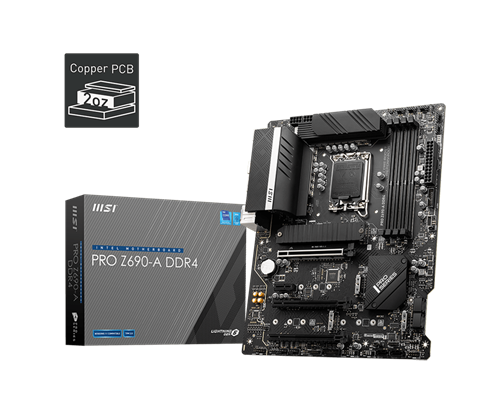

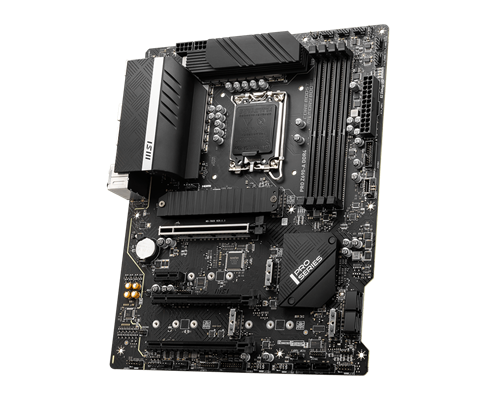

MSI PRO Z690-A DDR4 LGA1200 Motherboard - Supports 12th Gen Intel Core Processors

MSI PRO Z690-A DDR4 LGA1200 Motherboard - Supports 12th Gen Intel Core Processors, Pentium Gold and Celeron Processors, Intel Z690 Chipset, 4x DDR4 memory slots, support up to 128GB, 6x SATA 6Gb/s ports, 4x M.2 slots (Key M), 1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz, 1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz, 6x USB 2.0 ports (2 Type-A port on the back panel, 4 ports available through internal USB 2.0 connectors), 1x USB 3.2 Gen 2x2 20Gbps Type-C port on the back panel, 2x USB 3.2 Gen 2 10Gbps ports (1 Type-C internal connector and 1 Type-A port on the back panel), 6x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, and 4 ports are available through the internal USB connectors), 4x USB 2.0 Type-A ports on the back panel, 3x PCIe x16 slots, 1x PCIe 3.0 x1 slot, Realtek ALC897 Codec, Intel I225-V 2.5Gbps LAN controller - ATX Form Factor, Retail Box, 3 year warranty



PRODUCT OVERVIEW

PRO series helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity.
