MSI X670E GAMING PLUS WIFI motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies. Using USB 3.2 devices has never been faster! MXI X670E GAMING PLUS WIFI motherboards offer various options to connect and boost your UBS devices, offering never-before-seen USB speeds up to 20Gb/s when connecting the rear USB Type-C port.
Unleash and sustain maximum performance with an aggressive VRM design built with a digital CPU power system. Combining 8 + 8-pin power connectors and exclusive Core Boost technology, the MSI X670E GAMING PLUS WIFI motherboard is ready to sustain heavy gaming loadings. The PCB design has been optimized for higher bandwidth and faster transfer speeds, which is also beneficial for reliable circuit transmission. Have trouble turning screws? MSI's innovative EZ M.2 clip assists you in installing an M.2 SSD quickly and effortlessly.
The 4-pin, 8-pin, and 24-pin power connectors of MSI motherboards are all designed with solid pins. The solid pin design allows for a more stable transmission of 12V power to the CPU, even when handling high current loads. The grounding structure of power phases is the MSI's exclusive design. This patented design enables suppression of the electromagnetic interference (EMI) generated by the power phases and helps to efficiently conduct heat to the copper plane with grounding properties. Doubling over the previous generation, the bandwidth of a x16 interface can reach 128GB/s. The advanced SMT(Surface Mount Technology) PCIE slot diminish interference and electrical noise, fully support the PCI-E 5.0 signal.
FEATURES:
Supports AMD Ryzen 8000 / 7000 Series Desktop Processors
Supports DDR5 Memory, up to 7800+(OC) MHz
Enhanced Power Design: 14+2+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost
Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen5 M.2, USB 3.2 Gen 2x2
Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works
High Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material
AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
SPECIFICATIONS:
Socket: AMD Socket AM5
CPU: Supports AMD Ryzen 8000/ 7000 Series Desktop Processors
Chipset: AMD X670
DDR5 Memory: 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz
Memory Channel: Dual
DIMM Slots: 4
Max Memory (GB): 192
PCI-E x16: 3
PCI-E x1: 1
SATA 6G: 4
M.2 Slot: 4
RAID: 0/1/10
LAN: 1 x Realtek® RTL8125BG 2.5Gbps LAN
Wi-Fi and Bluetooth: AMD Wi-Fi 6E
USB 3.2 ports (Front): 1(Gen 2, Type C), 4(Gen 1, Type A)

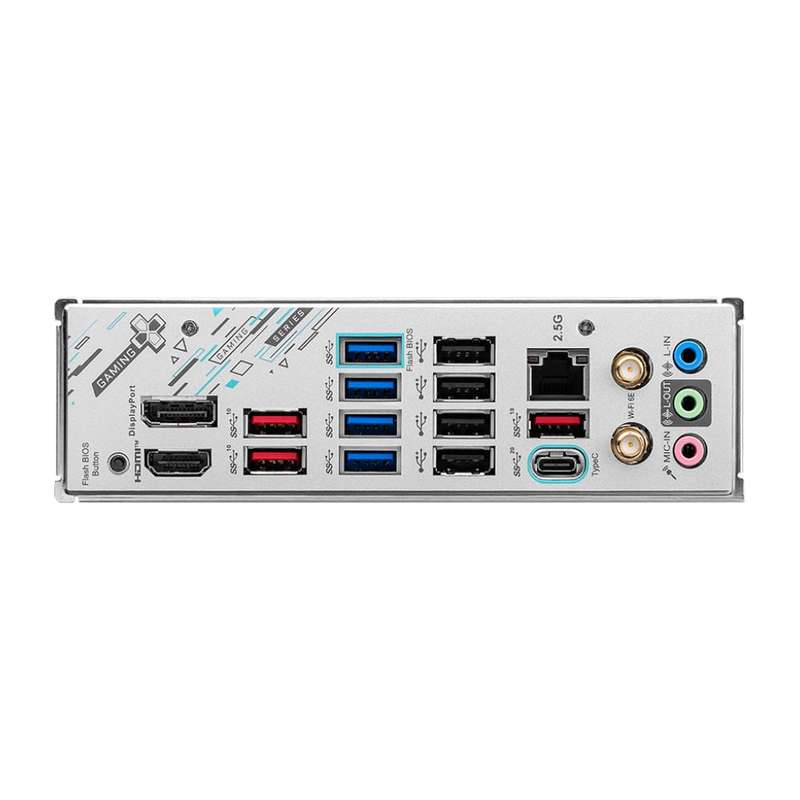

USB 3.2 ports (Rear): 1(Gen 2x2, Type C), 3(Gen 2, Type A), 4(Gen 1, Type A)
USB 2.0 ports (Front): 4
USB 2.0 ports (Rear): 4 (Type-A)
Audio ports (Rear): Realtek® ALC897 Codec
HDMI: 1
DisplayPort: 1
DirectX: 12
Form Factor: ATX
Operating System: Support for Windows® 10 64-bit/11 64-bit
WHAT'S IN THE BOX:

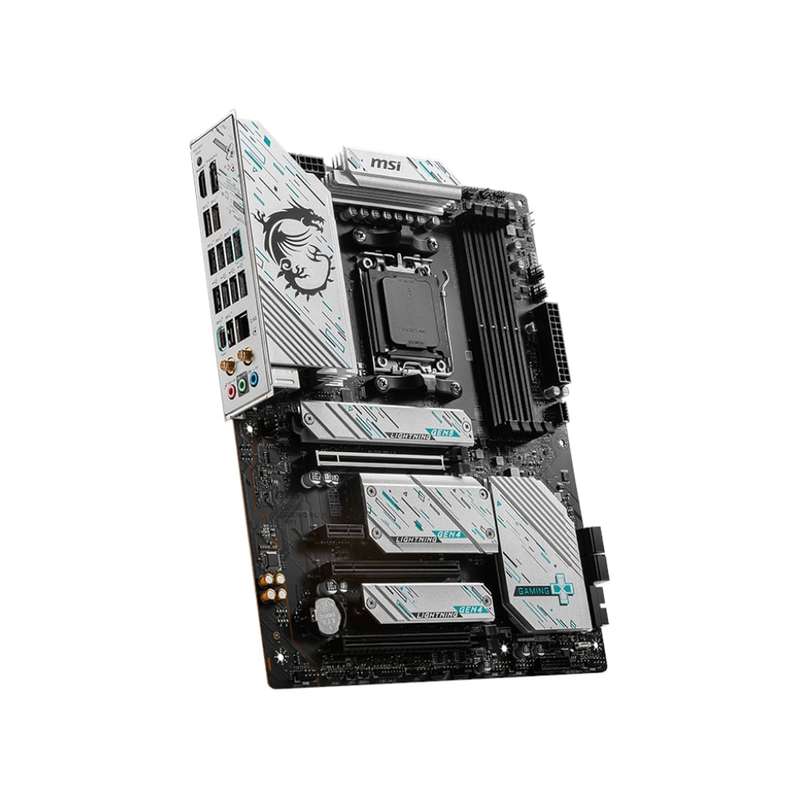

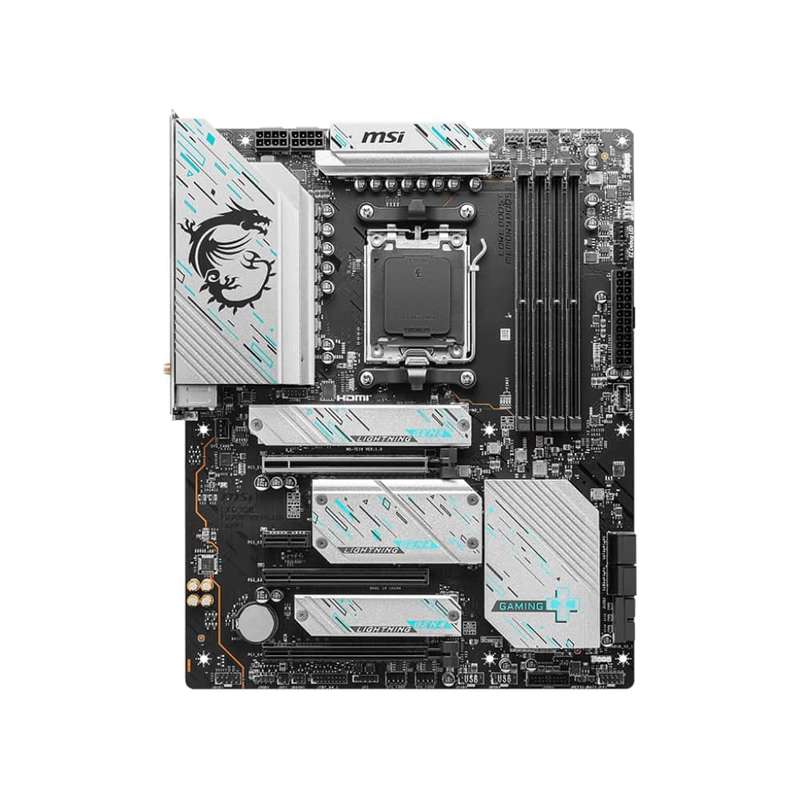

MSI MAG X670E Gaming Plus Wi-Fi ATX Motherboard Black x1
Wi-Fi Antenna x1
SATA cables x2
M.2 Standoff Screws/Sets x3
M.2 Plate Screw x1
Quick Install Guide x1
