Description

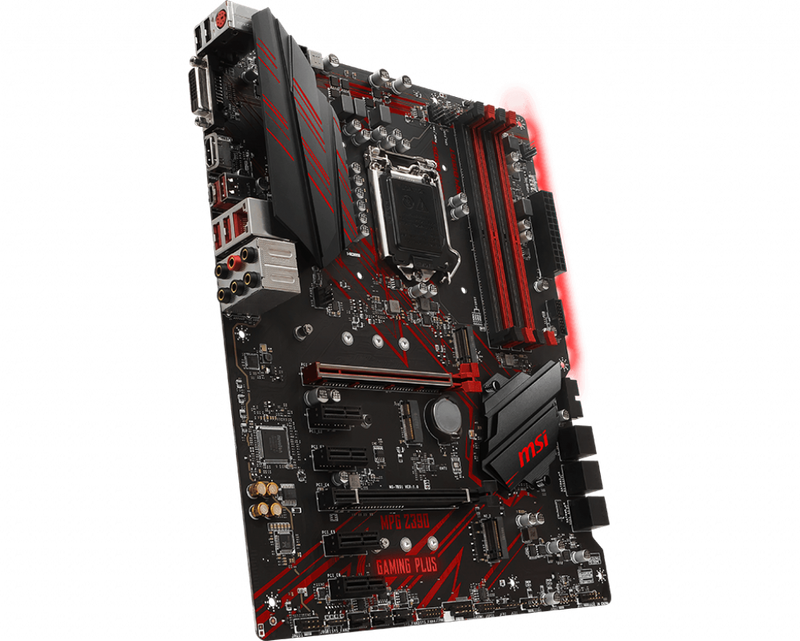

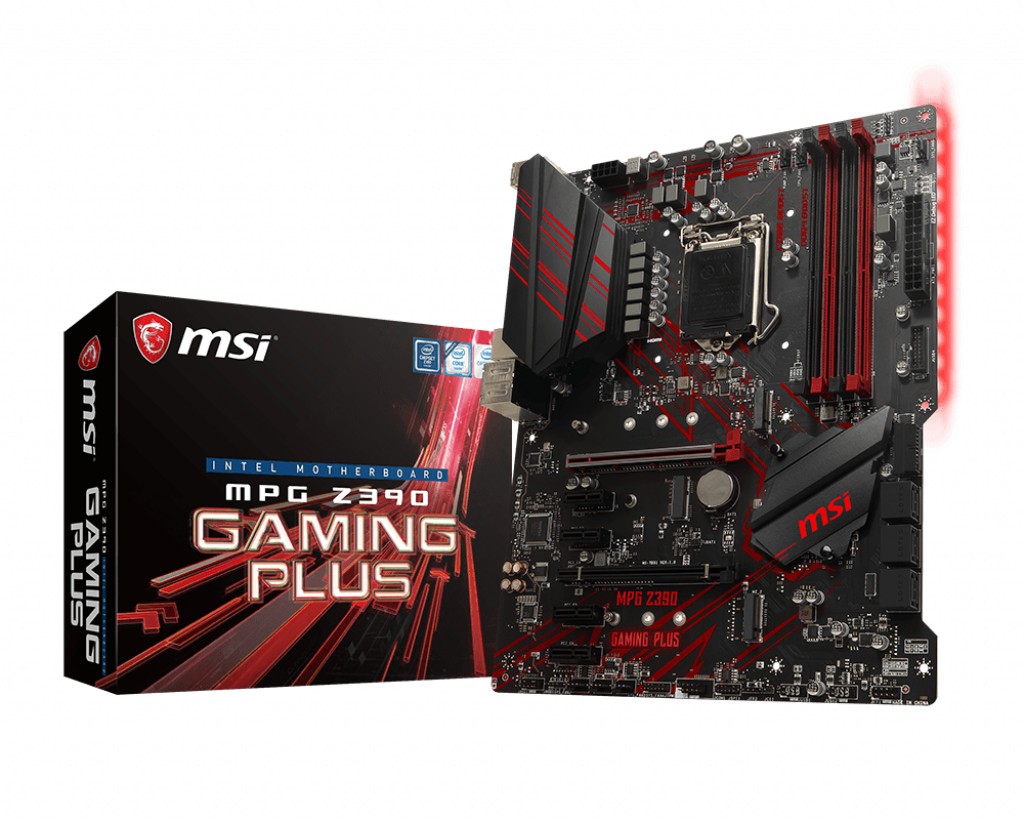

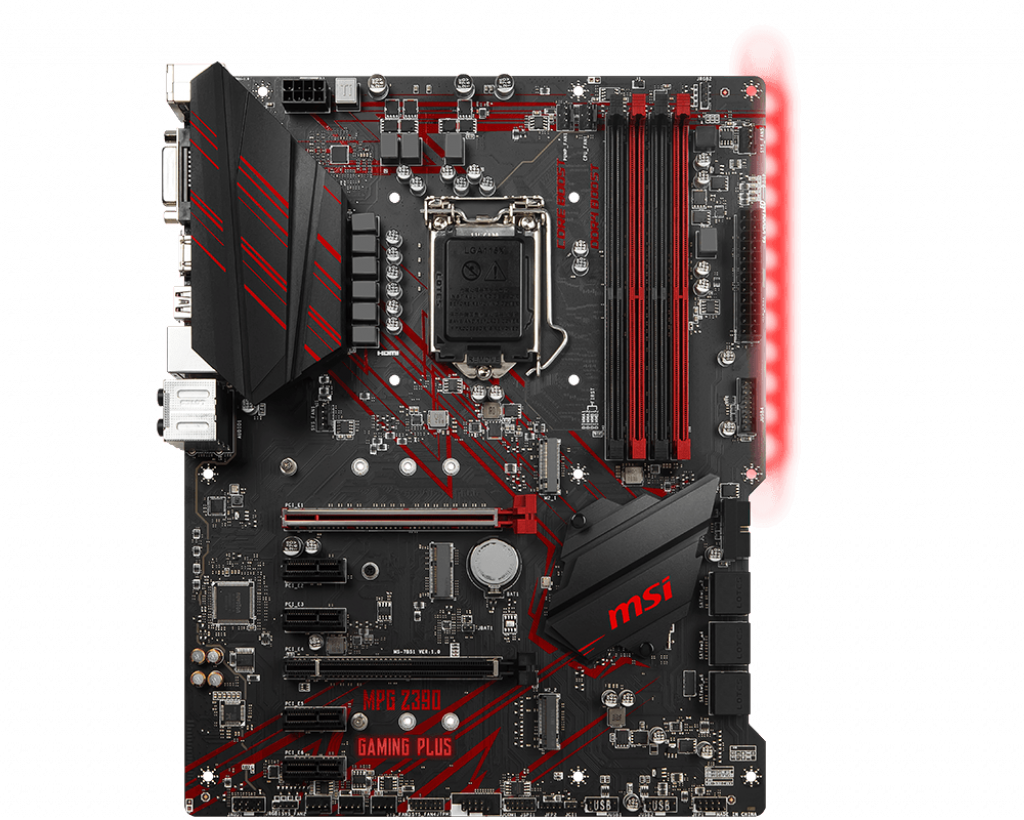

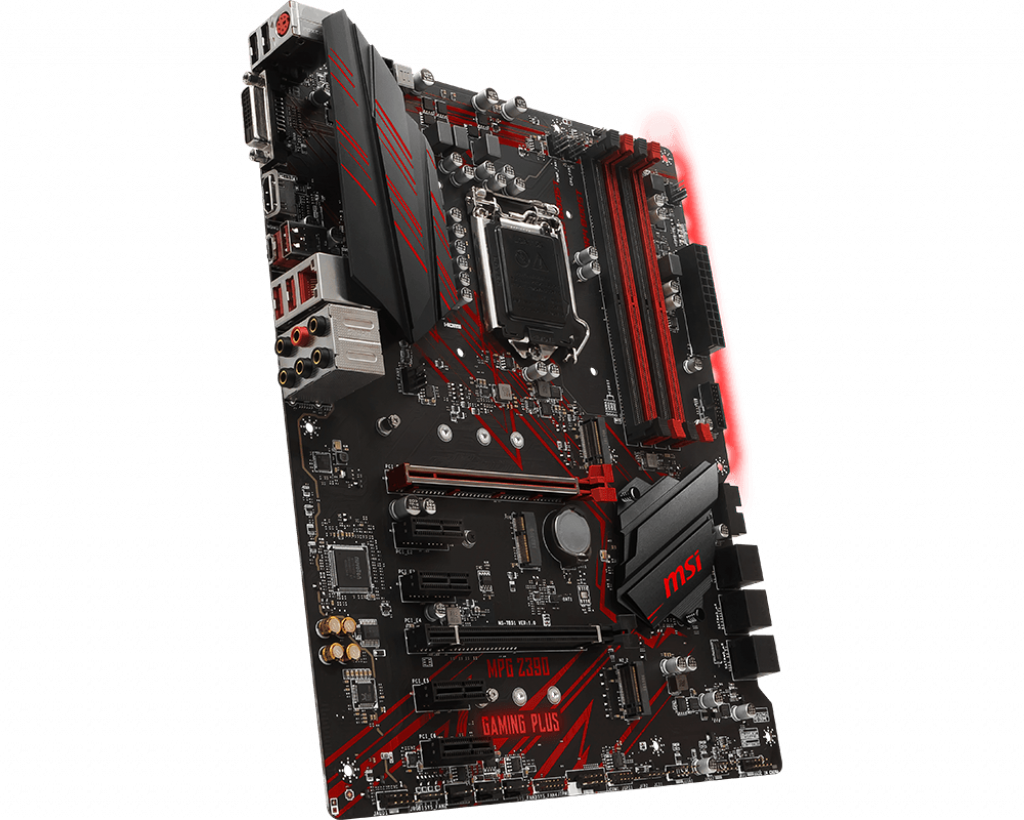

MSI Z390 GAMING PLUS Motherboard
Satisfying gamers with what they really need, MPG Z390 GAMING PLUS is equipped with Extended Heatsink Design, Core boost, Twin Turbo M.2, Game Boost, Turbo USB and Intel CNVi connector and MSI latest Dragon Center APP.
Features:
- Supports 9th / 8th Gen Intel Core / Pentium Gold / Celeron processors for LGA 1151 socket
- Supports DDR4 Memory, up to 4400(OC) MHz
- Lightning Fast Game experience: 2x TURBO M.2, Intel Optane Memory Ready. Turbo USB 3.1 GEN2
- Set Core Power Free: Extended Heatsink Design, Core Boost, Game Boost, DDR4 Boost
- Intel CNVi Ready: Supports Intel CNVi Wi-Fi module, IEEE802.11 AC wave2, providing a high speed wireless network connection
- Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience
- Dragon Center: A brand new software which integrates all MSI tools like GAME MODE, VOICE BOOST, LIVE UPDATE with user friendly user interface
Core Boost:
- With premium layout and fully digital power design to support more cores and provide better performance.
Extended Heatsink Design:
- MSI extended PWM and enhanced circuit design ensures even high-end processors to run in full speed.
Twin Turbo M.2:
- With 2 x M.2 slots. Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs.
Intel Turbo USB 3.1 Gen2:
- Powered by Intel, ensure an uninterrupted connection with more stability and fastest USB speeds.
DDR4 Boost:
- Advanced technology to deliver pure data signals for the best gaming performance and stability.
Audio Boost:
Reward your ears with studio grade sound quality for the most immersive audio experience.
PCI-E Steel Armor:
- Protecting VGA cards against bending and EMI
PS/2 Keyboard/Mouse port:
- Six USB 2.0 ports
- DisplayPort
- HDMI
- Six USB 3.1 ports
- Two USB 3.1 type-A + C
- Gbit LAN, 7.1 audio ports
PS/2 Keyboard/Mouse port:
- Six USB 2.0 ports
- DisplayPort
- HDMI
- Six USB 3.1 ports
- Two USB 3.1 type-A + C
- Gbit LAN, 7.1 audio ports
Specifications:
- Intel: CNVi Ready
- Supports Intel: CNVi Wi-Fi, IEEE 802.11 AC wave2.
- Model Name MPG Z390 GAMING PLUS
- CPU Support Supports 9th / 8th Gen Intel
- Core / PentiumGold /Celeron processors
- CPU Socket LGA 1151
- Chipset Intel: Z390 Chipset
- Graphics Interface 2 x PCI-E 3.0 x16 slots
- Supports 2-way CrossFire
- 2 x USB 3.1 (Gen2, A+C) + 6 x USB 3.1 (Gen1) + 6 x USB
- 2.0
- Display Interface HDMI, DVI Requires Processor Graphics
- Memory Support 4 DIMMs, Dual Channel DDR4-4400(OC)
- Expansion Slots 4 x PCI-E x1 slot
- 1 x M.2 for Intel
- CNVi Wi-Fi module
- Storage 2 x M.2 slots, support Intel
- Optane Technology
- 6 x SATA 6Gb/s
- USB Ports 2 x USB 3.1 (Gen2, A+C) + 6 x USB 3.1 (Gen1) + 6 x USB2.0
- LAN Intel: I219-V Gigabit LAN
- Audio 7.1 Channel High Definition Audio with Audio Boost
- Form Factor ATX
What's in the box
MSI Z390 GAMING PLUS Motherboard
Case badge
Stickers
DVD
Manual
2 SATA6GB/s cables
2 NVME screws
