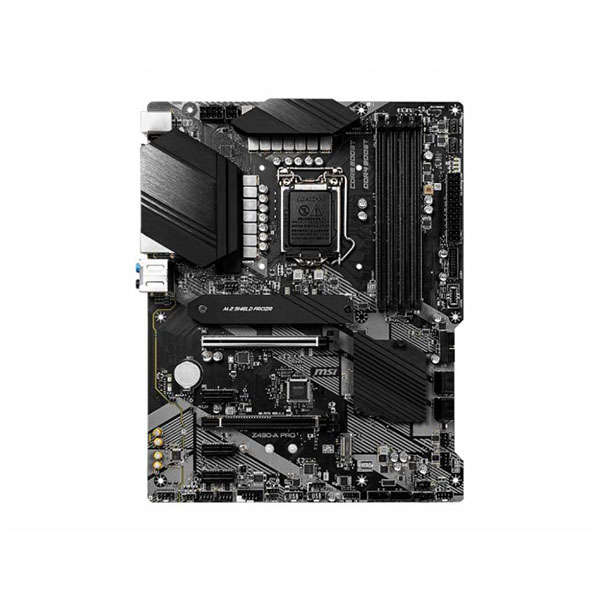

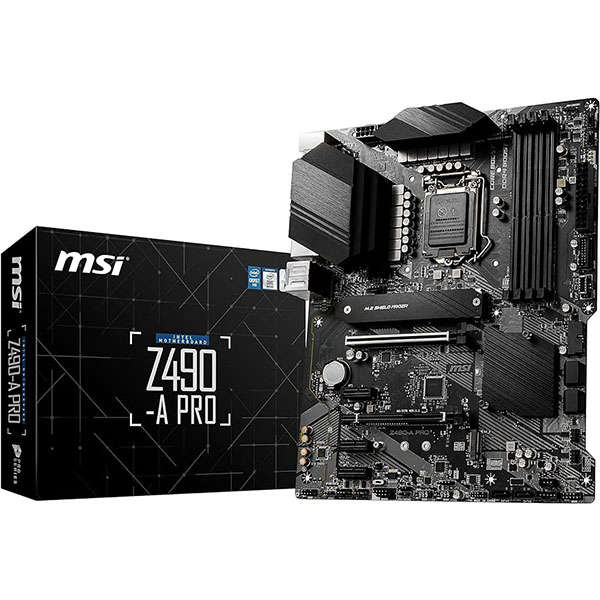

MSI Z490-A PRO Intel Z490 LGA1200 ATX Desktop Motherboard

Supports 1R 2133/2666/2933 MHz

1DPC 1R Max Speed Up to 4800 MHz

1DPC 2R Max Speed Up to 4266 MHz

2DPC 1R Max Speed Up to 4400 MHz

2DPC 2R Max Speed Up to 4000 MHz

Supports Dual-Channel Mode

Supports Non-ECC, Un-Buffered Memory

Supports Intel Extreme Memory Profile (XMP)

1x DisplayPort Port Supports a Maximum Resolution of 4096 x 2304 @ 60Hz

7.1-Channel High Definition Audio

1x PCIe 3.0 x16 Slot (from PCH, Supports x4 Mode)

3x PCIe x1 Slots (From PCH)

6x SATA 6Gb/s Ports *2

2x M.2 Slots (Key M)

M2_1 Supports Up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 Storage Devices *2

M2_2 Supports Up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280 Storage Devices *3

Intel Optane Memory Ready *4

Supports Intel Smart Response Technology for Intel Core Processors

2x USB 3.2 Gen 2 10Gbps Ports (1x Type-A Port and 1x Type-C Port on the Back Panel)

7x USB 3.2 Gen 1 5Gbps Ports (2x Type-A Ports on the Back Panel, 4x Ports Through the Internal USB Connectors, 1x Type-C Internal Connector)

6x USB 2.0 Ports (2x Type-A Ports on the Back Panel, 4x Ports Through the Internal USB 2.0 Connectors)

1x 8-pin ATX 12V Power Connector

1x 4-pin ATX 12V Power Connector

6x SATA 6Gb/s Connectors

1x USB 3.2 Gen 1 5Gbps Type-C Port

2x USB 3.2 Gen 1 5Gbps Connectors (Support Additional 4 USB 3.2 Gen 1 5Gbps Ports)

2x USB 2.0 Connectors (Support Additional 4 USB 2.0 Ports)

1x 4-pin CPU Fan Connector

1x 4-pin Water Pump Connector

6x 4-pin System Fan Connectors

1x Front Panel Audio Connector

2x System Panel Connectors

1x Chassis Intrusion Connector

1x Clear CMOS Jumper

1x 4-pin RGB LED Connector

2x 3-pin RAINBOW LED Connectors

1x Serial Port Connector

1x TPM Module Connector

1x TBT Connector *5

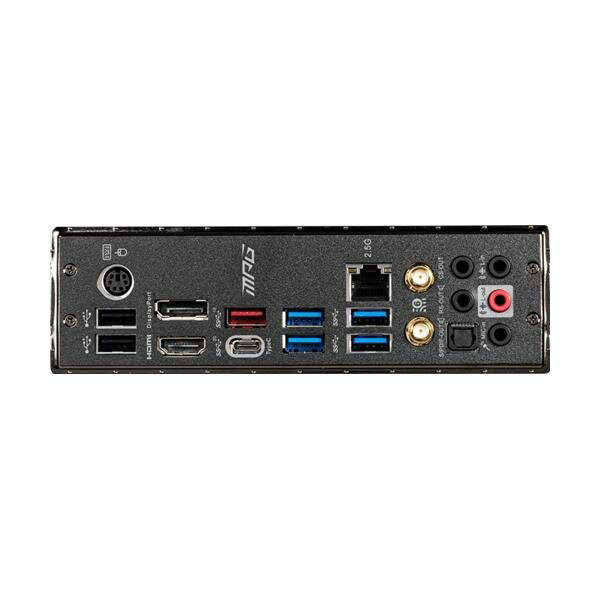

2.5G LAN

5x Audio Connectors

2x USB 2.0 Type-A

1x HDMI

1x DisplayPort

1x USB 3.2 Gen 2 10Gbps Type-A

1x USB 3.2 Gen 2 10Gbps Type-C

2x USB 3.2 Gen 1 5Gbps Type-A

12 in. x 9.6 in. (30.5 cm x 24.4 cm)
