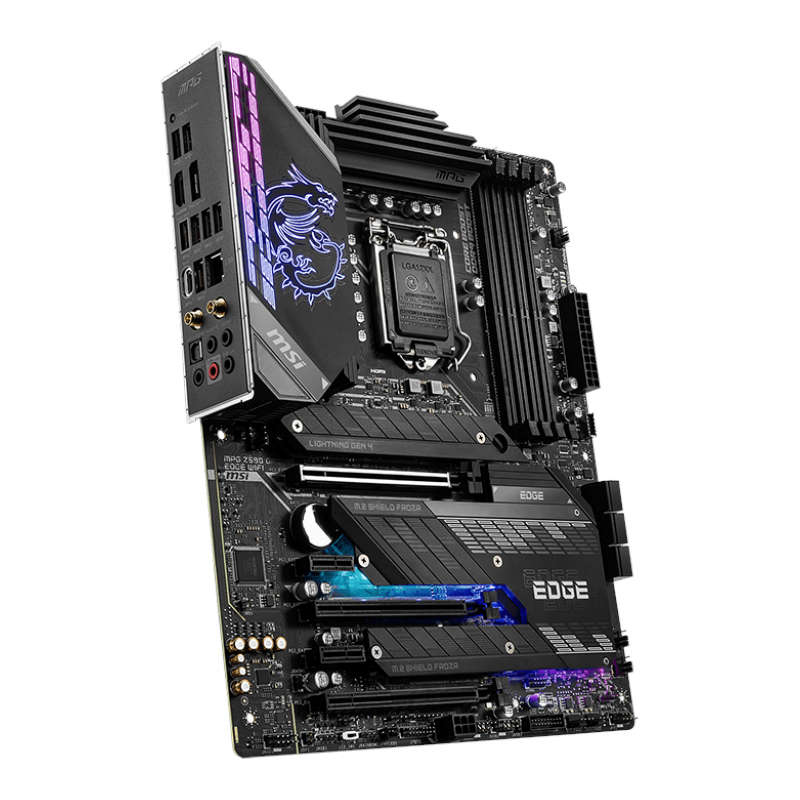

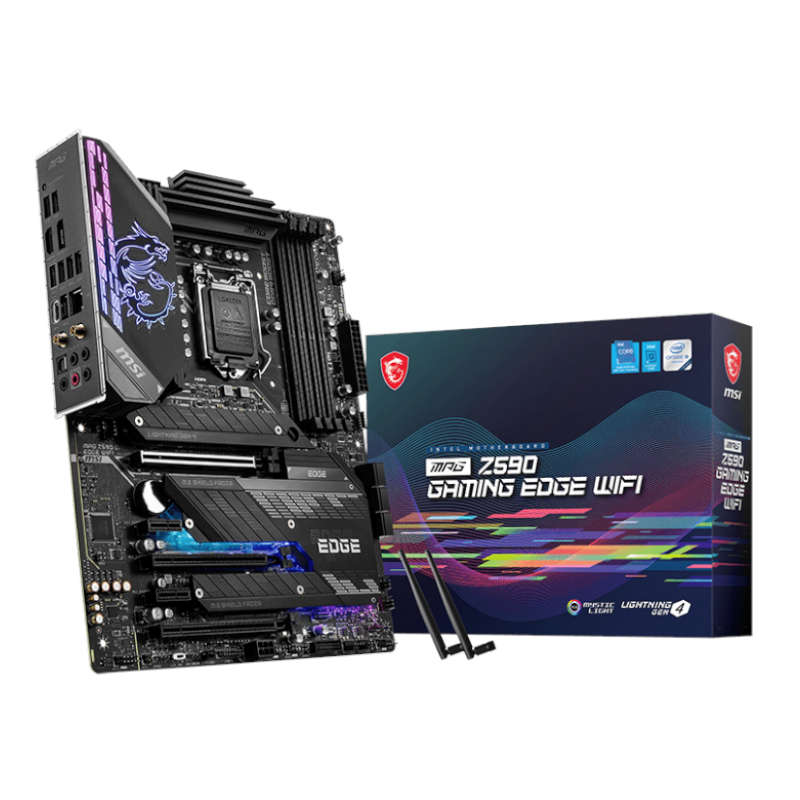

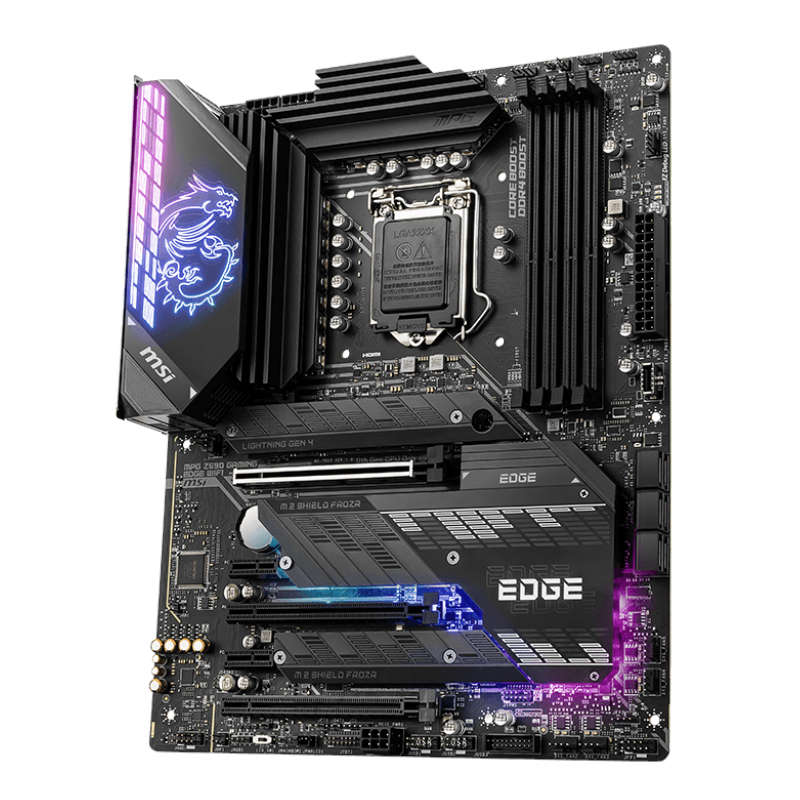

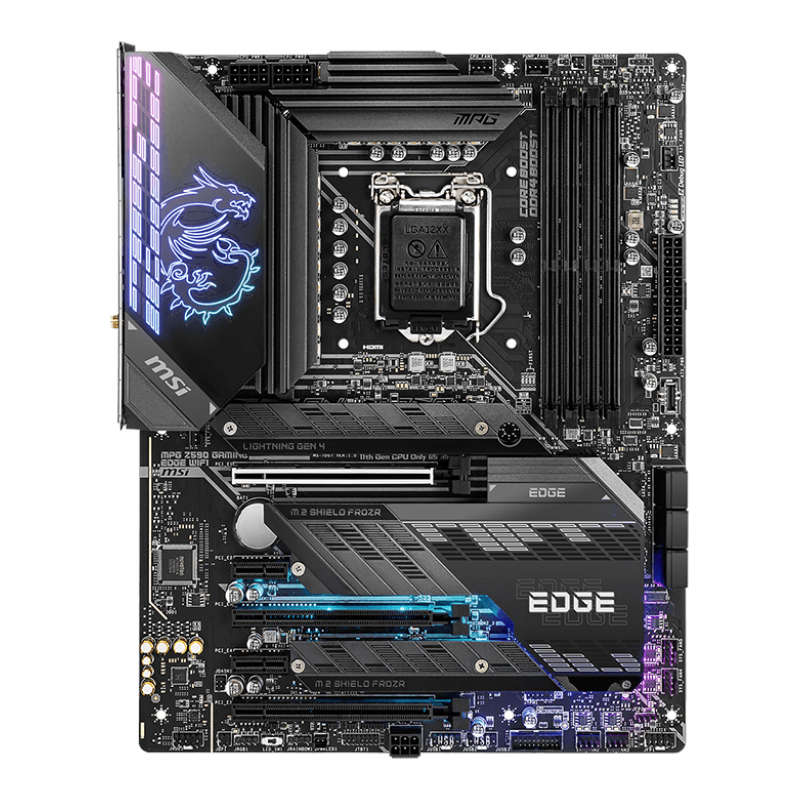

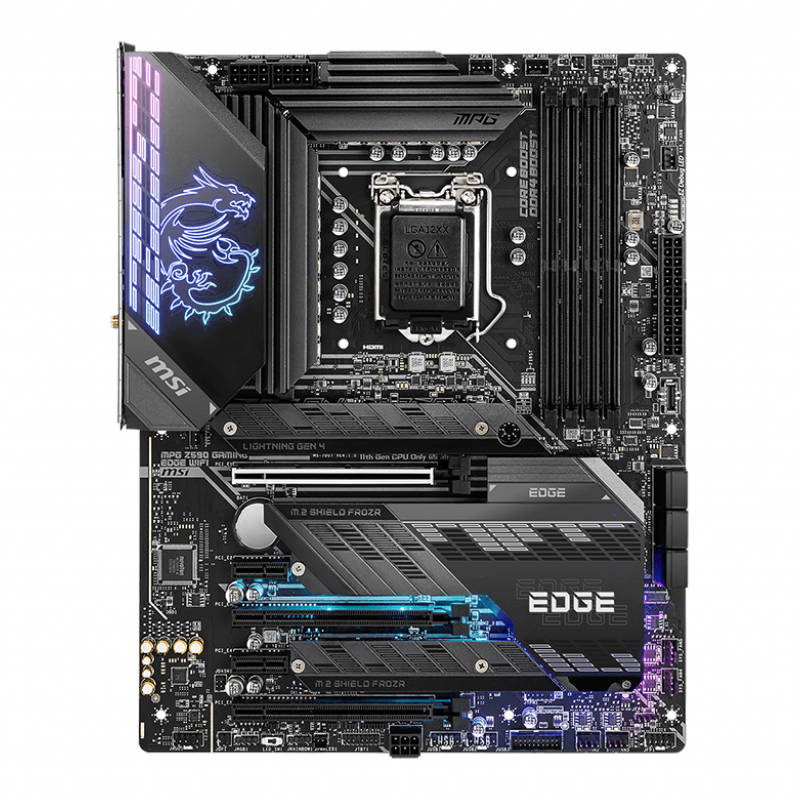

MSI Z590 GAMING EDGE WIFI Intel LGA1200 ATX Gaming Motherboard

Designed for the latest Intel processors and support for DDR4 with Lightning Gen4, you know you're getting the best performance. It also supports 2.5Gbps LAN, which provides incredible data transfer speeds that are faster than general Gigabit LAN. This is a premium solution for demanding users.

With years of experience, MSI is no stranger to building high-performance motherboards. Our R&D and engineering teams have reviewed countless designs, evaluated a wide selection of high-quality components, and developed products for reliability even under extreme conditions. High-performance MSI motherboards are loaded with advanced features and the latest technology to overwhelm any challenge at hand, no matter whether you're a gamer, prosumer, or PC enthusiast.

The supported XMP memory profile has a great improvement in performance and efficiency for Z590 motherboards. Easy to enable XMP profiles with auto power settings to get the best memory speed and stability. MSI motherboards are built with a variety of connectors to satisfy gamers. Enhanced audio, advanced LAN networking capabilities, USB and Mystic Light turn any gaming experience into an immersive one.

FEATURES:

• Supports 11th and 10th Gen Intel^® Core / Pentium^® Celeron^® processors for LGA 1200 socket
• Supports DDR4 Memory, up to 5333(OC) MHz
• Lightning Fast Game experience: PCIe 4.0, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2x2
• Enhanced Power Design: 14+1+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, DDR4 Boost
• Premium Thermal Solution: Enlarged heatsink with heat-pipe, MOSFET thermal pads rated for 7W/mk, additional choke thermal pads and 3x M.2 Shield Frozr are built for high-performance system and non-stop gaming experience
• MYSTIC LIGHT: 16.8 million colours / 29 effects controlled in one click. MYSTIC LIGHT EXTENSION supports both RGB and RAINBOW LED strip.
• 2.5G LAN with LAN Manager and Intel Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
• AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience
• High-Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade-level material
• Pre-installed I/O Shield: Better EMI protection and more convenience for installation

SPECIFICATIONS:

• CPU (Max Support): i9
• Socket: 1200
• Chipset: Intel® Z590 Chipset
• DDR4 Memory: 5333(OC) / 5200(OC) / 5000(OC)/ 4800(OC)/ 4600(OC)/ 4533(OC)/ 4400(OC)/ 4300(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) MHz
• Memory Channel: Dual
• Dimm Slots: 4
• Max Memory (GB): 128
• PCI-E x16: 3
• PCI-E x1: 2
• SATAIII: 6
• M.2 Slot: 3
• RAID: 0/1/5/10
• LAN: 1x Intel® I225-V 2.5G LAN
• WiFi & Bluetooth: Intel® Wi-Fi 6E AX210
• USB 3.2 Ports (Front): 1(Gen 2, Type C), 2(Gen 1, Type A)

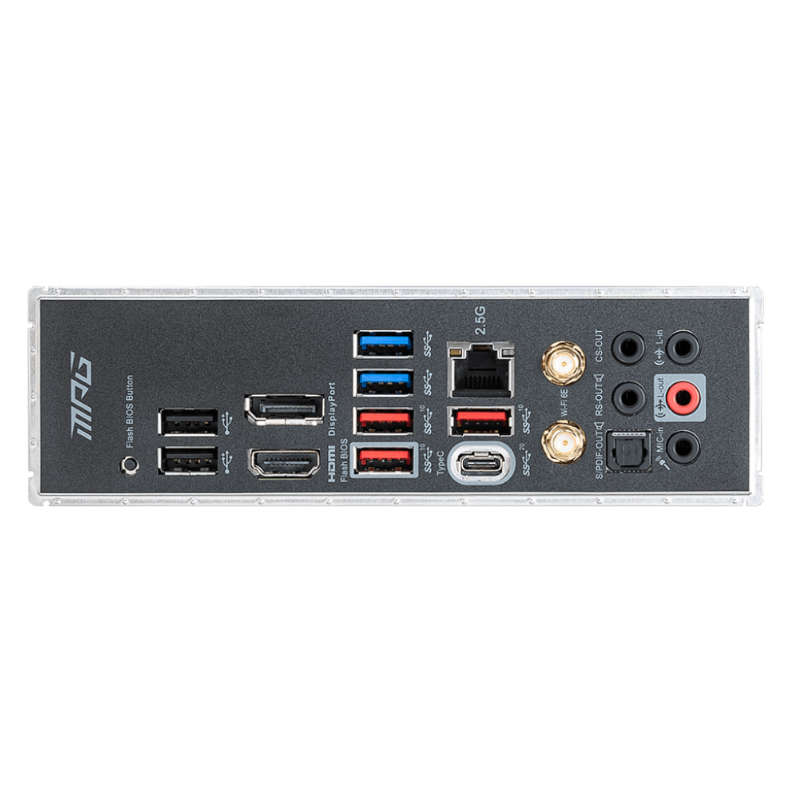

• USB 3.2 Ports (Rear): 1(Gen 2x2, Type C), 3(Gen 2, Type A), 2(Gen 1, Type A)
• USB 2.0 Ports (Front): 4
• USB 2.0 Ports (Rear): 2
• AUDIO Ports (Rear): 5+ Optical S/PDIF (Realtek® ALC4080 Codec)
• DisplayPort: 1
• HDMI: 1
• DirectX:12
• Form Factor: ATX
• Crossfire: Yes
• Operating System: Support for Windows® 10 64-bit

WHAT'S IN THE BOX:

• MSI MPG Z590 Gaming Edge WiFi ATX Motherboard x1
• Wi-Fi Antenna x1
• M.2 Screws/Standoff Sets x3
• Screwdrivers x2
• USB Drive x1
• Cleaning Brush x1
• SATA Cables x2
• 1 to 2 RGB LED Extension Y Cable x1
• Rainbow RGB LED Extension Cable x1
• Cable Stickers Pack x1
• MPG Stickers Pack x1
• Quick Install Guide x1
• User Manual x1
