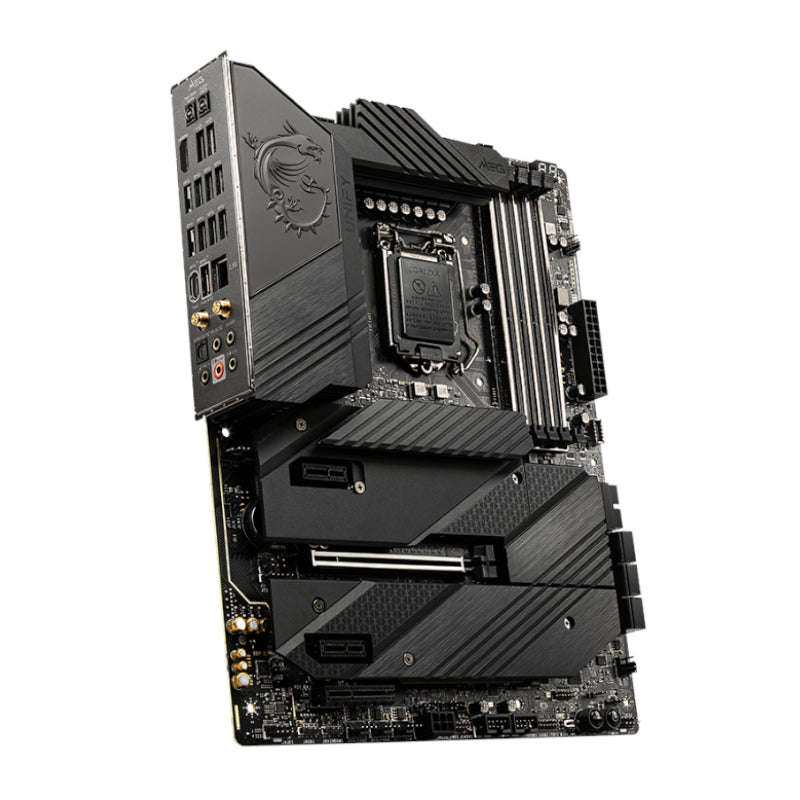

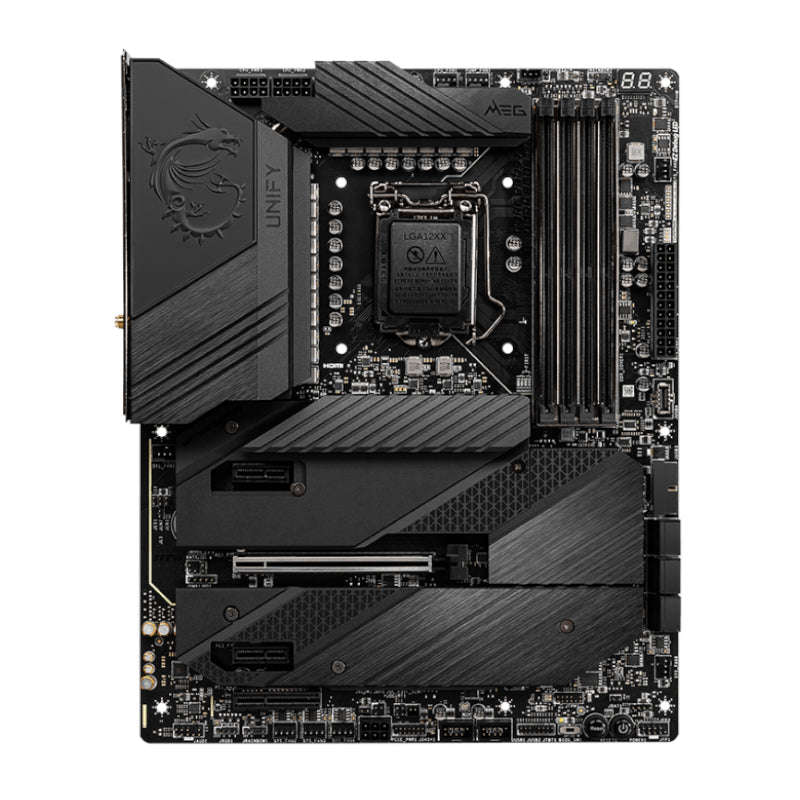

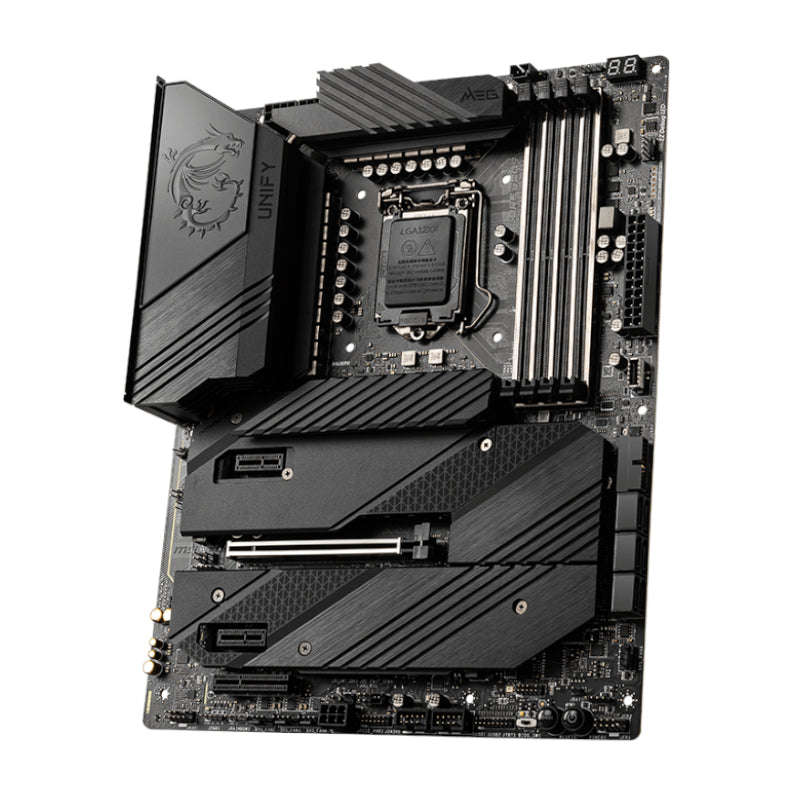

MSI Z590 UNIFY Intel LGA1200 ATX Gaming Motherboard

With years of experience, MSI is no stranger to building high-performance motherboards. Our R&D and engineering teams have reviewed countless designs, evaluated a wide selection of high-quality components, and developed products for reliability even under extreme conditions. High-performance MSI motherboards are loaded with advanced features and the latest technology to overwhelm any challenge at hand no matter whether youre a gamer, prosumer, or PC enthusiast. Utilizing 11th Gen Intel processors, MSI Z590 motherboards feature the latest Lightning Gen 4 M.2 which is the fastest onboard storage solution on the market with up to 64 Gb/s transfer speed. MSI motherboards are built with a variety of connectors to satisfy gamers. Enhanced audio, advanced LAN networking capabilities, USB and Mystic Light turn any gaming experience into an immersive one. 2.5Gbps LAN provides incredible data transfer speed faster than general Gigabit LAN. This is a premium solution for demanding users.

FEATURES:

• Supports 11th and 10th Gen Intel^® Core / Pentium^® Celeron^® processors for LGA 1200 socket
• Supports DDR4 Memory, up to 5600(OC) MHz
• Quadruple M.2 Connectors: Onboard 4x M.2 connectors for the maximum storage performance with three Lightning Gen 4 solutions. Shield Frozr design keeps M.2 SSDs safe while preventing throttling, making them run faster.
• Extreme Power Design: INTERSIL digital PWM, 16+2+1 phases with 90A Smart Power Stage, dual CPU power connectors and exclusive Mirrored Power Arrangement to unleash the true power of your processors.
• Outstanding Cooling Solution: Aluminum Cover, VRM Heat-pipe, 7W/mK thermal pads, M.2 Shield Frozr and MOSFET Baseplate ensure the extreme performance with low temp.
• 2.5G LAN with latest Wi-Fi 6E: Onboard 2.5G LAN with LAN manager and latest Wi-Fi 6E solution which supports 6GHz spectrum delivering the best online gaming experience.
• Lightning USB 20G: Built-in USB 3.2 Gen 2x2 port, offers 20Gbps transmission speed, 4X faster than USB 3.2 Gen 1.
• Smart Button: One button with multiple hardware control. Reset Computer, Safe Boot, Turbo Fan and EZ LED control functions with just one click.
• 8 Layer PCB with 2oz Thickened Copper: Provides higher performance and long-lasting system stability without any compromise.
• Audio Boost 5: Isolated audio with a high quality ALC4080 audio processor & amp for the most immersive gaming experience.

SPECIFICATIONS:

• CPU (Max Support): i9
• Socket: 1200
• Chipset: Intel® Z590 Chipset
• DDR4 Memory: 5600(OC)/ 5333(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4533(OC)/ 4400(OC)/ 4300(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC) / 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) MHz
• Memory Channel: Dual
• DIMM Slots: 4
• Max Memory (GB): 128
• PCI-E x16: 1
• PCI-E x4: 1
• PCI-E x1: 2
• SATAIII: 6
• M.2 Slot: 4
• RAID: 0/1/5/10
• LAN: 1x Intel® I225-V 2.5G LAN
• Wi-Fi & Bluetooth: Intel® Wi-Fi 6E AX210
• USB 3.2 Ports (Front): 1(Gen2, Type C), 2(Gen1, Type A)
• USB 3.2 Ports (Rear): 1(Gen2x2, Type C), 1(Gen2, Type A), 8(Gen1, Type A)
• USB 2.0 Ports (Front): 4
• USB 2.0 Ports (Rear): 2
• Audio Ports (Rear): 5+ Optical S/PDIF (Realtek® ALC4080 Codec)
• HDMI: 1
• DirectX: 12
• Form Factor: ATX
• Operating System: Support for Windows® 10 64-bit

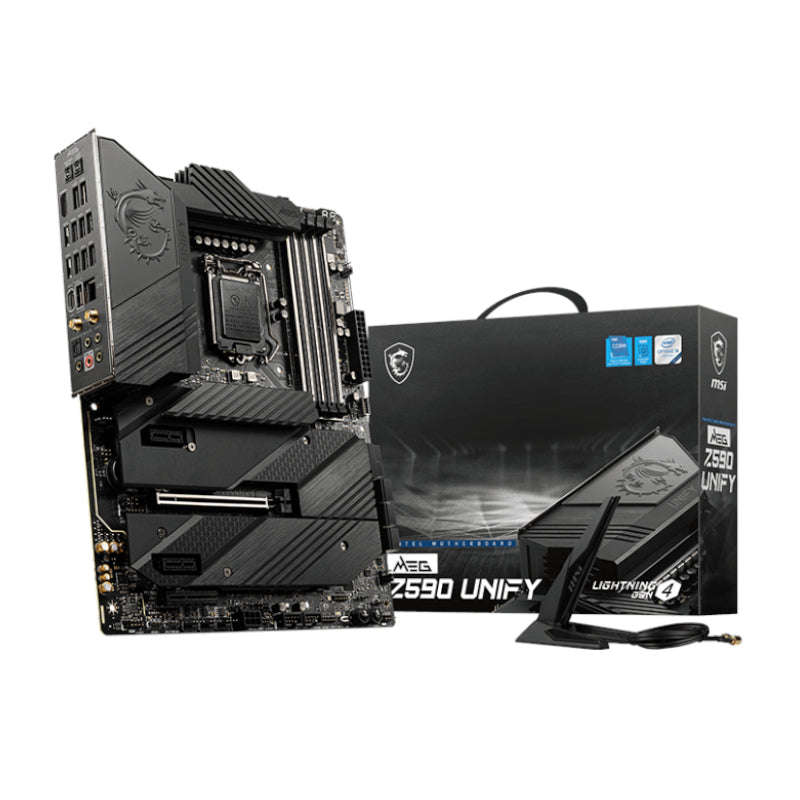

WHATS IN THE BOX:

• MSI MEG Z590 UNIFY Intel ATX Motherboard x1
• Wi-Fi Antenna x1
• Cleaning Brush x1
• Screwdrivers x2
• MEG Stickers x1
• Cable Stickers x1
• USB Drive x1
• 1 to 2 RGB LED Extension Y Cable x1
• CorsairRGB LED Extension Cable x1
• Rainbow RGB LED Extension Cable x1
• SATA Cables x4
• M.2 Standoff Sets/screws x4
• User Manual x1
• Quick Installation Guide x1

Get the highest quality components with an extreme power design with the MSI MEG Z590 UNIFY Intel ATX Motherboard. It features an LGA 1200 socket with support for 11th Gen Intel processors, DDR4 memory support of up to 5600 MHz (OC), Quad M.2 connectors, 11 x USB ports, 2.5G LAN, and Wi-Fi 6E.
