Description: MT8060 PH pen acidimeter use the high-performance CPU chip, high-precision AD converter technology and SMT technology is a versatile, intelligent instrument. Storage, computing and Compensation Determination of PH value parameters. Clear display, simple operation and accurate test performance so that it has a good price. It can be widely used in the chemical industry, metallurgy, environmental protection, pharmaceutical, biochemical, food and tap water solution PH value monitoring. Field PH value test.
Acidimeter technical indicators: Measuring range: 0.0-14.0pH
Accuracy: 0.1pH
Resolution: 0.1pH
Automatic temperature compensation:0C-50C
Operating Temperature: 0C-50C
Correction:3 point automatic calibration (4.01; 6.86;9.18)
Automatic shutdown: 10 minute auto shut off
Low voltage indication
Has Automatic conversion of C / F
Has Hold Function
Has Low voltage indication
Has Display

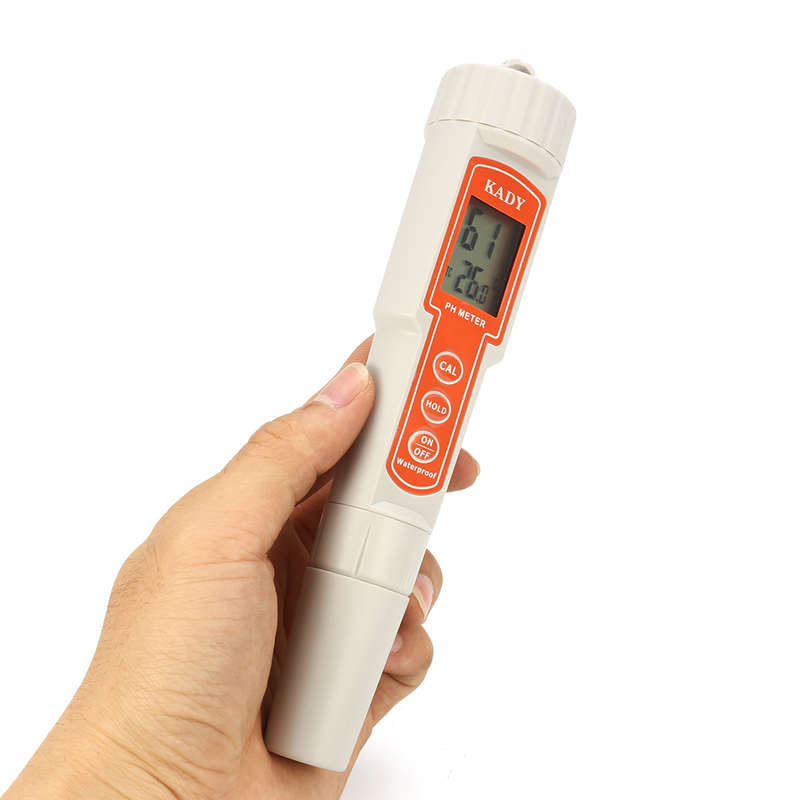

Dual display of pH and temperature

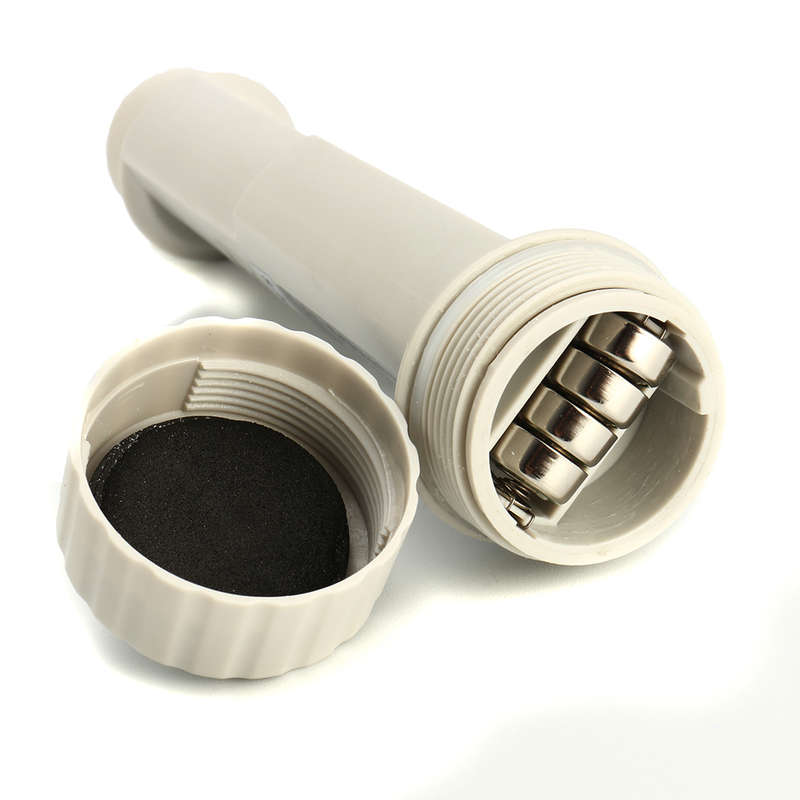

Battery:6V(4 * AG13 button batteries,not included)
CBM:190mm38mm
Weight:80g
Acidimeter Features: The instrument housing design of acidimeter, LCD display. Small size, portable, measuring at any time more convenient to use. Low power consumption, high accuracy, wide measurement range, the electrode can be replaced.

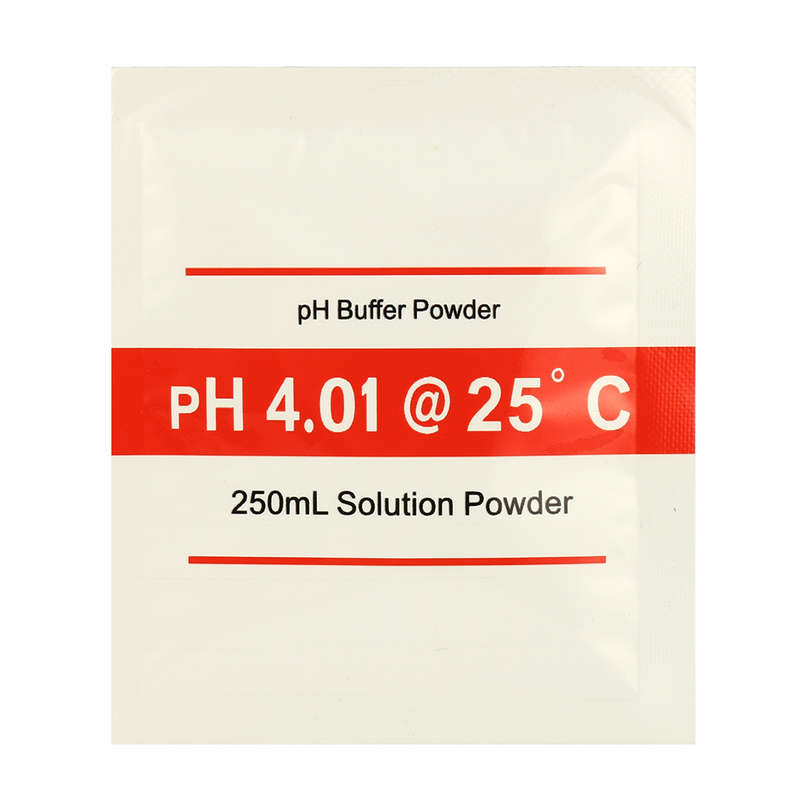

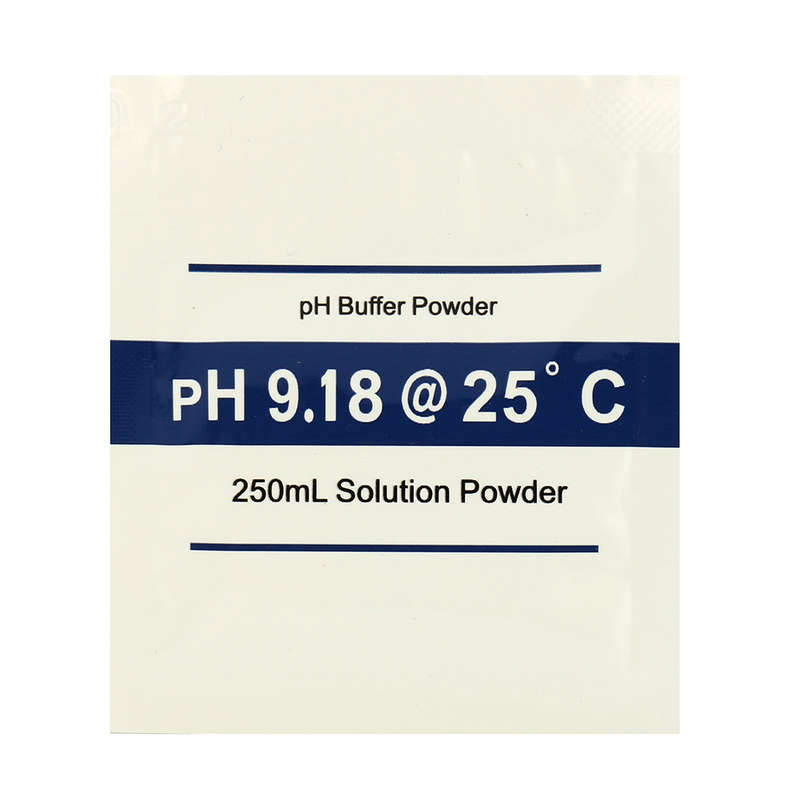

Feature: 1. Prepare 4.01, 6.86 and 9.18 pH buffers, Use 6.86 pH buffer for the mid-range buffer first. The pH values for the buffers
are given for 25 C. If the sample temperature is not 25 C, the pH values displayed for the buffers will reflect the correct pH
value for the sample temperature. If the electrode is dry, submerge it in distilled water for 10 minutes before calibration.
Ensure that the calibrating buffers are fresh.
2. Press ON/OFF to turn the meter on, submerge the probe in the buffer while stir gently. Then keep it still until a stable
reading is reached. Press CAL for 3 seconds until the Text CAL appears. Then release CAL, the meter will identify the
current buffer value automatically, and display 6.86 in the LCD. The result will be saved while the text SA displayed after 2
seconds. The meter will back to measuring mode after 1 second while text End showed.
3. If text End is showed after press CAL, it means the calibration buffer is not fresh or the probe is aging.
4. Do not take out the probe from the buffer until text End is showed in the LCD.
5.Same steps as calibrating pH 4.01 and 9.18.
Package included: 1x PH meter(not included battery)
Tips: Please read the manual carefully before using the meter.

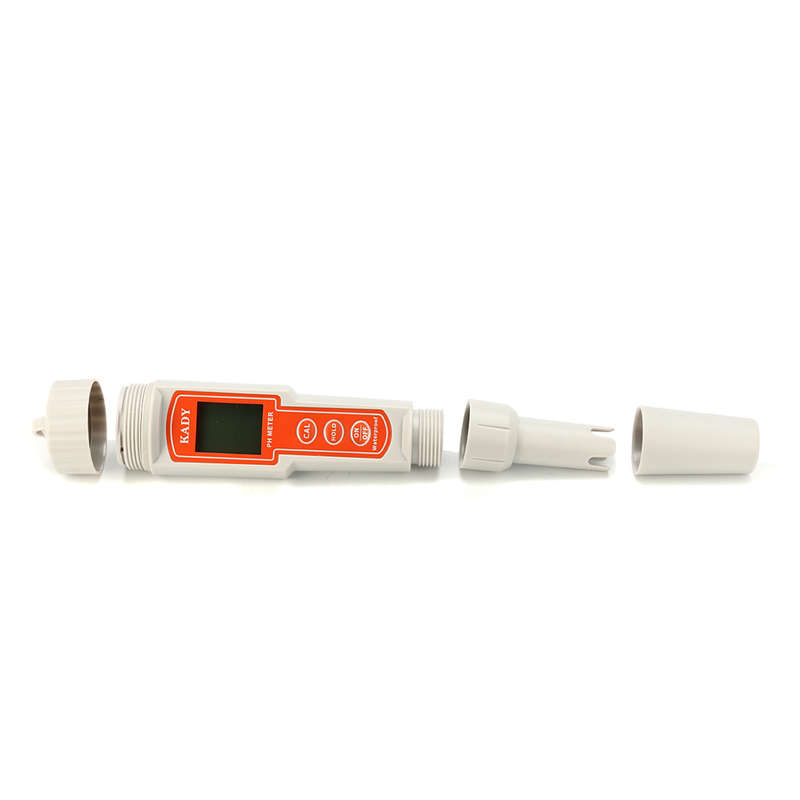

1.The glass electrode at the bottom of the pen is fragile, please use it carefully after taking off the protection cap. Any
damage may cause the invalid of the electrode.
2. The duration period of the glass electrode is one year from the date of purchase whether you use it or not, please
change the electrode in time.
3.The electrode can not be used under the dry condition, always soak the electrode into the distilled water or purified water for 5 30 minutes to activate before use.
Product Name: pH meter
Query Keywords: pen waterproof pH meter PH meter digital PH meter pocket portable PH meter PH Table PH value measurement and control instrument
