MT50 Remote Display for Tracer-AN Tracer-BN TRIRON XTRA Series MPPT Solar Controller and VS-BN PWM E

Overview:
MT50 is an optional remote meter to monitor and program EPsolar controller, compatible with:Tracer-AN Series Tracer-BN Series TRIRON Series XTRA Series ViewStar-BN Series
Features:
- Automatic identify the controller, and display relevant parameter data - Large-screen informative LCD displays all the operating data and system working status - Simple and convenient operation - Real-time alarm of failure information -Longer communication distance based on RS485 - Diversified load control modes : Manual Control, Light ON/OFF, Light ON+ Timer, Time Control - Battery type selection: Gel, sealed, flooded and User(programable) - Programmable parameters - Energy statistics display function
Specifications:
Self-consumption:Backlight and acoustic alarm on<65mA, Backlight on<23mA,Backlight off <15mA Faceplate dimensions:98x98 mm / 3.863.86 in Frame dimensions:114114 mm / 4.494.49 in Connector type:RJ45 Meter cable:Standard 2m, max .50m Meter weight:0.190 Kg Ambient Temperature:-20 -+70C/-4 F-158F
Package Included:

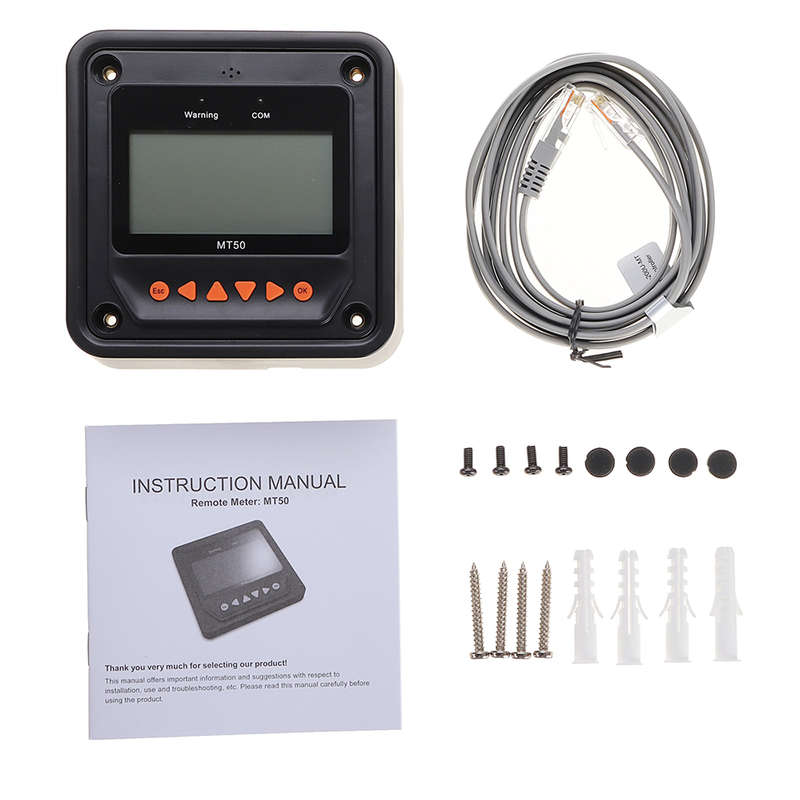

1 x MT50 EPsolar Controller 1 x Cable 1 x User Manual 1 x Install Kit
