MTOLASER 13.5mm-23.5mm Laser Module Pointer Holder Adjustable Height H... (SPECIFICATION SIZE: 16MM)

SELECTED OPTION:
SPECIFICATION SIZE: 16MM

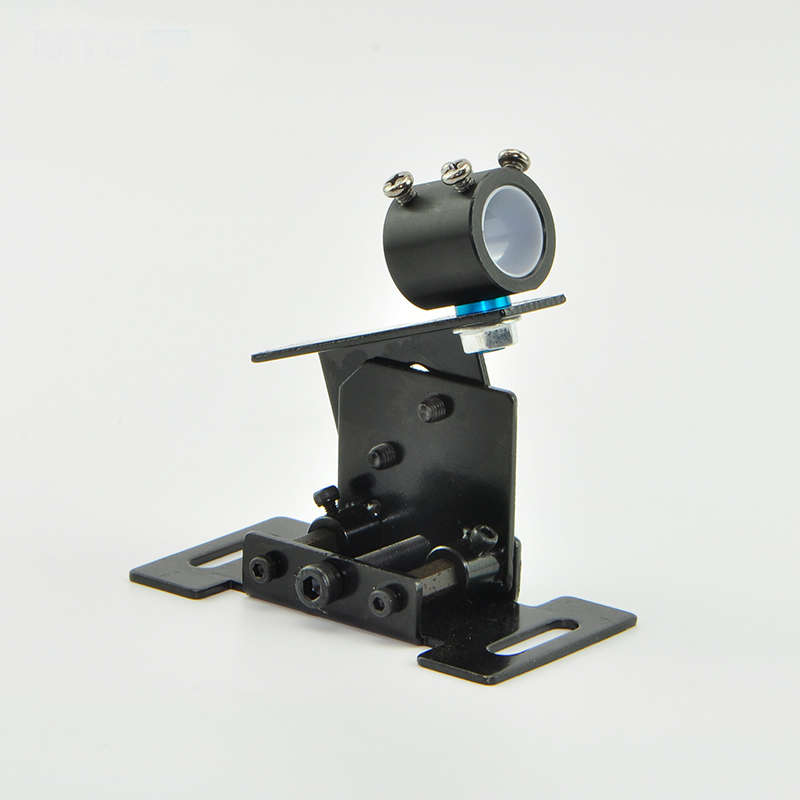

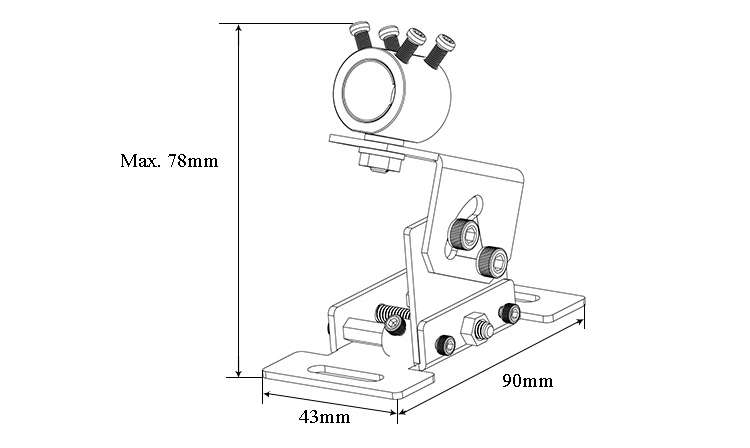

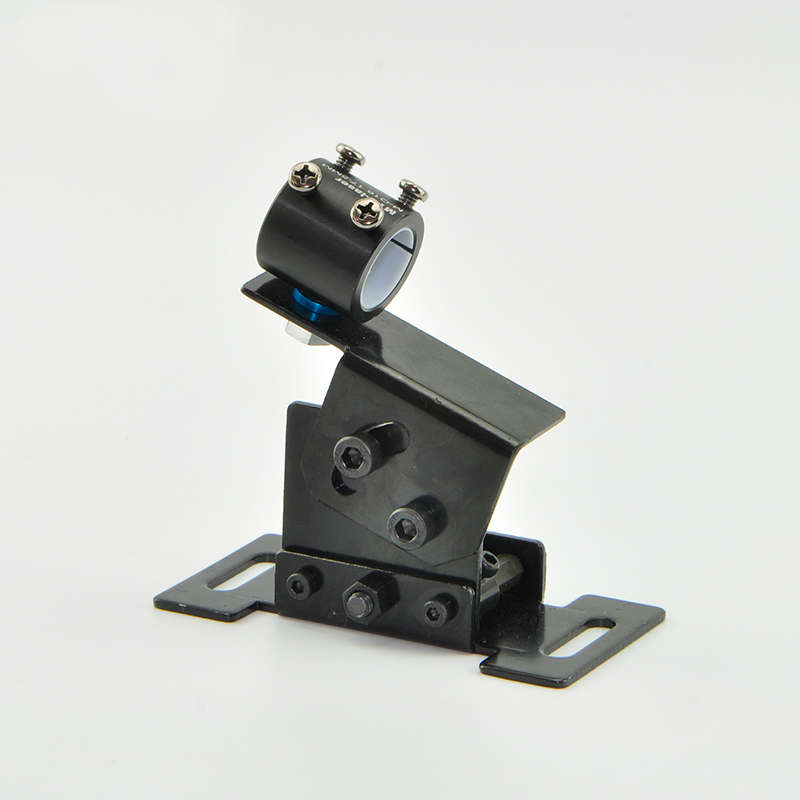

Description: Laser module professional horizontal bracket for supporting laser device. Specifications: Material: Iron Mobile Mechanism: Manual screw type Direction Of Movement: Adjustable (small angle) Load Resistance: 4KG Size(L*W*H): 90*43*78mm

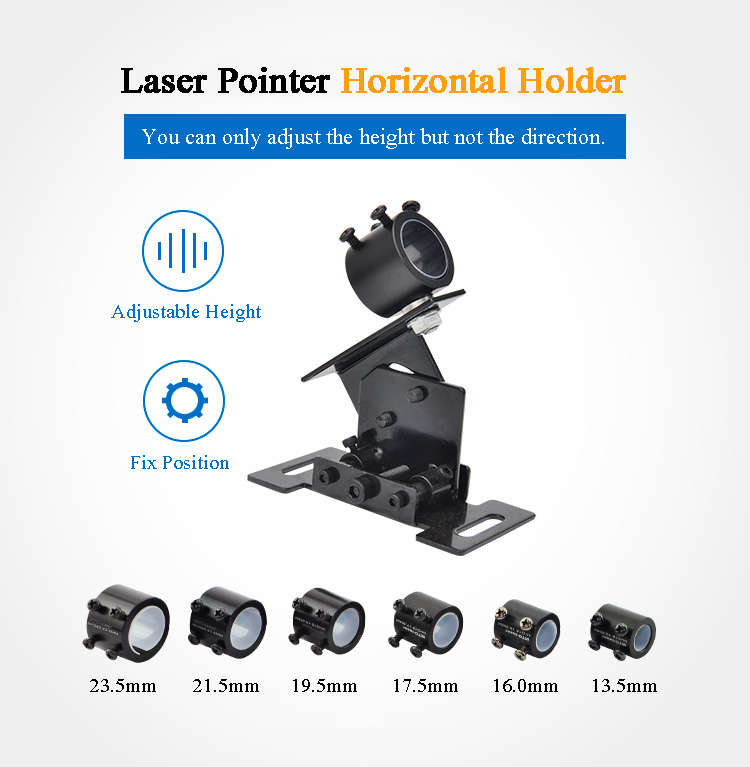

Fits for 13.5mm, 16.0mm, 17.5mm, 19.5mm, 21.5mm, 23.5mm diameter of laser module

Inner Dia.(Original)	Inner Dia.(After casing)	External Dia.
13.5mm	12.5mm	19.5mm
16mm	15.5mm	21.5mm
17.5mm	16.5mm	23.5mm
19.5mm	18.5mm	25.5mm
21.5mm	20.5mm	27.5mm
23.5mm	22.5mm	29.5mm

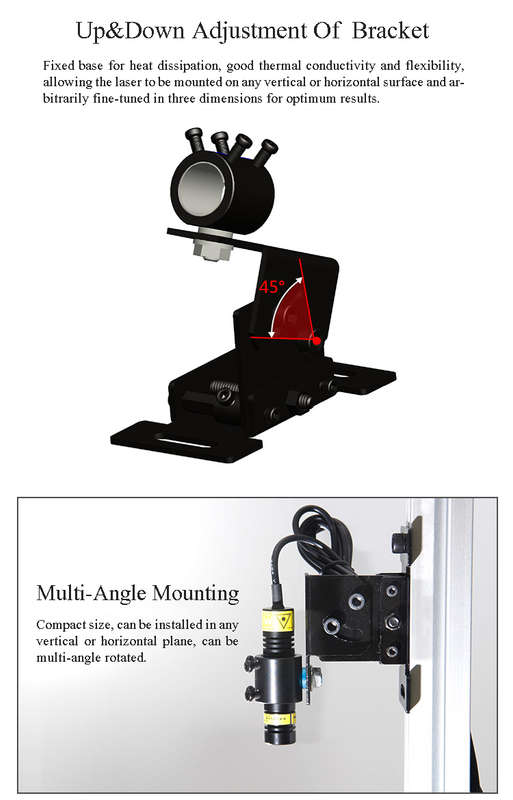

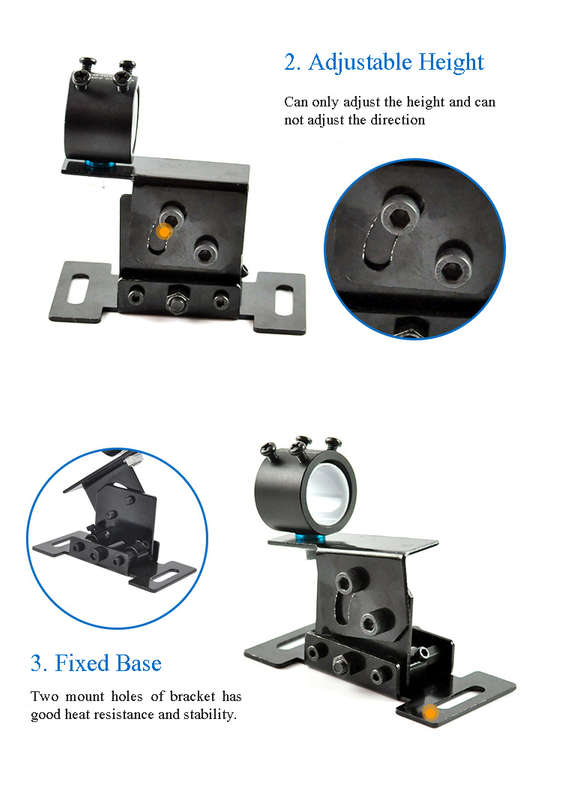

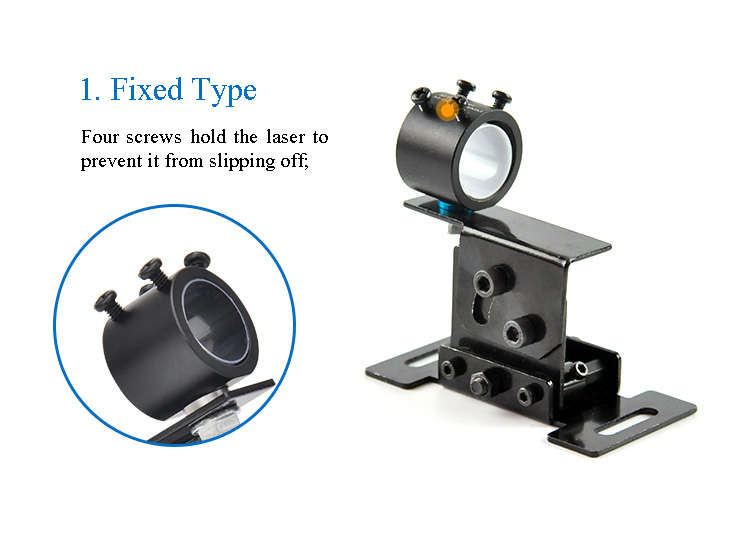

Feature: - Up&Down Adjustment Of The Bracket Horizontally:Fixed base for heat dissipation, good thermal conductivity and flexibility, allowing the laser to be mounted on any vertical or horizontal surface and arbitrarily fine-tuned in three dimensions for optimum results; - Multi-angle Installation:Small size, can be installed in any vertical or horizontal plane; - Fixed Type:Four screws hold the laser to prevent the laser from slipping off; - Adjustable Height:This bracket can only adjust the height and can not adjust the direction; - Fixed Base:The I-beam laser mount has good heat resistance and stability. Package Include: 1 Pcs x Laser Module Professional Bracket
