MTOLASER 80mW 405nm Blue-violet Cross Laser Module Generator Variable Focus Industrial Marking Posit

Description:
This variable focus 80mW405nm Blue-violet cross laser module employs qualified 405nm blue-violetlaser diode, generates the stable and reliable blue-violetlasercross applicable for various industrial alignments and positioning work.Compact size, easy to install, multi-angle adjustment of installation, easy tooperate.

Specification:

Brand	MTOLASER
Laser Power	80mW
Wavelength	405nm
Beam Shape	Cross

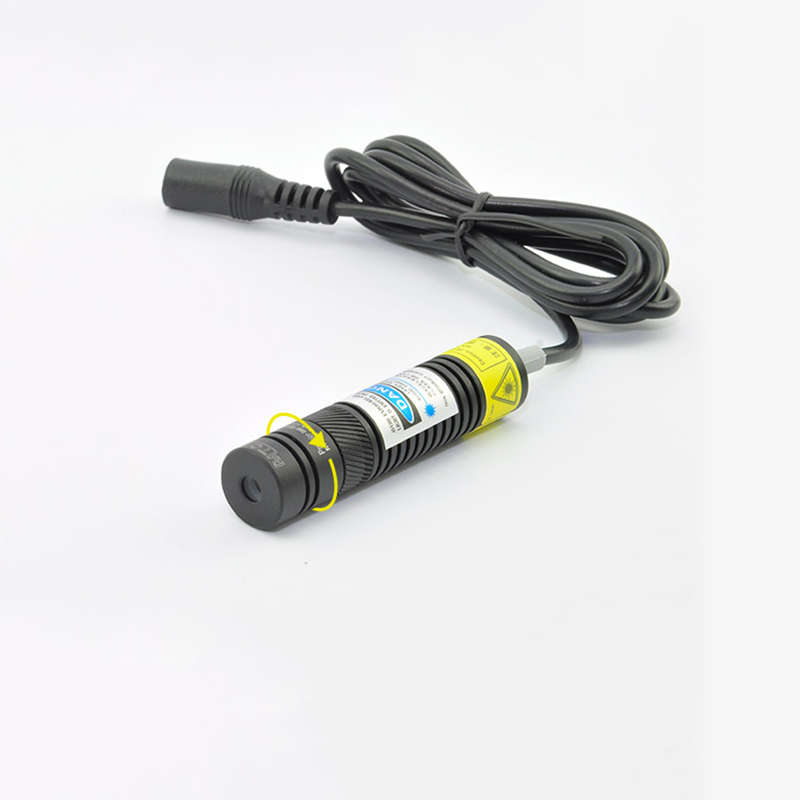

Variable Focus	YES
Output Light	Visible Light
Working Voltage	DC 5V
Working Current	90mA
Optics	Focus Lens+ Glass Wave Cross Lens
Shell Material	Aviation Aluminum
Operation Temperature	±50a
Service Life	8000h

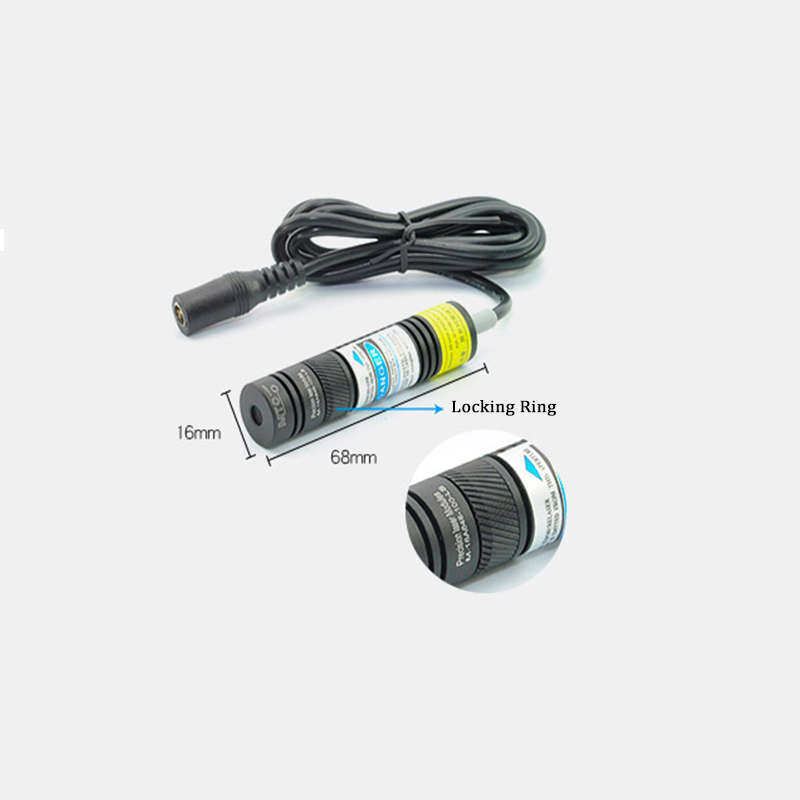

Dimension (D*L)	16mm x68mm(With Locking Ring)
Optimum WorkingDistance	The brightness of 405nm blue-violet lights is weak and not suitable for long-distance use.
Adapter Plug	US Plug
Adapter Input Voltage	AC 100-240V 0.3A 50-60Hz

Features:
1.80mW stable output power, variable focus, 405nm blue-violet cross laser module.
2. Good heat dissipation ensures its long service life.

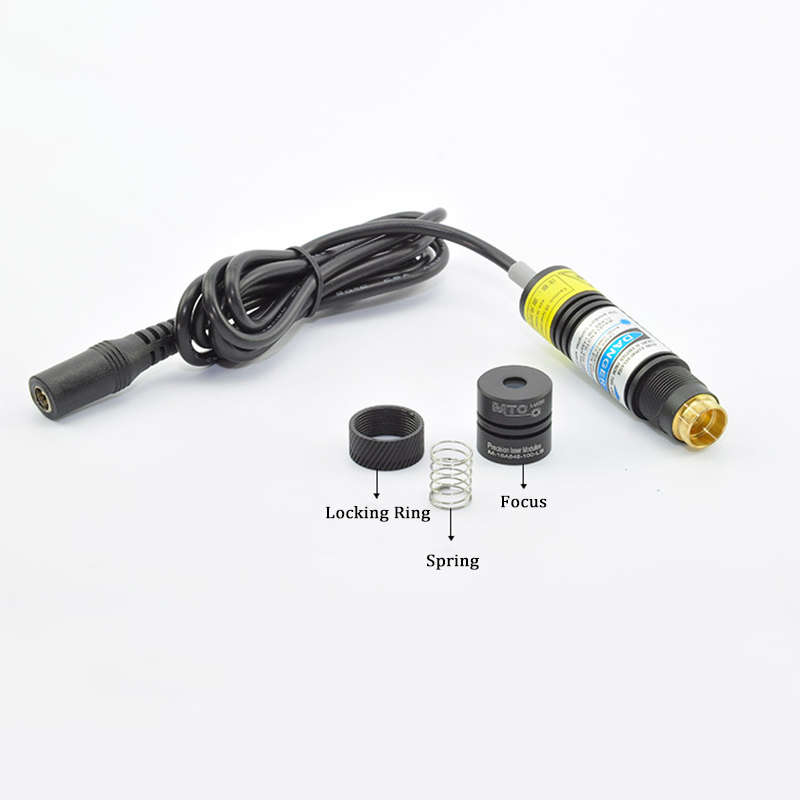

3. Designed with locking ring, ensure its anti-interference performance, high stability under vibration condition.
4. Come with mount holder, rotate the adjust the angle for easy placement and installation.

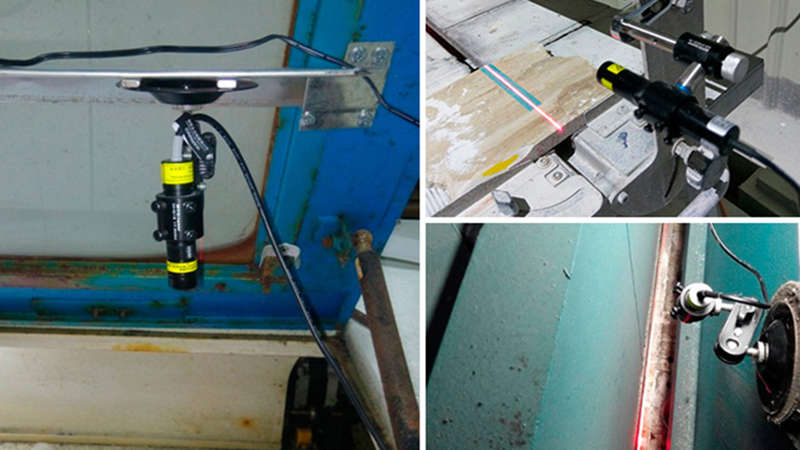

5. Widely used in laser alignment, positioning for sewing equipment, embroidery machine, and other industrial, medical and laboratory equipment.
6. The specification of international standard master interface DC is 5.5*2.1mm

Caution:
1. Light is emitted from the aperture. Avoid Direct Eye Exposure. Keep Away from Children and Pets;
2. Wear protective glasses for close use.

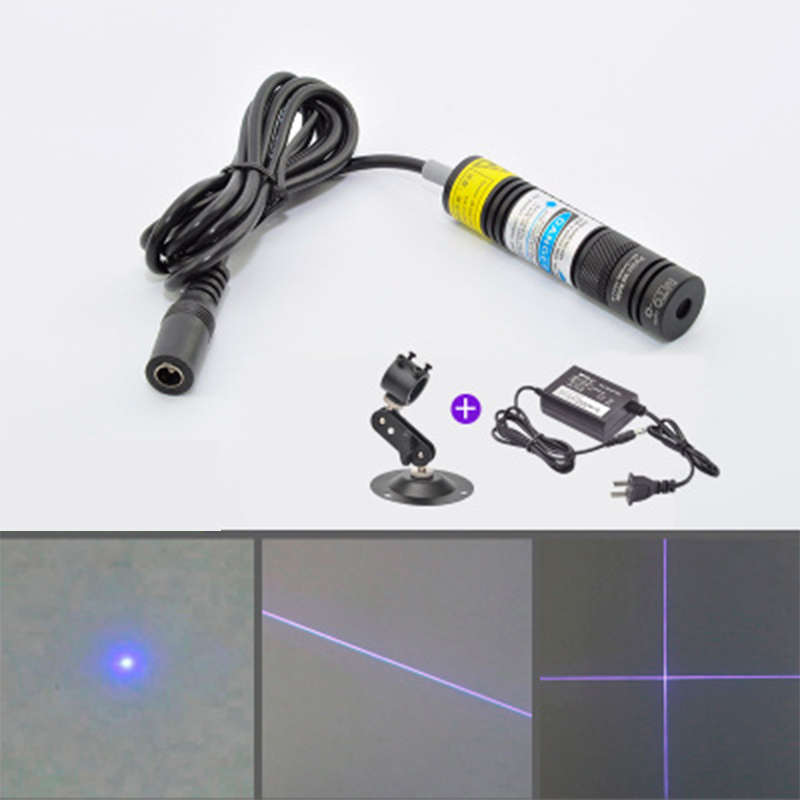

Package Included:
1 x Blue-Violet Cross Laser Module
1 x Power Adapter (AC 100-240V to DC 5.3V)
1 x Mount Holder

More Details:
