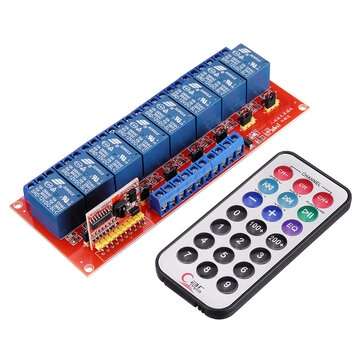

Multi-function Infrared Remote Control 8 Channel Relay ... (VERSION: SELF-LOCKSWITCH | VOLTAGE: 12V)

Multi-function Infrared Remote Control 8 Channel Relay ... (VERSION: SELF-LOCKSWITCH | VOLTAGE: 12V)

20 available / new
R466.00
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
szulou3503
93.44 % Positive ratings
Buyer protection
How you're covered
Returns
Replacement Guarantee: 7 Days: We stand by this guarantee
Get it now, pay later

Product details

Condition
New
Location
International
Bob Shop ID
643385324

SELECTED OPTION:
VERSION: SELF-LOCKSWITCH
VOLTAGE: 12V

.size_table_start table,.size_table_start table tr td { border:2px solid #ddd;}.size_table_start table { width: 100%; min-height: 25px; line-height: 25px; text-align: center; border-collapse: collapse;}.size_table_start,.size_table_end {clear:both;}
Features:

1. Dual trigger design, using a dedicated bidirectional driver IC design 2. Strong anti-interference ability, using diode continuous current protection; 3. The contact part of the relay adopts double-sided thick wiring, which can pass through a large current, safe and reliable; 4. Using high-quality relays, optional 5V, 12V, 24V; 5. Both input and output adopt 5.08mm high-quality wiring terminals, making wiring more convenient and suitable for PLC control; 6. The input terminal can be set arbitrarily high and low level trigger, the control method is more flexible; 7. Each relay has a pull-in indicator light, the working status of the relay is clear at a glance; 8. Each relay output leads to two groups of normally open and normally closed electric shock, which is convenient and flexible to use; 9. With fixing screw holes for easy installation.
Specifications:
Working voltage: 5V / 12V / 24V DC Dimensions: 133 x 55 x 19 mm Contact capacity: AC250V 10A DC30V 10A;
The product wiring is as follows:
1.VCC: input power supply terminal 2.GND: Input power terminal ground terminal 3. CTR1-CTR8 is the signal input trigger terminal, which is valid in any mode (just set by jumper) 4. Use of the remote control: only the numeric keys work, the 1-8 keys correspond to the corresponding 1-8 channels of the relay. When pressed once, the relay works, and when pressed again, the relay turns off. When the 0 button is pressed, all work is performed, and when the 9 button is pressed, all are disconnected.
Package Included:
1 x Multi-function Infrared Remote Control 8 Channel Relay Module 1 x Infrared Remote Controller
