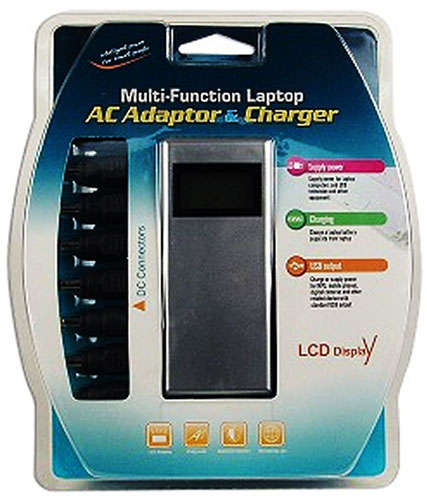

HIGH QUALITY MULTI-FUNCTION LAPTOP AC ADAPTOR & CHARGER (90W)
Features:
Input: AC 100-240V~ 1.8A 50-60Hz
Output: ADAPTOR:DC 9.5-22V 5A (MAX) 90W
CHARGER:DC 12.6V, 16.8V 3A
USB:DC 5V 1A (MAX) 5W
1.Charge laptop battery separate from laptop.
2.Supply power for laptop computers,LCD,televisions and other equipments
3.Charge or supply power for MP3, mobile phones , digital cameras , camcorders and other related devices with standard USB output.
4.LCD screen displays charging and power status with red and blue dual-colors.
5.19 exchangeable DC connectors for more than 100 models of laptops and LCD televisions.
6.Provides a wide range of output voltage:5V 9.5V 12V 14V 16V 18.5V 19V 19.5V 20V22V
7.Worldwide use with input between 100-240v.
8.With advanced MCU micro-computer chip control ,humanity design makes the operation much easier All the switches are automatic, such as switching to the indicated output voltage,switching to charging function, and indicating battery charging status:
9.100.000 level of anti-static design, high temperature and fire-proof crust makes is safer.
10.MTBF 5000H test and own its patent with more reliable quality warranty
11.Satety protection:over temperature protection reaches at 85'c,Over voltage protection reaches at 24V,Over current protection reaches at 6.5A ,and have Short circuit protection & charging time protection
HIGH QUAILTY ONE, RETAILS FOR OVER 449 IN SHOPS
Connectors Specification:
No.A
Output Voltage:19v
Range Voltage:18.2 - 19.5V
OutputCurrent(max):4.74A
Connectors Spec:4.8*1.7*10.7 mm DC-F
Replacement:HP/COMPAQ:(18.5V/2.7A, 18.5V/3.5A, 18.5V/3.8A, 18.5V/4.5A, 18.5V/4.9A)
DELTA:(19V/2.64A),ASUS:(19V/2.64A),NEC:(19V/2.64A) etc.
No.B
Output Voltage:15V
Range Voltage:14.2 - 15.5V
OutputCurrent(max):6A
Connectors Spec:6.3*3.0*10.7 mm
Replacement:TOSHIBA:(15V/3A,15V/4A,15V/5A,15V/6A,15V/8A) NEC:(15V/6A) etc.
No.C
O.Volt:19V
R.Volt:18.2 - 19.5V
O.Cur(max):4.74A
Con.Spec:5.5*2.1*10.7 mm DC-F
Rep:ACER:(19V/3.16A,19V/3.42A,19V/4.74A) LITEON:(19V/3.16A,19V/3.42A) NEC:(19V/3.16A) etc.
No.D
O.Volt:19V
R.Volt:18.2 - 19.5V
O.Cur(max):4.74A
Con.Spec:5.5*2.5*10.7 mm DC-F
Rep:IBM:(19v/4.2A) DELL:(19V/3.42A,19V/3.16A) DELTA:(19V/2.64A) COMPAQ/HP:(18.5V/4.9A,19V/4.9A)
ASUS:(19V/4.74A) LS:(20V/3.25A) TOSHIBA:(19V/3.16A,19V/3.42A,19V/4.74A)
LITEON:(19V/3.16A,19V/3.42A,19V/4.74A,19V/3.95A) NEC:(19V/2.64A,19V/3.16A) etc.
No.E
OutVol:16V
R.Volt:15.2 - 16.5V
O.Current(max):5A
Con.Spec:5.5*2.5*10.7 mm DC-F
Rep:IBM:(16V/2.2A,16V/3.36A,16V/3.5A,16V/4.5A) etc.
No.F
O.Volt:19V
R.Volt:18.2 - 19.5V
O.Cur(max):4.74A
Con.Spec:5.5*3.0*10.7 mm Pin 1.0
Rep:SAMSUNG:(19V/3.16A,19V/3.75A,19V/4.22A,19V/4.74A) etc.
No.G
O.Volt:16V
R.Volt:15.2 - 16.5V
O.Cur(max):5A
Con.Spec:6.0*4.3*10.7 mm Pin 1.0
Rep.:SONY:(16V/3.42A,16V/3.75A) FUJITSU:(16V/3.36A,16V/3.75A) etc.
No.H
O.Volt:19.5V
R.Volt:18.7 – 20.5V
O.Cur(max):4.5A
Con.Spec:6.0*4.3*10.7 mm Pin 1.0
Rep:SONY(19.5V/2.7A,19.5V/3A,19.5V/4.1A,19.5V/4.7A,19.5V/5.13A,19.5V/6.15A),FUJITSU(19V/3.16A,19V/3.69A,19V/4.22A)etc.
No.I
O.Vol:19V
R.Vol:18.2-19.5V
O.Cur(max):4.74A
Con.Spec:5.5*1.7*10.7 mm DC-F
Rep:TOSHIBA:(19V/3.95A)ACER:(19V/3.42A)DELTA:(20V/3.5A)etc
No.J
O.Vol:19.5V
R.Vol:18.7-20.OV
O.Curr(max):4.26A
Con.Spec:7.5*5.0*12.5mm pin0.6
Replacement: DELL:(19.5V/3.34A,19.5V/4.62A) etc
No.K
OVol:20V
R.Vol:19.2-20.5V
O.Cur(max):4.5A
Con.Spec:W7.3*7.4mm
Rep:DELL:(20V/3.5A,20V/4.5A) etc
No.K
O.Vol:20V
R.Vol:19.2-20.5V
O.Cur(max):4.5A
Con.Spec:W7.3*7.4mm
Rep:DELL:(20V/3.5A,20V/4.5A) etc
No.L
O.Vol:22V
R.Vol:21.2-22.5V
O.Curr(max):2.04A
Con.Spec:3.5*1.35*9.5mm
Rep:SHARP:(22V/1.8A,22V/2.04A) etc
No.M
O.Vol:20V
R.Vol:19.2-20.5V
O.Cur(max):4.5A
Con.Spec:7.9*12-9.5mm
Rep:IBM/LENOVO:(20V/4.5A,20V/3.25A) etc
No.Q
O.Vol:18.5V
R.Vol:17.7-19.0V
O.Cur(max):4.9A
Con.Spec:7.4*5.0*12.5mm PIN0.6
Rep:HP/COMPAQ:(18.5V/4.9A) etc
No.R
O.Vol:12V
R.Vol:11.2-12.5V
O.Cur(max):5A
Con.Spec:5.5*2.5*10.7mm DC-F
Rep:LCD
Please ask if you have any questions / doubts before bidding, If your bid without any questions, it will be assumed that you read all the contents and understand completely.
