Multi Function Network Cable Tester
Cable Tester & Wire Tracker General
Multipurpose network cable test & inspection instrument is the latest cable test & inspection instrument with lots of new functions researched and developed by our company.

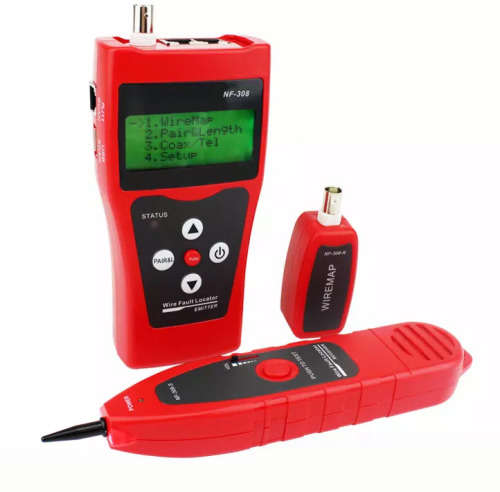

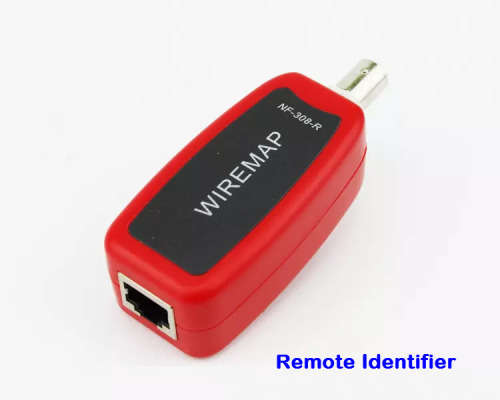

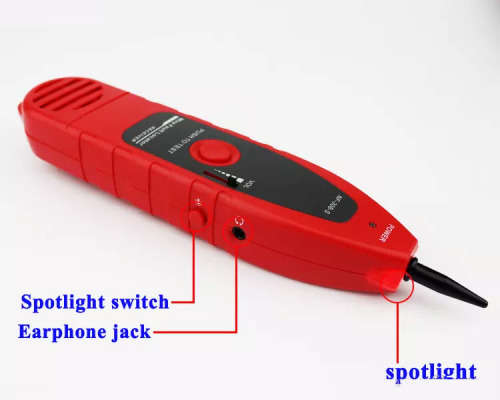

The equipment is composed of tester, receiver and remote identifier.
The new instrument is provided with fluent appearance, excellent hand feel and considerate human-centred design. It boasts three great functions of hunting, wire sorting and circuit status testing and the features of quickness and accuracy, thus, it becomes Tool of Choice for technicians in installation and maintenance of weak current system, such as, communication lines, comprehensive wiring circuit, etc. It is widely applicable to telephone system, computer network, other metal wire circuit and other fields.
Cable Tester & Wire Tracker Main functions and features
1. One person enough to complete cable continuity check.
2. Directly hunt 5E, 6E, telephone wire, coaxial cable, USB cable and other cables.
3. Check wiring error in 5E, 6E telephone line, coaxial cable, USB cable and such as open circuit, short circuit, jumper wire, reverse connection or cross-talk interference.
4. Locate the wiring or connection error.
5. Measure cable length and determine the distance f open circuit and short circuit.
6. Dynamically calibrate cable length and make length measurement as accurate as 97%.
7. Simple and use. Big screen to display test result clear.
8. Portable unit with long battery life (wait-case 50 hours)
9. Automatically time-delay shut off and backlight display function.
10. Measure length and pair with or without far-end recognizer.
11. Locate cable and there are 8 far-end passive test jacks (ID No. ID1-ID8).
12. Far-end recognizer with prompting voice.
13. Self-checking function and automatically compensate and change in battery capacity or ambient temperature.
14. Single board computer software watchdog design and reliable operation.
