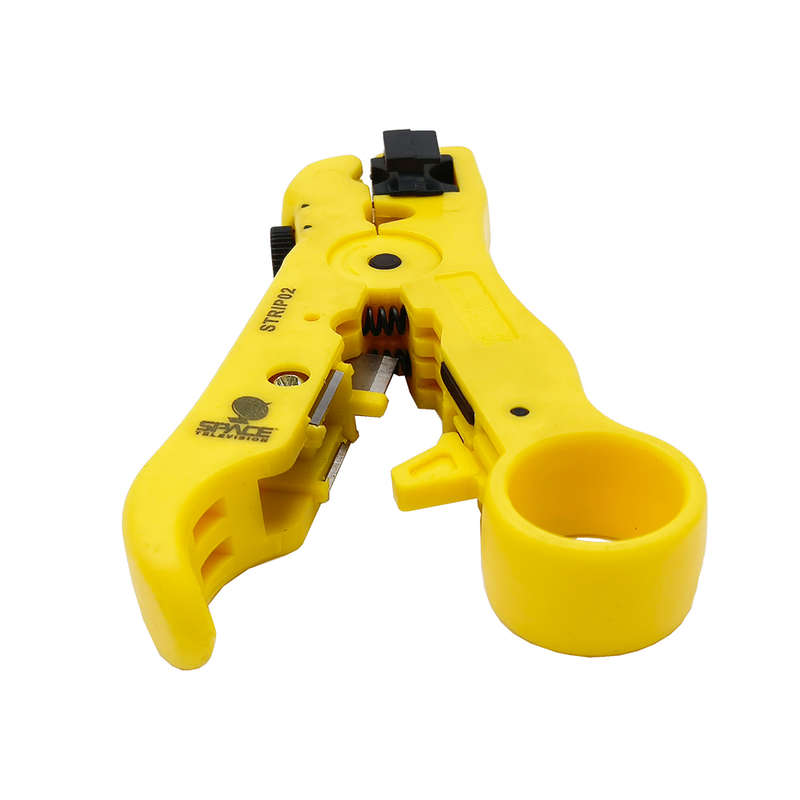

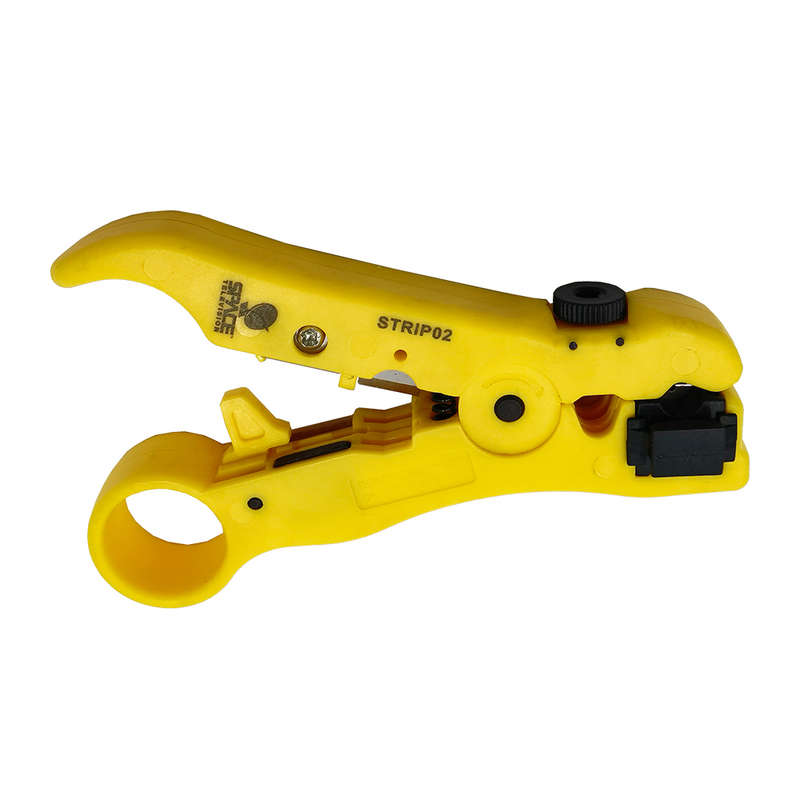

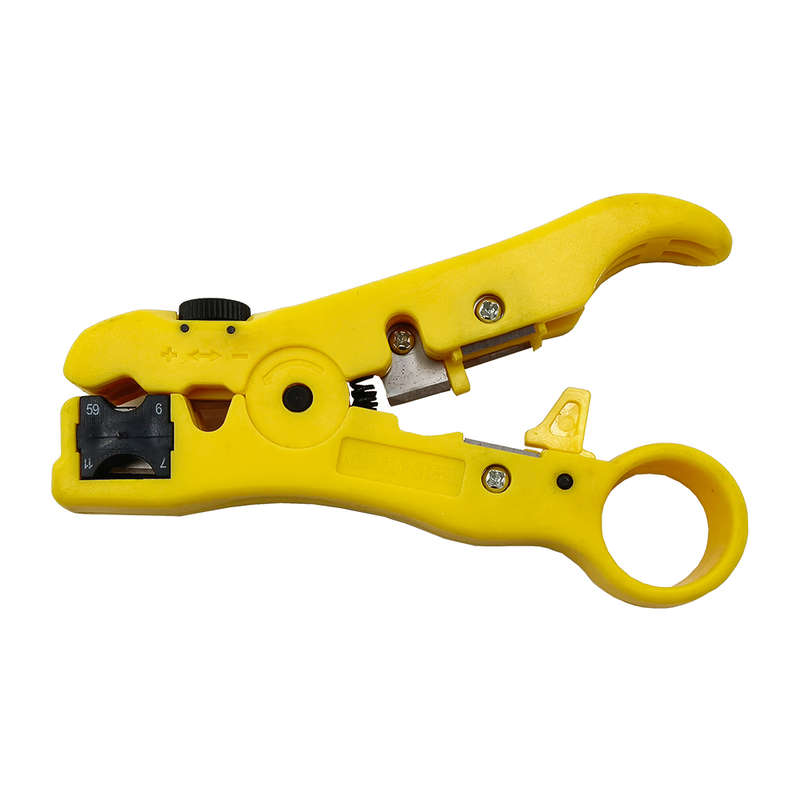

Coaxial Cable Stripper - STRIP02

UTP/STP cable and CAT.5 round telephone cable,RG59/6/11/7 cable stripper.Simply squeeze the tool to insert the cable, release and spin it using theextra-large finger hole.Made with 3 blades ensure accurate stripping length of each cable section.Built-in 3 screws for accurate depth-of-cut and blade adjustment.Fit Cable Size: RG59/RG6/RG11/RG7Cable Type: Coaxial cable, UTP/STP cable, Telephone round/flat cableMaterial: Plastic grip and metal KnivesBlade Material: SK-5Function: Stripping and CuttingFunction：1.Cassette is reversible: One side is available for RG59/6 and another side isfor RG7/11.2.For stripping coaxial cable:a.Insert the cable until it aligns with the cable guide.b.Insert your index finger into the stripper's finger ring.rotate the stripperby counter clockwise 3-5 times.The cable insulation is cut while you are turningthe stripper.c.Open the jaws and remove the cable.Pull away the outer jacket and dielectricto expose the inner conductor.d.Stripping distance is designed for 6mm.for each dielectric and inner conduct.3.For stripping round networking cable:a.Insert the cable into the second stripping hole.rotate 1-3 times at counterclockwise. and then open the jaw and remove the outer jacket.b.The black color adjusting knob is for adjusting the blade's depth.Turnclockwise for increasing the blade's depth and counter clockwise for reducingthe depth.4.For cutting coaxial cable,Round networking cable or flat telephone cable,placethe cable in position and then squeeze the handles.5.For stripping flat cable.Insert the cable between the stripper blades.Squeezehandles.Cable must be kept perpendicular and then pull from the tool.
