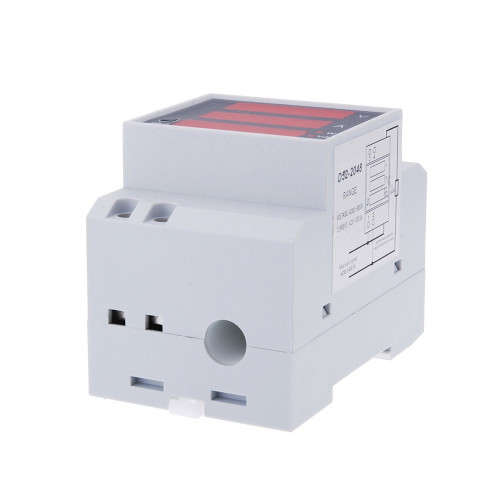

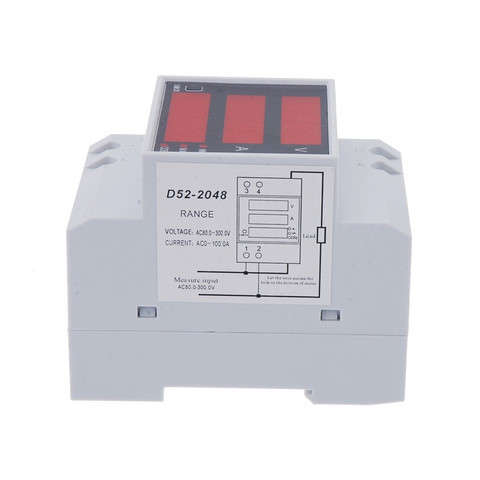

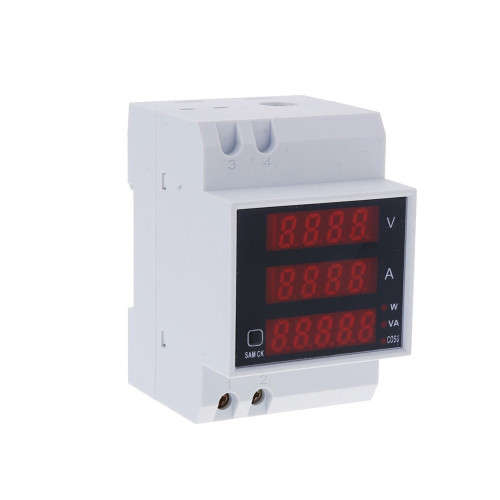

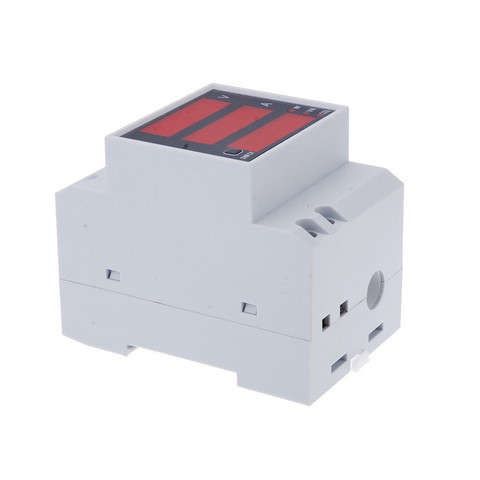

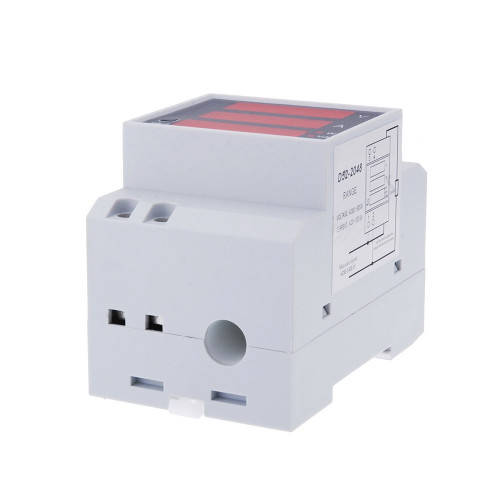

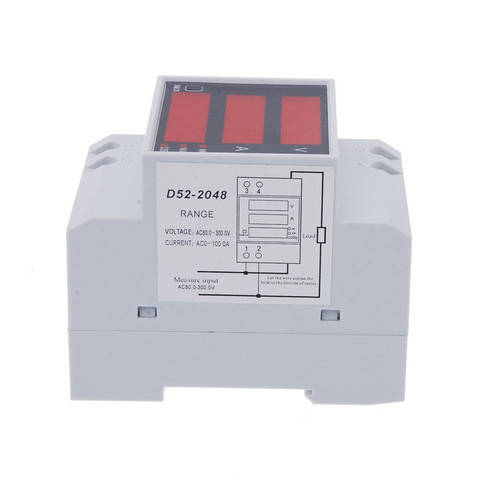

MULTI-FUNCTIONAL DIGITAL DIN RAIL CURRENT, VOLTAGE, POWER, AMMETER

 MULTI-FUNCTIONAL DIGITAL DIN RAIL CURRENT VOLTAGE POWER AMMETER VOLTMETER DISPLAY METER

Features:

Display the voltage, current and power simultaneously by LED digital tube.
Din-rail installation and easy measurement, just connect to power and lead the wire through the hole¿
Wide voltage and current measurement range.
Compatible with all electric appliances at home, allowing you to monitor their electric status at real time.
Help to remind you to turn off the high-power appliances, preventing safety problems and saving electricity.
Easy to install to a Din rail.
High accuracy, easy to use.
Made of high-grade ABS material, it is safe, reliable and durable.

Specifications¿
Material: ABS
 Accuracy:  1% , ±2 words
Displayer: AC voltage and current with 4-digial 0.31inches LED; active power, reactive power and power factor with 5-digial 0.31inches LED
Measurement range:  AC voltage 80.0-300.0V; AC current 0-100.0A; active power: AC voltage 80.0-300.0V: 0-30000W; reactive power: 80.0-300.0V: 0-30000VA; power factor: 1.000-0.000
Measurement speed: About 2 times per second
Installation width: = 3P (DZ47 / C45, air switch position)
Installation way: Din-rail (market universal din-rail, not included)
Product dimensions: 54 * 80 * 64mm / 2.1 * 3.1 * 2.5in
Product weight: 110g / 3.84oz
Package size: 8.7 * 6.1 * 7.2cm / 3.4 * 2.4 * 2.8in
Package weight: 133g / 4.69oz

Package List:
1 * Ammeter Voltmeter Power Meter
1 * User Manual(English)
