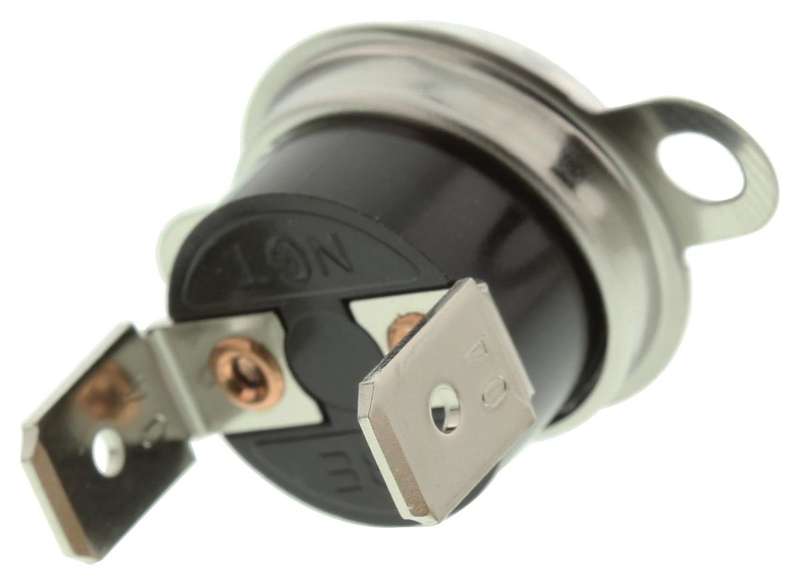

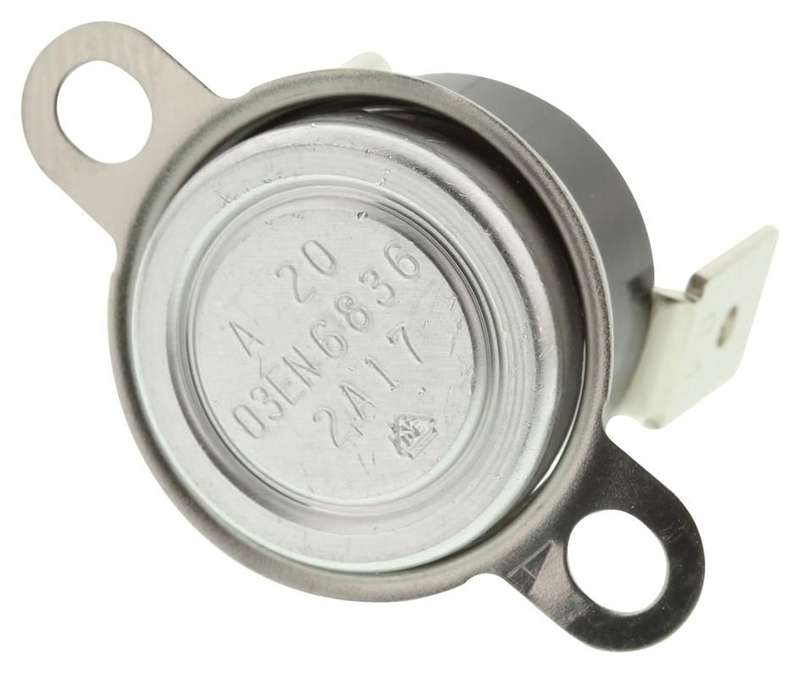

Multicomp Pro (03EN15T044(20/10)) Thermostat Switch, Thermal Cut Out

Thermostat Switch, Thermal Cut Out, 03EN Series, 20 °C, Normally Closed, FlangeMountProduct OverviewThe 03EN15T044(20/10) is a Thermal Switch with snap-action bi-metallic SPST-NCcontacts, plastic housing and brass terminals. This thermal cut-out thermostatfeatures automatic reset function, contacts are isolated from the mounting base,reset level is specified to within a close tolerance band and indication ofswitch temperature is given on base of switch.Switching cycles up to 100,000 cyclesSmall tolerances and hysteresis availableResponse temperatures from 0°C to 150°CRated current of 16A at 250VAC (cos ? 0.95 )Standard dielectric strength of 2KVAC6.3mm x 0.8mm terminalsSPST NC / NO contact configurationThermosetting plastic 12mm housingMoving bracket small and aluminium capProduct InformationSwitching Temperature: 20°CReset Temperature: 10°CContact Operation: Normally ClosedSensor Terminals: Quick ConnectSensor Housing: Flange MountContact Rating: 250VAC/10AProduct Range: 03EN Series
