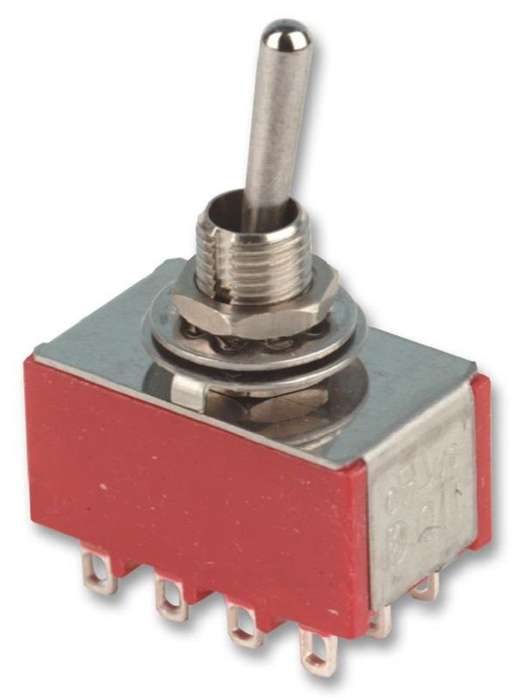

Multicomp Pro (1M41T1B1M1QE) Toggle Switch, On-On, 4PDT, Non Illuminated

Toggle Switch, On-On, 4PDT, Non Illuminated, 1M, Panel Mount, 5 AProduct InformationSwitch Operation: On-OnContact Configuration: 4PDTIllumination: Non IlluminatedProduct Range: 1MSwitch Mounting: Panel MountContact Current Max: 5AContact Voltage AC Nom: 250VSwitch Terminals: SolderContact Voltage DC Nom: 28VProduct OverviewThe 1M41T1B1M1QE is a four-pole double-throw (4PDT) miniature Toggle Switch withsolder lug termination, ON-NONE-ON function, 10.41-mm high chrome plated brassactuator, 8.89-mm high keyway (THD standard) nickel plated brass bushing. The1M41 series switch has silver plated contact, stainless steel housing and tinplated brass switch support.Epoxy seal10mR Maximum contact resistance1000MR Minimum insulation resistance1000Vrms at sea level Dielectric strength-30 to +85°C Operating temperature rangeApplicationsIndustrial
