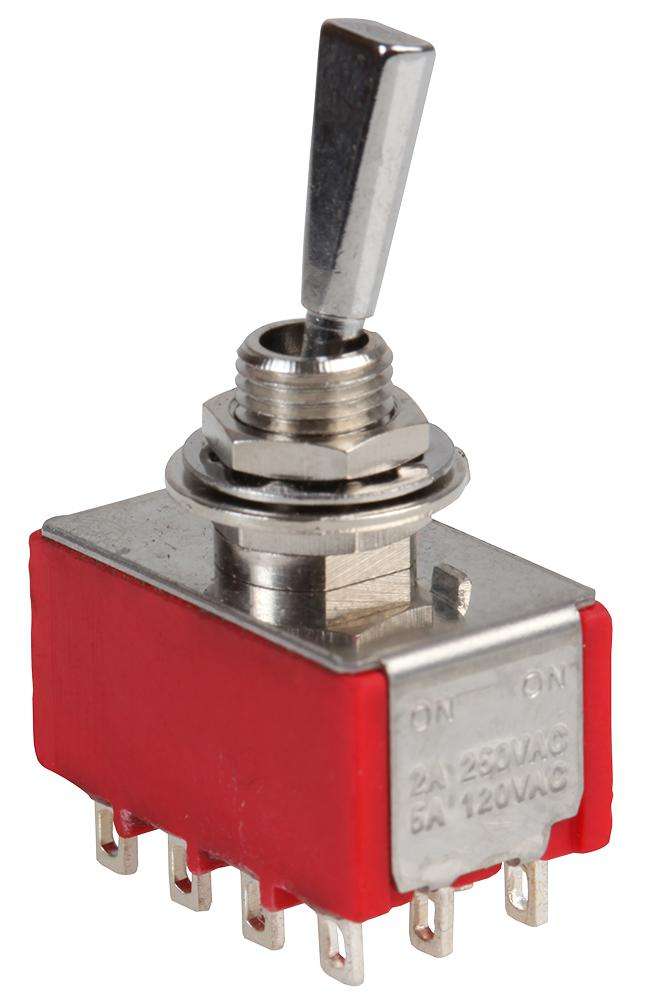

Multicomp Pro (1M41T6B11M1QE) Toggle Switch, On-None-On, 4PDT, 5 A

Toggle Switch, On-None-On, 4PDT, Non Illuminated, 1M, Panel Mount, 5 AProduct InformationSwitch Operation: On-None-OnContact Configuration: 4PDTIllumination: Non IlluminatedProduct Range: 1MSwitch Mounting: Panel MountContact Current Max: 5AContact Voltage AC Nom: 120VSwitch Terminals: Solder LugContact Voltage DC Nom: 28VProduct OverviewThe 1M41T6B11M1QE is a four-pole double-throw (4PDT) miniature Toggle Switchwith solder lug termination, ON-NONE-ON function, 12.3-mm high flattedanti-rotation chrome plated brass actuator and 7.55-mm high keyway (THDstandard) nickel plated brass bushing. The 1M31 series switch has silver platedcontact, stainless steel housing and tin plated brass switch support.Epoxy seal10mR Maximum contact resistance1000MR Minimum insulation resistance1000Vrms at sea level Dielectric strength-30 to +85°C Operating temperature rangeApplicationsIndustrial
