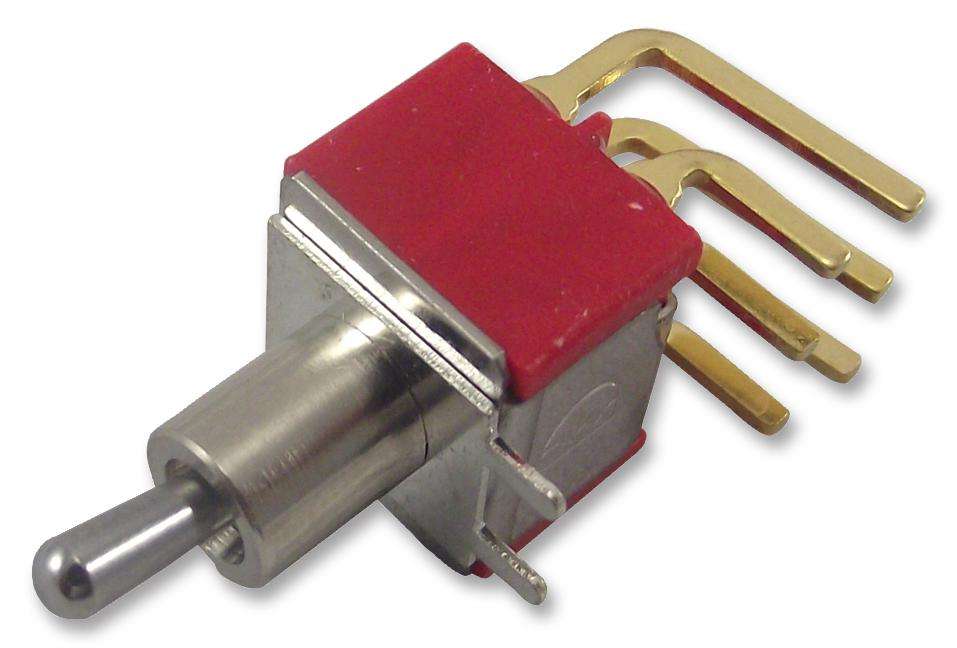

Multicomp Pro (1MD1T2B4M6RE) Toggle Switch, On-On, DPDT, Non Illuminated

Toggle Switch, On-On, DPDT, Non Illuminated, 1M, Through Hole, 100 mAProduct InformationSwitch Operation: On-OnContact Configuration: DPDTIllumination: Non IlluminatedProduct Range: 1MSwitch Mounting: Through HoleContact Current Max: 100mAContact Voltage AC Nom: 20VSwitch Terminals: SolderContact Voltage DC Nom: 20VProduct OverviewThe 1MD1T2B4M6RE is a double-pole double-throw (DPDT) horizontal miniatureToggle Switch with right angle PC through-hole termination, ON-NONE-ON function,5.08 mm high chrome plated brass actuator and 7.1 mm high keyway (non-THD)nickel plated brass bushing. The 1MD1 series switch has gold plated contact,stainless steel housing and tin plated brass switch support.Epoxy seal10mR Maximum contact resistance1000MR Minimum insulation resistance1000Vrms at sea level Dielectric strength-30 to +85°C Operating temperature rangeApplicationsIndustrial
