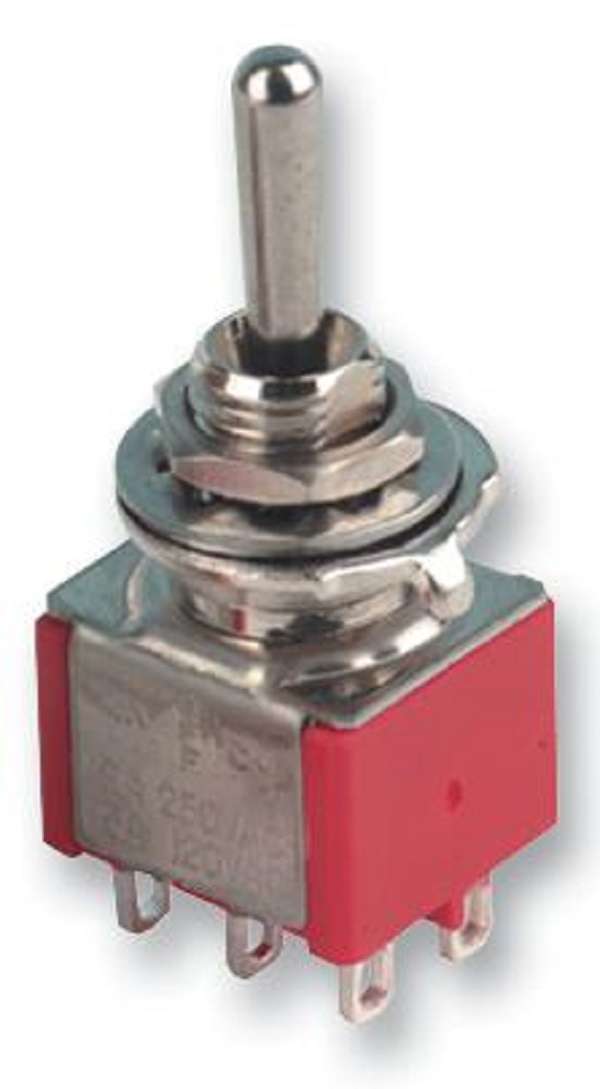

Multicomp Pro (1MD3T1B5M1QE) Toggle Switch, On-Off-On, DPDT

Toggle Switch, On-Off-On, DPDT, Non Illuminated, 1M, Panel Mount, 5 AProduct InformationSwitch Operation: On-Off-OnContact Configuration: DPDTIllumination: Non IlluminatedProduct Range: 1MSwitch Mounting: Panel MountContact Current Max: 5AContact Voltage AC Nom: 250VSwitch Terminals: SolderContact Voltage DC Nom: 28VProduct OverviewThe 1MD3T1B5M1QE is a double-pole double-throw (DPDT) miniature Toggle Switchwith solder lug termination, ON-OFF-ON function, 10.41 mm high chrome platedbrass actuator and 7.52 mm high flat (torque) nickel plated brass bushing. The1MD3 series switch has silver plated contact, stainless steel housing and tinplated brass switch support.Epoxy seal10mR Maximum contact resistance1000MR Minimum insulation resistance1000Vrms at sea level Dielectric strength-30 to +85°C Operating temperature rangeApplicationsIndustrial
