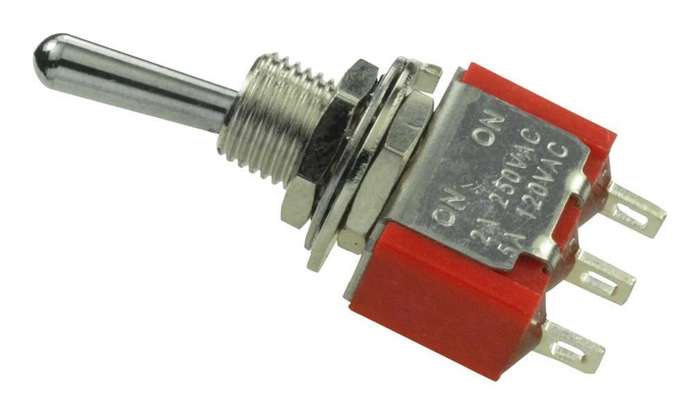

Multicomp Pro (1MS1T1B1M1RE) Toggle Switch, On-On, SPDT, Non Illuminated

Toggle Switch, On-On, SPDT, Non Illuminated, 1M, Panel Mount, 2 AProduct InformationSwitch Operation: On-OnContact Configuration: SPDTIllumination: Non IlluminatedProduct Range: 1MSwitch Mounting: Panel MountContact Current Max: 2AContact Voltage AC Nom: 250VSwitch Terminals: SolderContact Voltage DC Nom: -Product OverviewThe 1MS1T1B1M1RE is a single-pole double-throw (SPDT) miniature Toggle Switchwith solder lug termination, ON-NONE-ON function, 10.41 mm high chrome platedbrass actuator and 8.81 mm high keyway (THD standard) nickel plated brassbushing. The 1MS1 series switch has gold plated contact, stainless steel housingand tin plated brass switch support.Epoxy seal10mR Maximum contact resistance1000MR Minimum insulation resistance1000Vrms at sea level Dielectric strength-30 to +85°C Operating temperature rangeApplicationsIndustrial
