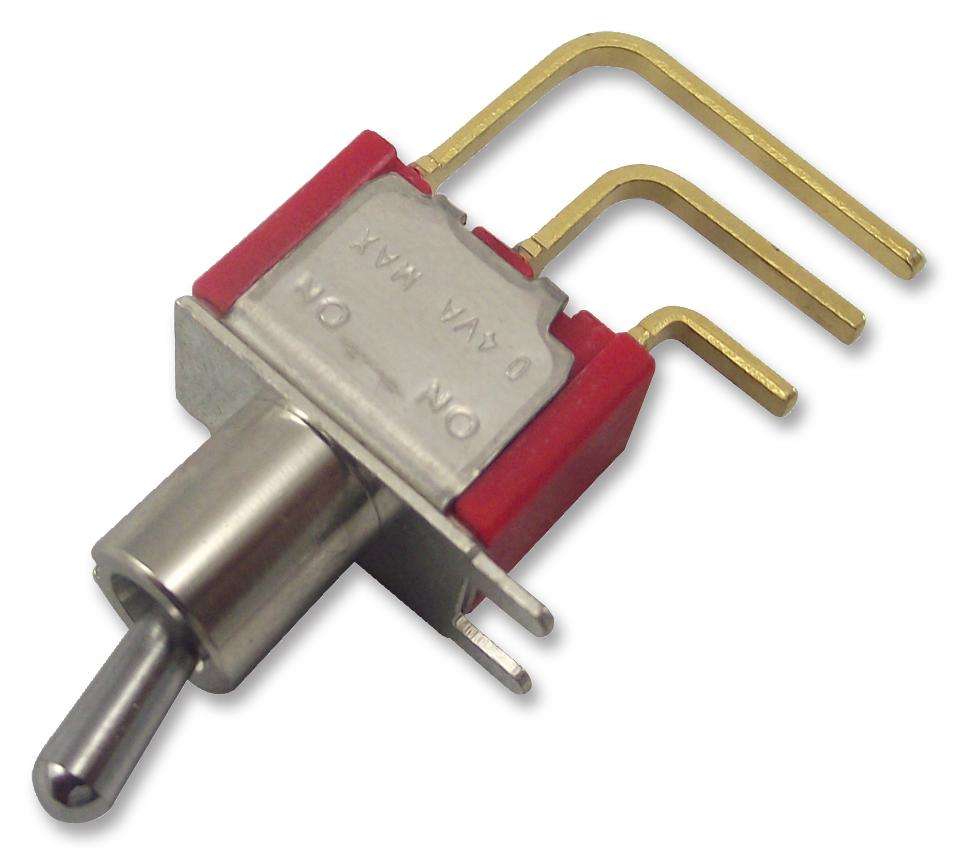

Multicomp Pro (1MS1T2B4M7RE) Toggle Switch, Miniature, On-On, SPDT,

Toggle Switch, Miniature, On-On, SPDT, Non Illuminated, 20 VDC, 100 mA, THProduct InformationSwitch Operation: On-OnContact Configuration: SPDTIllumination: Non IlluminatedProduct Range: 1MSwitch Mounting: Through HoleContact Current Max: 100mAContact Voltage AC Nom: 20VSwitch Terminals: SolderContact Voltage DC Nom: 20VProduct OverviewThe 1MS1T2B4M7RE is a single-pole double-throw miniature Toggle Switch withvertical right angle, PC through-hole terminations, On-None-On operation, 5.08mmhigh actuator, 7.10mm high, keyway bushing, gold contact, epoxy seal,diallylphthalate (DAP) case, chrome-plated brass actuator, nickel-plated brassbushing, stainless steel housing and tin-plated brass switch support.10mR Maximum contact resistance1000MR Minimum insulation resistance1000VRMS at sea level Dielectric strength-30 to 85°C Operating temperature rangeApplicationsIndustrial
