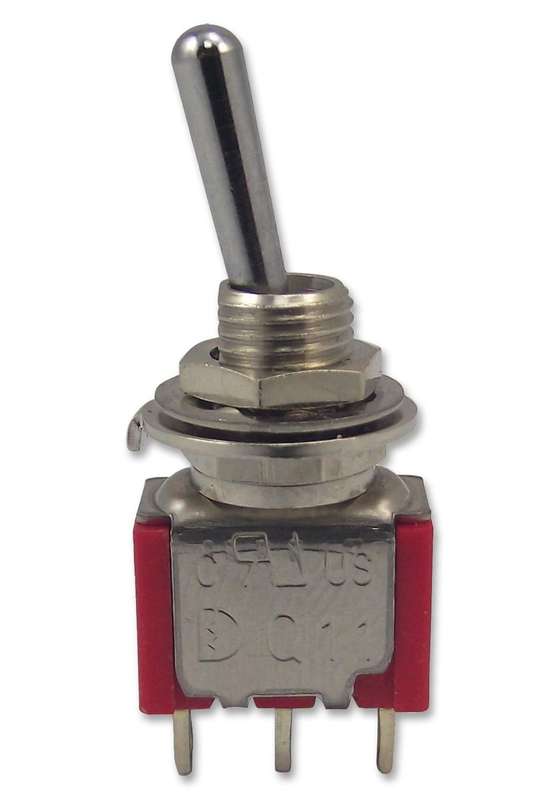

Multicomp Pro (1MS2T1B5M1QE) Toggle Switch, On-(On), SPDT, Non Illuminated

Toggle Switch, On-(On), SPDT, Non Illuminated, 1M, Panel Mount, 5 AProduct InformationSwitch Operation: On-(On)Contact Configuration: SPDTIllumination: Non IlluminatedProduct Range: 1MSwitch Mounting: Panel MountContact Current Max: 5AContact Voltage AC Nom: 120VSwitch Terminals: SolderContact Voltage DC Nom: 28VProduct OverviewThe 1MS2T1B5M1QE is a single-pole double-throw (SPDT) miniature Toggle Switchwith solder lug termination, ON-NONE-Momentary function, 10.41mm high chromeplated brass actuator and 7.52mm high flat (torque) nickel plated brass bushing.The 1MS2 series switch has silver plated contact, stainless steel housing andtin plated brass switch support.Epoxy seal10mR Maximum contact resistance1000MR Minimum insulation resistance1000Vrms at sea level Dielectric strength-30 to +85°C Operating temperature rangeApplicationsIndustrial
