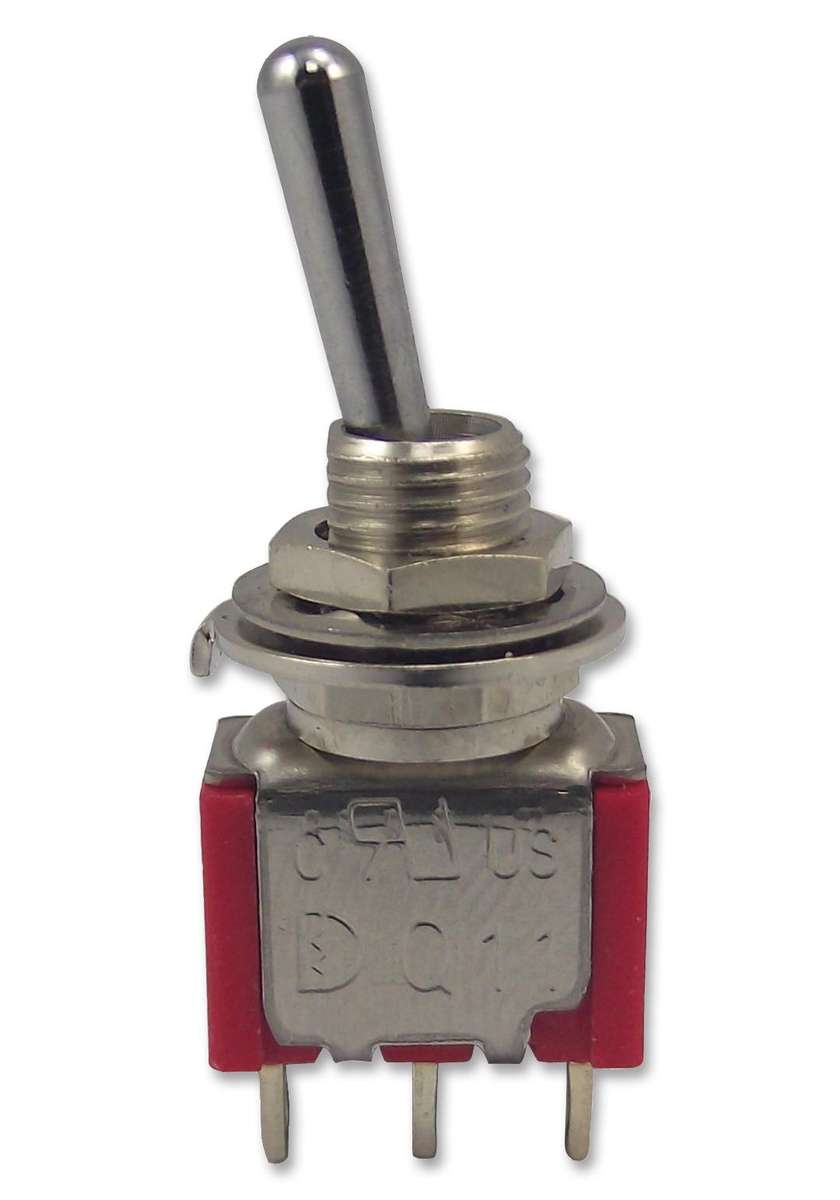

Multicomp Pro (1MS3T1B5M1QE) Toggle Switch, On-Off-On, , 5 A

Toggle Switch, On-Off-On, SPDT, Non Illuminated, 1M, Panel Mount, 5 AProduct InformationSwitch Operation: On-Off-OnContact Configuration: SPDTIllumination: Non IlluminatedProduct Range: 1MSwitch Mounting: Panel MountContact Current Max: 5AContact Voltage AC Nom: 120VSwitch Terminals: SolderContact Voltage DC Nom: 28VProduct OverviewThe 1MS3T1B5M1QE from Multicomp Pro is a miniature toggle switch. This singlepole switch has mechanical life of 40,000 make-and-break cycles.Maximum contact resistance is 10mohm initial at 2-4VDC, 100mASPDT contact configurationOperating temperature range from -30°C to 85°CMinimum insulation resistance is 1000MohmContact rating is 5A at 120VAC or 28VDC, 2A at 250VACOn-Off-On switch operationChrome plated brass actuator and nickel plated brass bushingStainless steel housing, silver plated contactsActuator height is 10.41mm7.52mm height flat (torque) bushing, solder lug terminationApplicationsIndustrial, Power Management, Automation & Process Control
