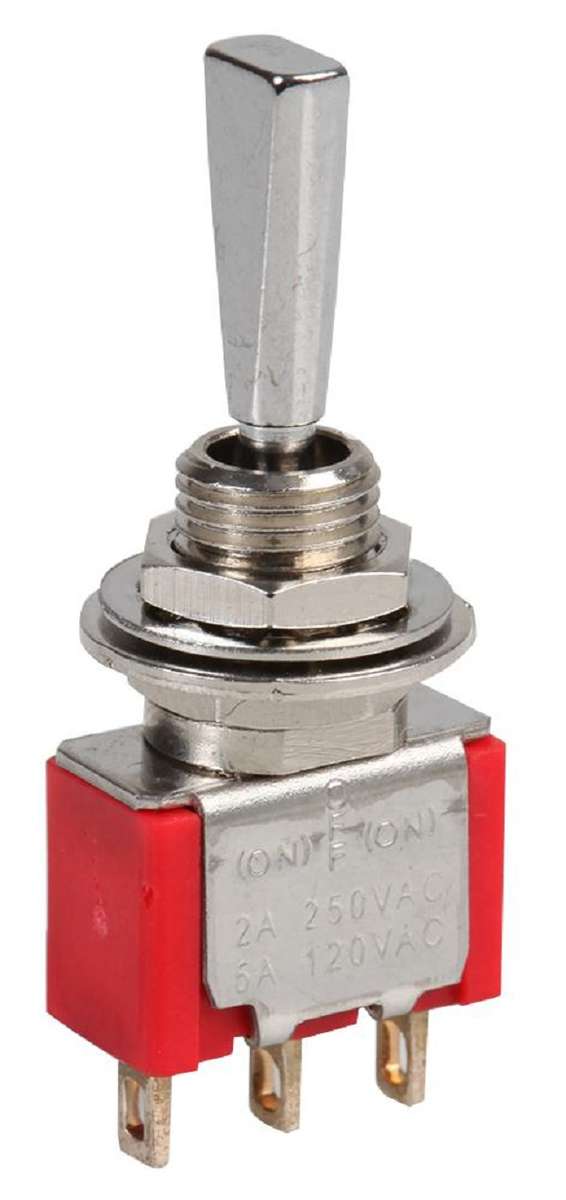

Multicomp Pro (1MS4T6B11M1QE) Toggle Switch, (On)-Off-(On), SPDT, 5 A

Toggle Switch, (On)-Off-(On), SPDT, Non Illuminated, 1M, Panel Mount, 5 AProduct InformationSwitch Operation: (On)-Off-(On)Contact Configuration: SPDTIllumination: Non IlluminatedProduct Range: 1MSwitch Mounting: Panel MountContact Current Max: 5AContact Voltage AC Nom: 120VSwitch Terminals: SolderContact Voltage DC Nom: 125VProduct OverviewThe 1MS4T6B11M1QE is a single-pole double-throw (SPDT) miniature Toggle Switchwith silver plated contacts and chrome plated brass actuator. This 1MS4 seriestoggle switch features solder lug terminals, nickel plated brass bushing,stainless steel housing, diallyl phthalate (DAP) (UL94V-0) case and standardepoxy seal.40000 make-and-break cycles Mechanical life10mR Maximum contact resistance1000MR Minimum insulation resistance1000VRMS at sea level Dielectric strength-30 to 85°C Operating temperature rangeApplicationsIndustrial
