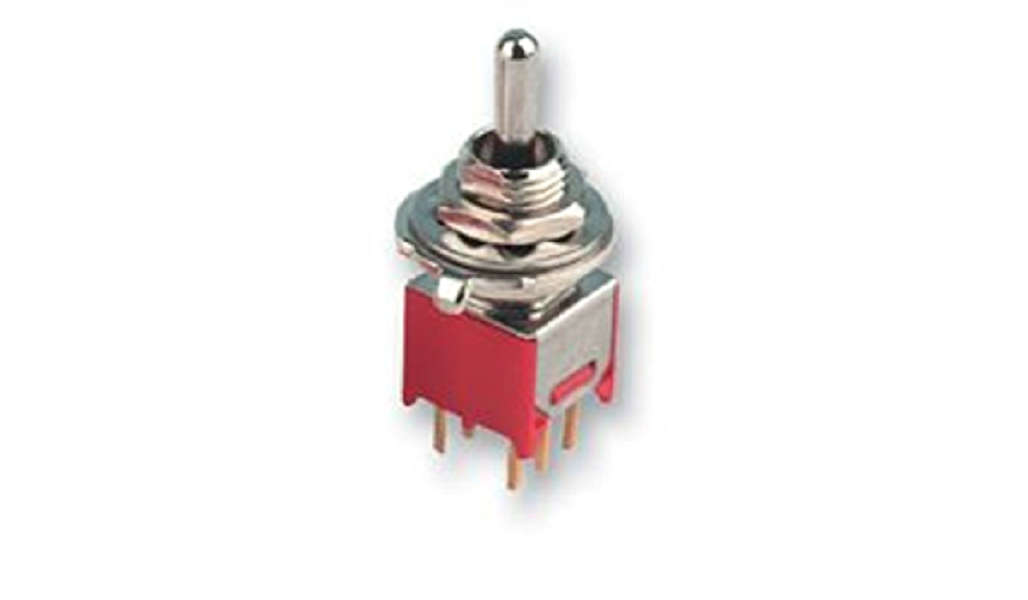

Multicomp Pro (2MD1T1B5M2RE) Toggle Switch, On-On, DPDT, Non Illuminated

Toggle Switch, On-On, DPDT, Non Illuminated, 2M, Through Hole, 100 mAProduct InformationSwitch Operation: On-OnContact Configuration: DPDTIllumination: Non IlluminatedProduct Range: 2MSwitch Mounting: Through HoleContact Current Max: 100mAContact Voltage AC Nom: 20VSwitch Terminals: SolderContact Voltage DC Nom: 20VProduct OverviewThe 2MD1T1B5M2RE is a double-pole double-throw sub-miniature Toggle Switch withPC thru-hole terminations, On-None-On operation, 9.4mm high actuator, 7.87mmhigh, flat (THD) bushing, gold contact, epoxy seal, diallylphthalate (DAP) case,chrome-plated brass actuator, nickel-plated brass bushing, stainless steelhousing and tin-plated brass switch support20mR at 2 to 4VDC/100mA Maximum initial contact resistance1000MR Minimum insulation resistance1000VRMS at sea level Dielectric strength-30 to 85°C Operating temperature rangeApplicationsIndustrial
