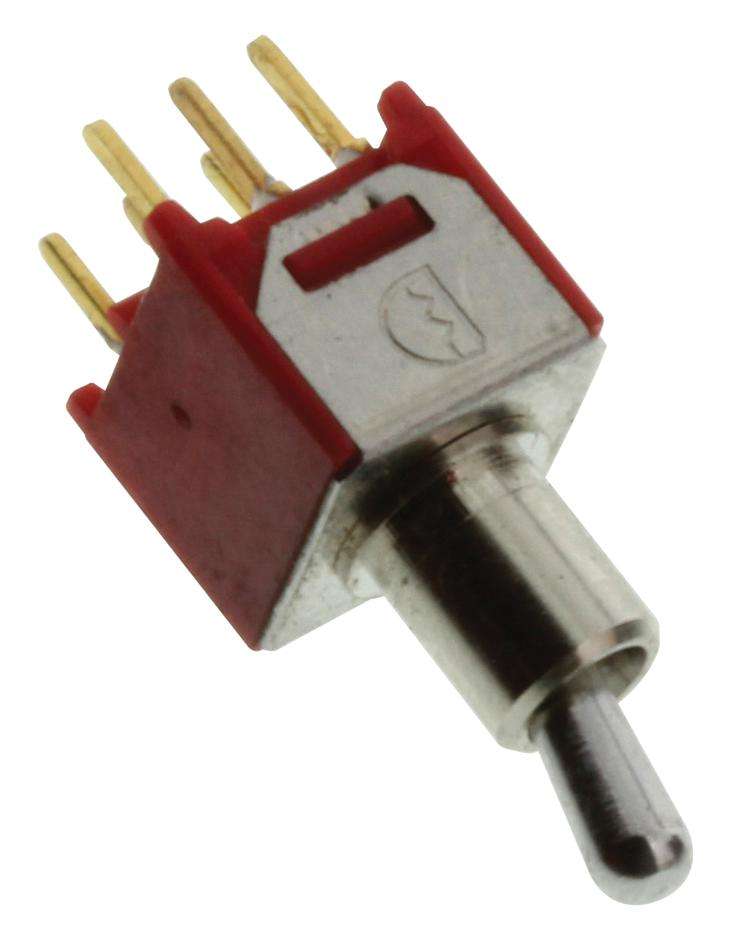

Multicomp Pro (2MD1T2B2M2RE) Toggle Switch, On-On, DPDT, Non Illuminated

Toggle Switch, On-On, DPDT, Non Illuminated, 2M, Through Hole, 100 mAProduct InformationSwitch Operation: On-OnContact Configuration: DPDTIllumination: Non IlluminatedProduct Range: 2MSwitch Mounting: Through HoleContact Current Max: 100mAContact Voltage AC Nom: 20VSwitch Terminals: SolderContact Voltage DC Nom: 20VProduct OverviewThe 2MD1T2B2M2RE is a double-pole double-throw (DPDT) subminiature Toggle Switchwith PC through-hole termination, ON-NONE-ON function, 5.33 mm high chromeplated brass actuator and 5.59 mm high flat nickel plated brass bushing(non-THD). The 2MD series switch has stainless steel housing and tin platedbrass switch support.Epoxy seal (standard)20mR at 2 to 4VDC 100mA Maximum initial contact resistance1000MR Minimum insulation resistance1000Vrms at sea level Dielectric strength-30 to +85°C Operating temperature rangeApplicationsIndustrial
