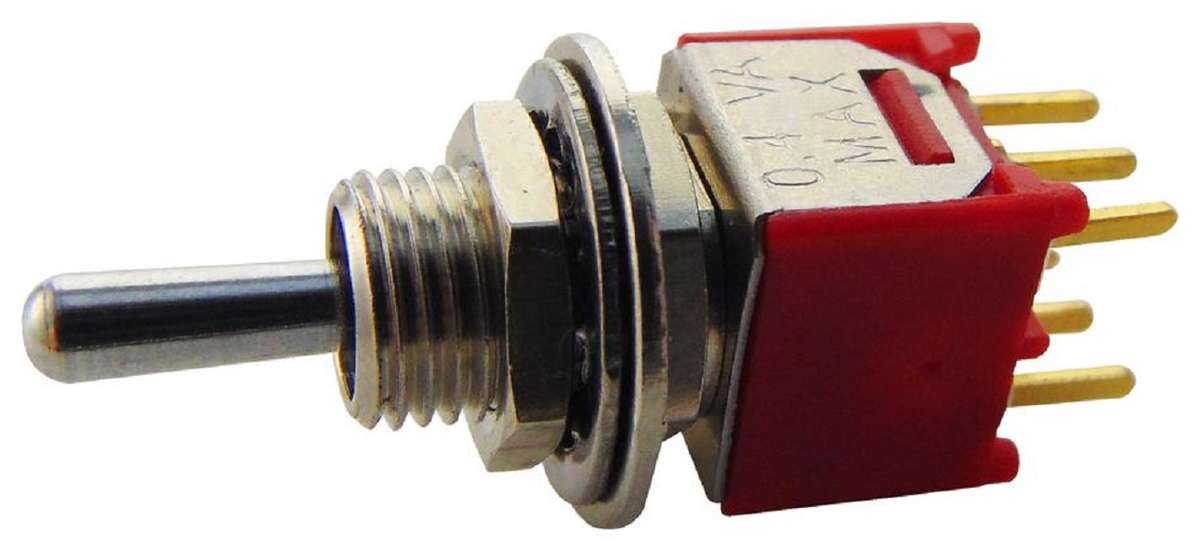

Multicomp Pro (2MD6T1B5M2RE) Toggle Switch, On-On-On, DPDT, Non Illuminated

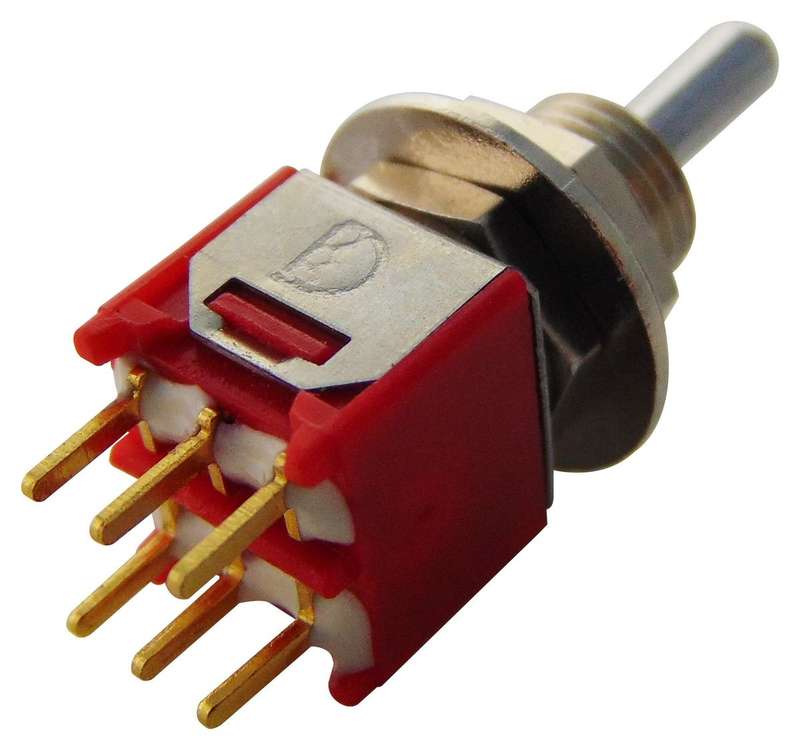

Toggle Switch, On-On-On, DPDT, Non Illuminated, 2M, Through Hole, 100 mAProduct InformationSwitch Operation: On-On-OnContact Configuration: DPDTIllumination: Non IlluminatedProduct Range: 2MSwitch Mounting: Through HoleContact Current Max: 100mAContact Voltage AC Nom: 20VSwitch Terminals: SolderContact Voltage DC Nom: 20VProduct OverviewThe 2MD6T1B5M2RE is a double-pole double-throw (DPDT) subminiature Toggle Switchwith PVC through-hole termination, ON-ON-ON function, 5.33 mm high chrome platedbrass actuator and 5.59 mm high flat nickel plated brass bushing (THD). The 2MDseries switch has stainless steel housing and tin plated brass switch support.Epoxy seal (standard)20mR at 2 to 4VDC 100mA Maximum initial contact resistance1000MR Minimum insulation resistance1000Vrms at sea level Dielectric strength-30 to +85°C Operating temperature rangeApplicationsIndustrial
