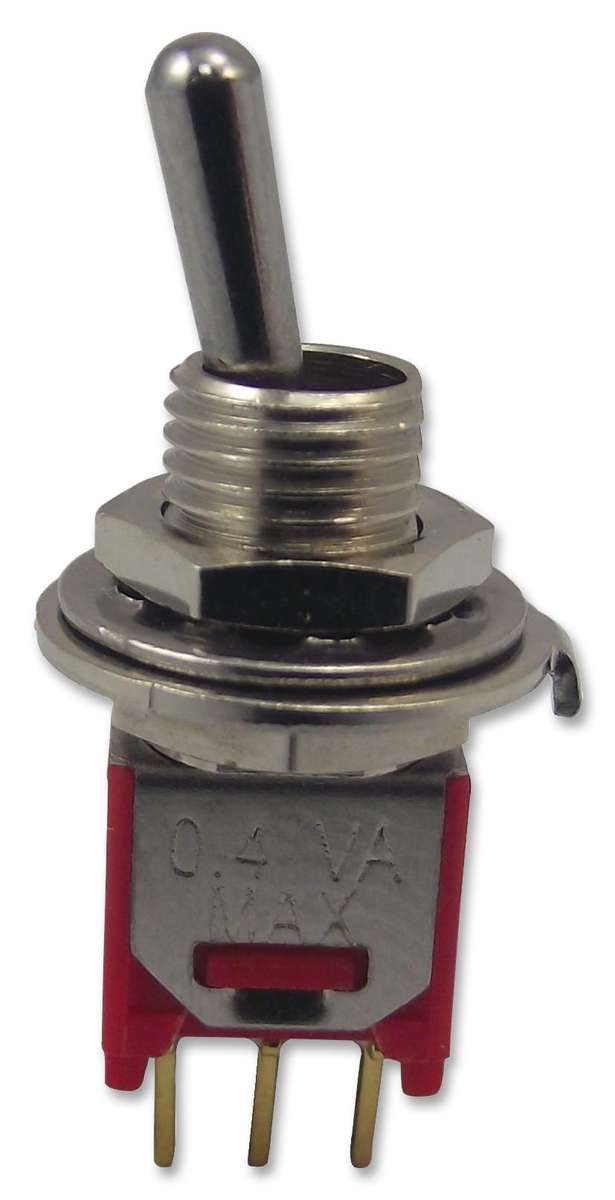

Multicomp Pro (2MS1T1B5M2RE) Toggle Switch, On-On, SPDT, Non Illuminated

Multicomp Pro (2MS1T1B5M2RE) Toggle Switch, On-On, SPDT, Non Illuminated

New 1791 available
R199.00
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 7 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Buyer protection
Get it now, pay later

Product details

Condition
New
Location
South Africa
Product code
9473041
Bob Shop ID
674502669
Toggle Switch, On-On, SPDT, Non Illuminated, 2M, Through Hole, 100 mAProduct InformationSwitch Operation: On-OnContact Configuration: SPDTIllumination: Non IlluminatedProduct Range: 2MSwitch Mounting: Through HoleContact Current Max: 100mAContact Voltage AC Nom: 20VSwitch Terminals: SolderContact Voltage DC Nom: 20VProduct OverviewThe 2MS1T1B5M2RE from Multicomp Pro is a sub miniature toggle switch. Thissingle pole switch has mechanical life of 30,000 make-and-break cycles.Maximum contact resistance is 20mohm initial at 2 to 4VDC, 100mASPDT contact configurationOperating temperature range from -30°C to 85°CMinimum insulation resistance is 1000MohmContact rating is 0.4VA maximum at 20V maximum (AC or DC)On-On switch operation9.4mm height chrome plated brass actuator and nickel plated brass bushingStainless steel housingGold plated contacts7.87mm height flat (THD) bushing, PC thru-hole terminationApplicationsIndustrial, Power Management, Automation & Process Control
