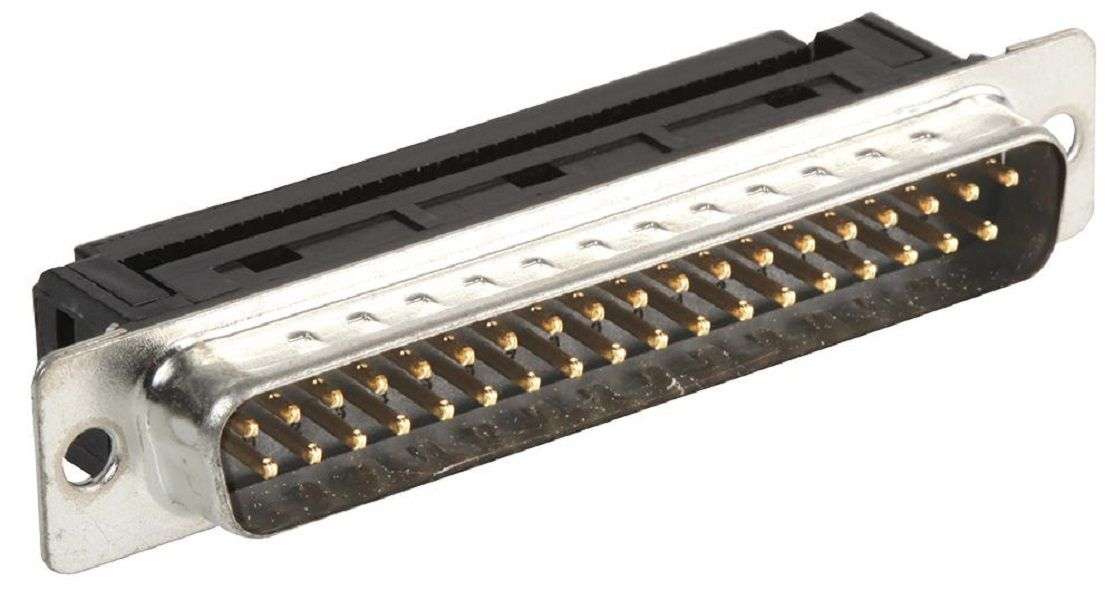

Multicomp Pro (8FSM37P-30N1-FEC) D Sub Connector, Plug, 8F, 37 Contacts

D Sub Connector, Plug, 8F, 37 Contacts, DC, IDC / IDTProduct OverviewThe 8FSM37P-30N1-FEC is a 37-way 1A metal unthreaded IDC D-subminiature Plugwith gold over nickel plated brass contacts. This 8FSM series maleD-subminiature connector has plastic standard through hole housing and PBT +glass-fibre reinforced insulator. It accepts 28 and 26AWG stranded wire gauge,1.27mm conductor centre flat cable.15mR Maximum contact resistance1000MR Minimum insulation resistance500VAC for one minute Minimum dielectric withstanding voltage-55 to 105°C Operating temperature rangeApplicationsIndustrial, Communications & NetworkingProduct InformationD Sub Connector Type: StandardGender: Plug (View Associated Connectors)Product Range: 8FNo. of Contacts: 37ContactsD Sub Shell Size: DCContact Termination Type: IDC / IDTConnector Mounting: Cable MountContact Material: BrassContact Plating: Gold over Nickel Plated ContactsConnector Body Material: Metal Body
