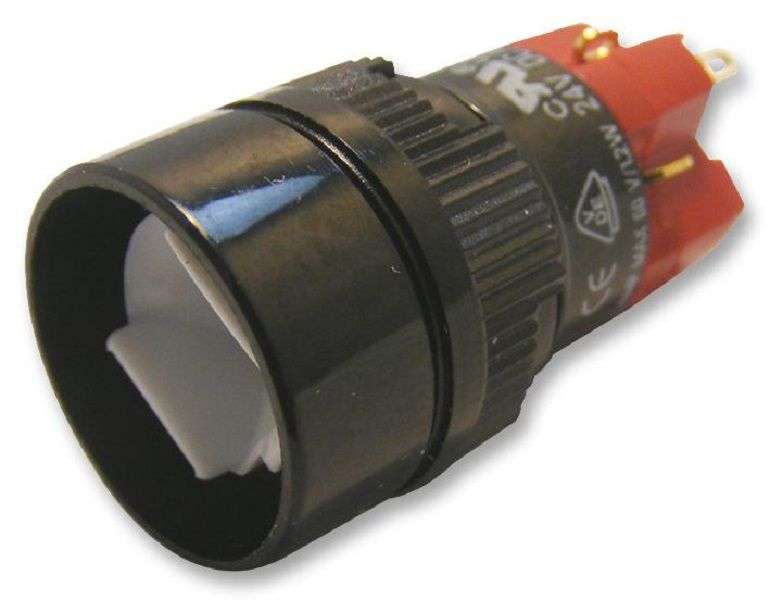

Multicomp Pro (D16-LAR1-1AB) Industrial Pushbutton Switch, 16 mm

Industrial Pushbutton Switch, 16 mm, SPST-NO, SPST-NC, On-Off, RoundProduct InformationPushbutton Switch Type: IndustrialSwitch Operation: On-OffProduct Range: -Panel Cutout Diameter: 16mmContact Configuration: SPST-NO, SPST-NCPushbutton Actuator Style: RoundIP Rating: -Actuator / Cap Colour: -Contact Current Max: 8AContact Voltage AC Nom: 250VContact Current AC Max: 8AContact Voltage VAC: 125VContact Voltage DC Nom: 24VContact Current DC Max: 6AContact Voltage VDC: 24VSwitch Mounting: Panel MountSwitch Terminals: SolderIllumination Colour: Non IlluminatedPanel Cutout (H x W): -Product OverviewThe D16-LAR1-1AB is a single-pole double-throw (SPDT) 16mm latching PushbuttonSwitch with solder terminal, round head and 1NO + 1NC contacts. The 16 seriesswitch has high-grade temperature thermoplastic body. The contact is made fromsoldering type-silver is standard and socket type-pin with golden plating.Contact housing is moulded in electrical high-grade thermosetting plastic. Eachcontact block has one double break snap action switching mechanism.Alternate action switch mode2 million operations Mechanical lifetimeSilver contacts3mm Operating travel2 to 5N Actuating force depending on number of contact block
